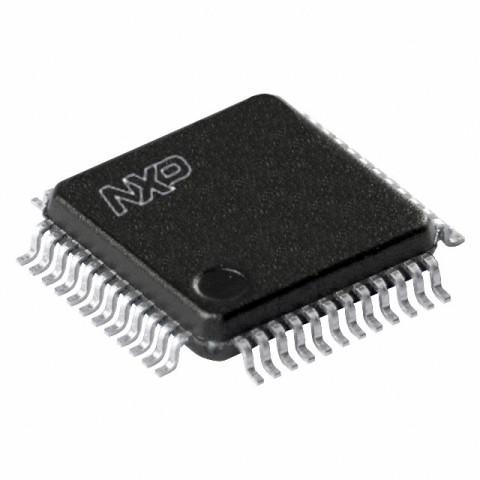

LPC2106BBD48 LQFP40 MCU ARM7 60MHz
Art nr: 40362106
NXP - LPC2106FBD48/01,15
Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se
Produktbeskrivning
Produktbeskrivning
Enchips mikroprocessor baserad på ARM7-kärna.
Key features
16/32 bit ARM7TDMI-S processor. 64 kB on-chip Static RAM. 128 kB on-chip Flash Program Memory. 128 bit wide interface/accelerator enables high speed 60 MHz operation. In-System Programming (ISP) and In-Application Programming (IAP) via on-chip boot-loader software. Flash programming takes 1 ms per 512 byte line. Single sector or full chip erase takes 400 ms. Vectored Interrupt Controller with configurable priorities and vector addresses. EmbeddedICE-RT interface enables breakpoints and watch points. Interrupt service routines can continue to execute whilst the foreground task is debugged with the on-chip RealMonitor software. Embedded Trace Macrocell enables non-intrusive high speed real-time tracing of instruction execution. Multiple serial interfaces including two UARTs (16C550), Fast I²C (400 kbits/s) and SPI. Two 32-bit timers (7 capture/compare channels), PWM unit (6 outputs), Real Time Clock and Watchdog. Up to thirty-two 5 V tolerant general purpose I/O pins in a tiny LQFP48 (7 x 7 mm2) package. 60 MHz maximum CPU clock available from programmable on-chip Phase-Locked Loop with settling time of 100 us. On-chip crystal oscillator with an operating range of 1 MHz to 30 MHz. Two low power modes, Idle and Power-down. Processor wake-up from Power-down mode via external interrupt. Individual enable/disable of peripheral functions for power optimization. Dual power supply: CPU operating voltage range of 1.65 V to 1.95 V (1.8 V +- 8.3 pct.). I/O power supply range of 3.0 V to 3.6 V (3.3 V +- 10 pct.) with 5 V tolerant I/O pads.
Tillverkare: Philips
Key features
16/32 bit ARM7TDMI-S processor. 64 kB on-chip Static RAM. 128 kB on-chip Flash Program Memory. 128 bit wide interface/accelerator enables high speed 60 MHz operation. In-System Programming (ISP) and In-Application Programming (IAP) via on-chip boot-loader software. Flash programming takes 1 ms per 512 byte line. Single sector or full chip erase takes 400 ms. Vectored Interrupt Controller with configurable priorities and vector addresses. EmbeddedICE-RT interface enables breakpoints and watch points. Interrupt service routines can continue to execute whilst the foreground task is debugged with the on-chip RealMonitor software. Embedded Trace Macrocell enables non-intrusive high speed real-time tracing of instruction execution. Multiple serial interfaces including two UARTs (16C550), Fast I²C (400 kbits/s) and SPI. Two 32-bit timers (7 capture/compare channels), PWM unit (6 outputs), Real Time Clock and Watchdog. Up to thirty-two 5 V tolerant general purpose I/O pins in a tiny LQFP48 (7 x 7 mm2) package. 60 MHz maximum CPU clock available from programmable on-chip Phase-Locked Loop with settling time of 100 us. On-chip crystal oscillator with an operating range of 1 MHz to 30 MHz. Two low power modes, Idle and Power-down. Processor wake-up from Power-down mode via external interrupt. Individual enable/disable of peripheral functions for power optimization. Dual power supply: CPU operating voltage range of 1.65 V to 1.95 V (1.8 V +- 8.3 pct.). I/O power supply range of 3.0 V to 3.6 V (3.3 V +- 10 pct.) with 5 V tolerant I/O pads.
Tillverkare: Philips
Dokument
Egenskaper
Attribut | Värde |
---|---|
Arkitektur
|
32-bit
|
Kapsel
|
LQFP-40
|
Klocka
|
60 MHz
|
Familj
|
ARM
|
Flash
|
128
|
GPIO
|
32
|
I2C
|
1
|
PWM
|
6
|
RAM
|
64
|
SPI
|
1
|
Matningsspänning (max)
|
3.6 V
|
Matningsspänning (min)
|
3 V
|
Timers
|
2
|
UART
|
2
|
SKU:
40362106MPN:
LPC2106FBD48/01,15
