Produktbeskrivning
Portable compact unit. Small handle with matching soldering head for better handing during repair. Large range of linear temperature adjustment.
Package content:

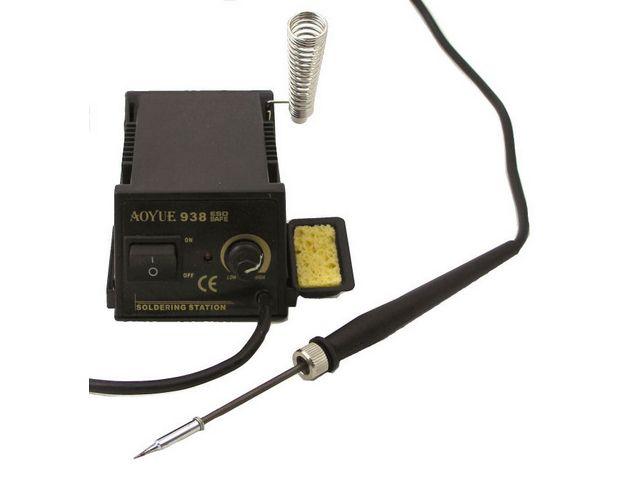

938 station, B006 Soldering iron, 201494 Soldering iron holder, 30179X Sponge, 201502 Sponge tray, H012 Ceramic pad.
SPECIFICATIONS:
Power Input : 220V
Power Consumption: 15W
Temperature Range: 50 - 330 degrees Celsius
Heating Element: Ceramic Heater
Output Voltage: 24V
Tip to Ground Resistance Below 2 ohms
Tip to Ground Potential: Below 2mV
Station Dimensions: 72(w) x 57(h) x 85(d) mm
Weight: 1Kg
Replacement Parts Code/Accessories:
C003 Soldering Iron Heating Element
T-938 Soldering Iron Tip only
