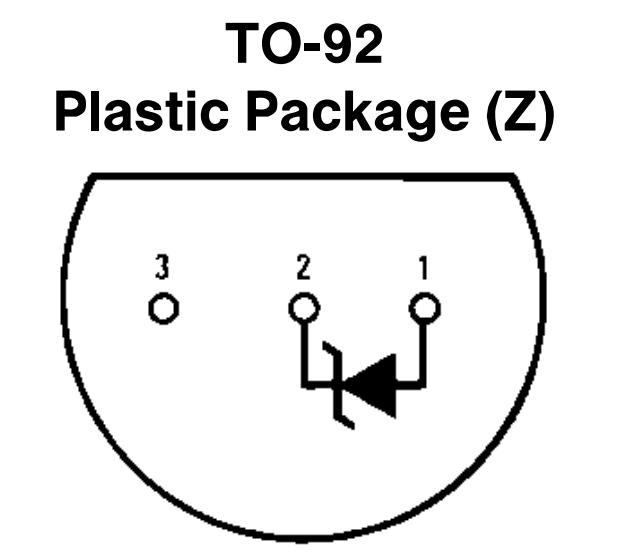

LM385Z-2.5 TO-92 Spänningsreferens 2.5V

Art nr: 40350385
Handla denna produkt LM385Z-2.5 TO-92 Spänningsreferens 2.5V
pris 12 SEK
Inklusive 25% moms
1 till9
12 SEK
10 till24
10.80 SEK
25 till
Lagervara, 73 st
Enhet: styck

12 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se




The LM385-2.5 is a micropower 2-terminal band-gap voltage regulator diode. Operating over a20mA to 20 mA current range, it features exceptionally low dynamic impedance and good temperature stability. Onchip trimming is used to provide tight voltage tolerance. Since the LM-385-2.5 band-gap reference uses only transistors and resistors, low noise and good long term stability result. Careful design of the LM385-2.5 has made the device exceptionally tolerant of capacitive loading, making it easy to use in almost any reference application. The wide dynamic operating range allows its use with widely varying supplies with excellent regulation. The extremely low power drain of the LM385-2.5 makes it useful for micropower circuitry. This voltage reference can be used to make portable meters, regulators or general purpose analog circuitry with battery life approaching shelf life. Further, the wide operating current allows it to replace older references with a tighter tolerance part.

* ±20 mV (±0.8%) max. initial tolerance (A grade)
* Operating current of 20uA to 20mA
* 0.6ohm dynamic impedance (A grade)
* Low temperature coefficient
* Low voltage reference - 2.5V
