L293 adapterkort
Art nr: 12302028
Tyvärr, produkten har utgått ur vårt sortiment
Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se
Produktbeskrivning
Produktbeskrivning

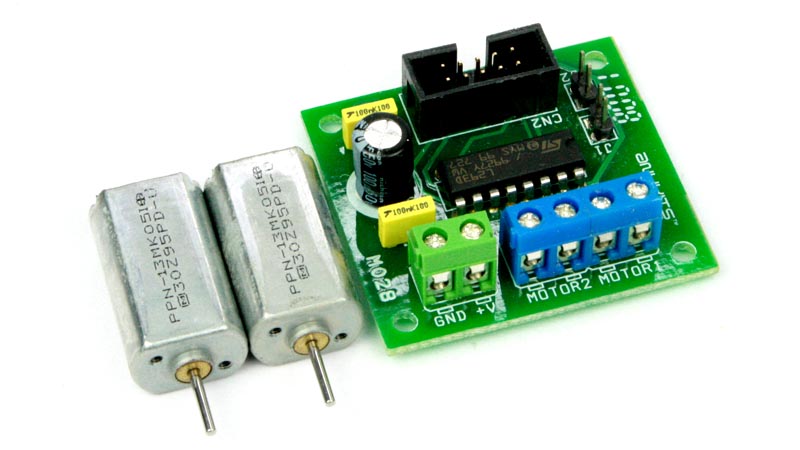

L293D Adapter Board can be use as dual DC motor driver or bipolar stepper motor driver. Useful in robotics application, bidirectional DC motor controller and stepper motor driver. Separate logic supply to reduce dissipation. L293D includes the output clamping diodes withing the IC for protections. Motor not included.
* Motor/Logic supply 5 to 36 VDC
* Logic controls in 7 VDC max
* Inhibit facility/enable
* High Noise immunity
* Over temperature protection
* Capable of delivering output current up to 600 mA per channel
* The control/interface lines are accessible with 10 pin box header connector
* 10 Pin Box header for easy interface with Micro-controller or logic board
* Screw terminal connector for motor and supply connection
* PCB dimensions 47 mm x 44 mm
* Motor/Logic supply 5 to 36 VDC
* Logic controls in 7 VDC max
* Inhibit facility/enable
* High Noise immunity
* Over temperature protection
* Capable of delivering output current up to 600 mA per channel
* The control/interface lines are accessible with 10 pin box header connector
* 10 Pin Box header for easy interface with Micro-controller or logic board
* Screw terminal connector for motor and supply connection
* PCB dimensions 47 mm x 44 mm
Produktinformation
SKU:
12302028
