Produktbeskrivning

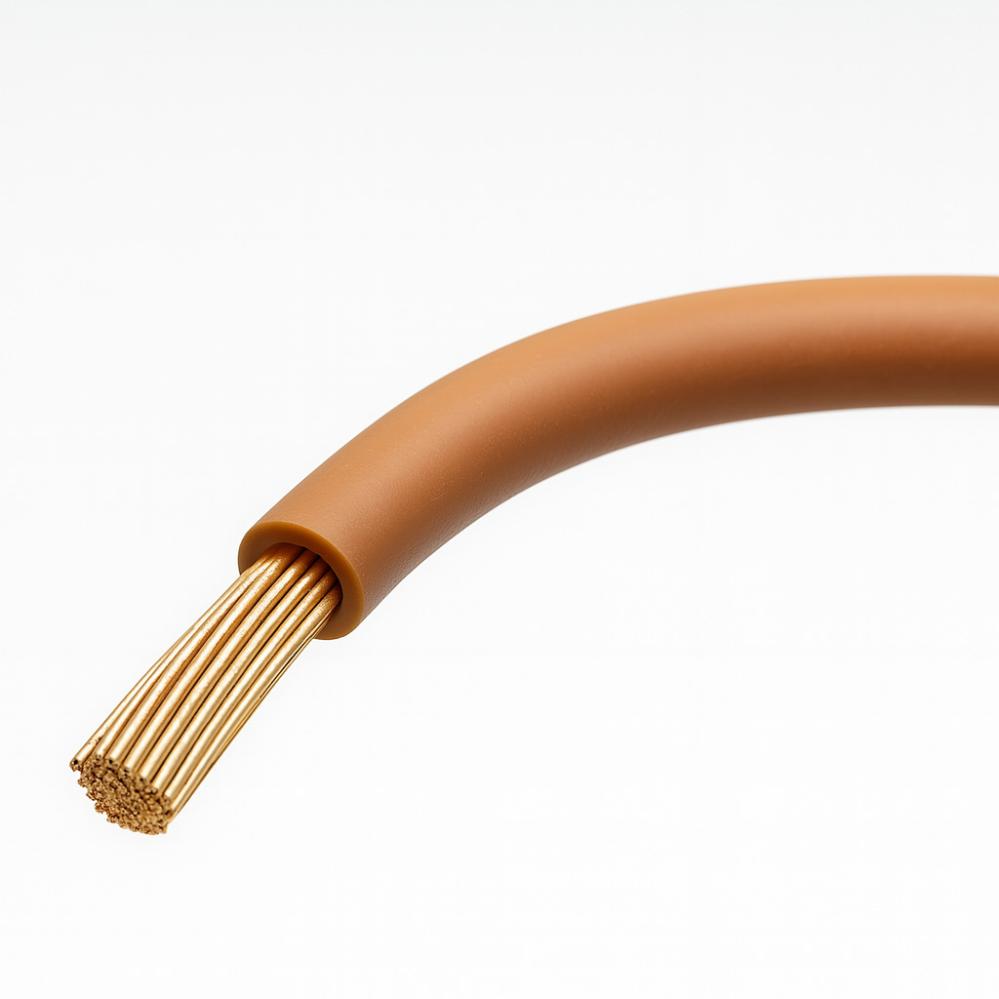

H05V-K (RK) is a stranded hookup wire intended for installation in control cabinets, junction boxes, enclosures, machines, distribution panels, conduit systems, etc. Rated for use in 230/400 VAC systems but also well-suited for low-voltage applications. Constructed with finely stranded copper conductor, offering excellent solderability. The soft conductor consists of fine-wired copper according to Class 5, providing high flexibility and a small bending radius. Made in Germany.
Specifications:
- Area: 1.0 mm² (AWG 17)
- Outer diameter (cable): 2.5 mm
- Rated voltage (Uo/U): 300/500 V
- Conductor material: Cu (pure copper)
- Resistance per 100 m: 1.95 ohm
- Temperature range: –30 to +80 °C
- Packaging: Sold by the meter. 1 roll = 100 meters
- Conductor category: Class 5 = fine-stranded (IEC 60228)
- Insulation: PVC
- Standard: VDE 0281-3
- CPR fire class: Eca
- Flame propagation characteristics: According to EN 60332-1-2
- Manufacturer: Helukabel
