Produktbeskrivning

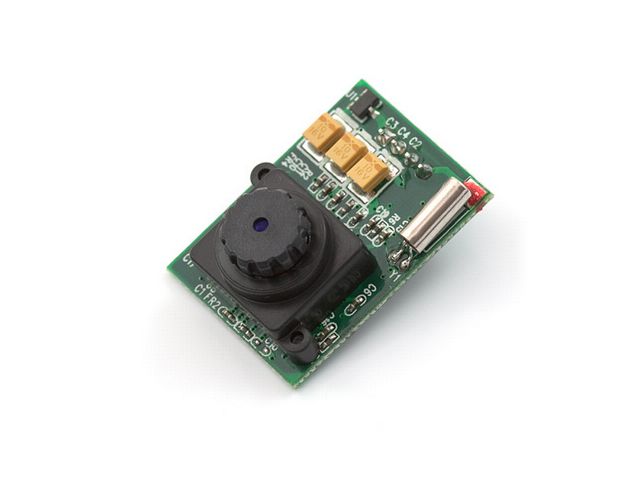

This is a simple-to-use, UART controlled, color camera with on-board JPEG compression. Capable of resolutions up to 640x480, and a number of color types. Send the snapshot command, and this module will capture a single-frame picture, compress it, and send it back over a serial connection. The easy-t0-use and well defined command set is detailed in the User's Manual below.
This module includes an OmniVision OV7640/8 VGA camera sensor, OV528 camera-to-serial bridge, program EEPROM and a 4-wire cable that mates with the camera module.
Features:
* Low power: 3.3V, 60mA
* 4-pin interface: Vdd, GND, TX, RX
* 100uA current consumption in sleep mode
* VGA resolution; built-in down-sampling to QVGA or CIF
* TTL interface of up to 115.2kbps, auto baud detection
* Simple, well-defined command set
* JPEG codec for different resolutions
* Built-in color conversion: 4 gray, 16 gray, 256 gray, 12-bit RGB, 16-bit RGB
Dimensions: 20x28x10mm
This module includes an OmniVision OV7640/8 VGA camera sensor, OV528 camera-to-serial bridge, program EEPROM and a 4-wire cable that mates with the camera module.
Features:
* Low power: 3.3V, 60mA
* 4-pin interface: Vdd, GND, TX, RX
* 100uA current consumption in sleep mode
* VGA resolution; built-in down-sampling to QVGA or CIF
* TTL interface of up to 115.2kbps, auto baud detection
* Simple, well-defined command set
* JPEG codec for different resolutions
* Built-in color conversion: 4 gray, 16 gray, 256 gray, 12-bit RGB, 16-bit RGB
Dimensions: 20x28x10mm
