Joy-Pi Note (inkl. Raspberry Pi 4 4GB)

Art nr: 41020309 - Joy-It

Tyvärr, produkten har utgått ur vårt sortiment

10 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se




** This includes one Raspberry Pi 4B 4GB mainboard **

The Joy-Pi is an experimentation kit based on the Raspberry Pi and is ideal for getting started in electrical engineering and programming. The well-thought-out case system offers a perfect all-in-one environment and puts an end to many fiddly little parts solutions and cable chaos on the workbench.

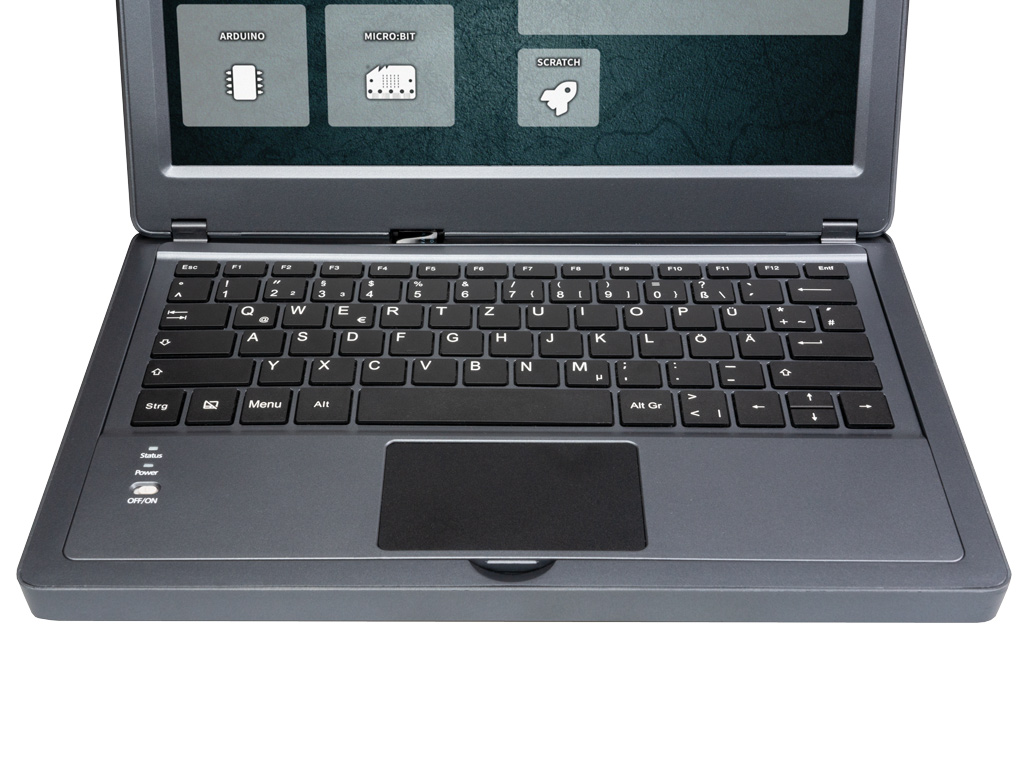

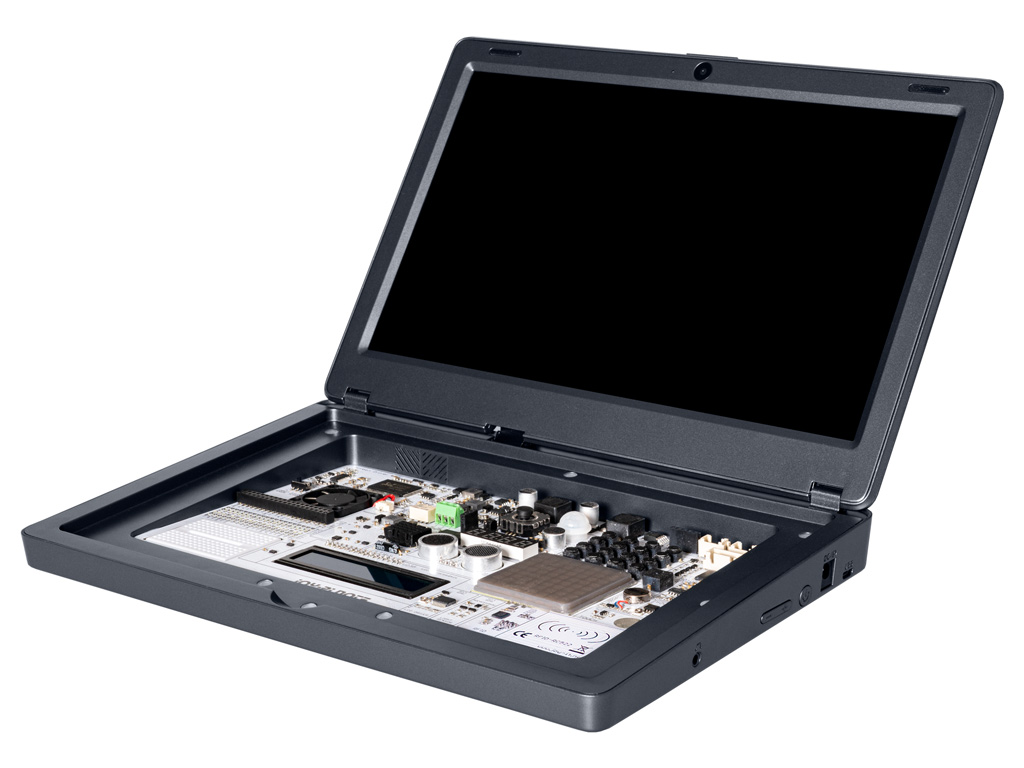

The Joy-Pi Note is the new flagship in the Joy-Pi family. With its 11.6" IPS screen and a removable, wireless keyboard, it combines the basic idea of the Joy-Pi in a new, high-quality, and attractive format. With 46 courses and 20 projects, the Joy-Pi Note is not only suitable as an experiment center but is also made for use in the education sector.

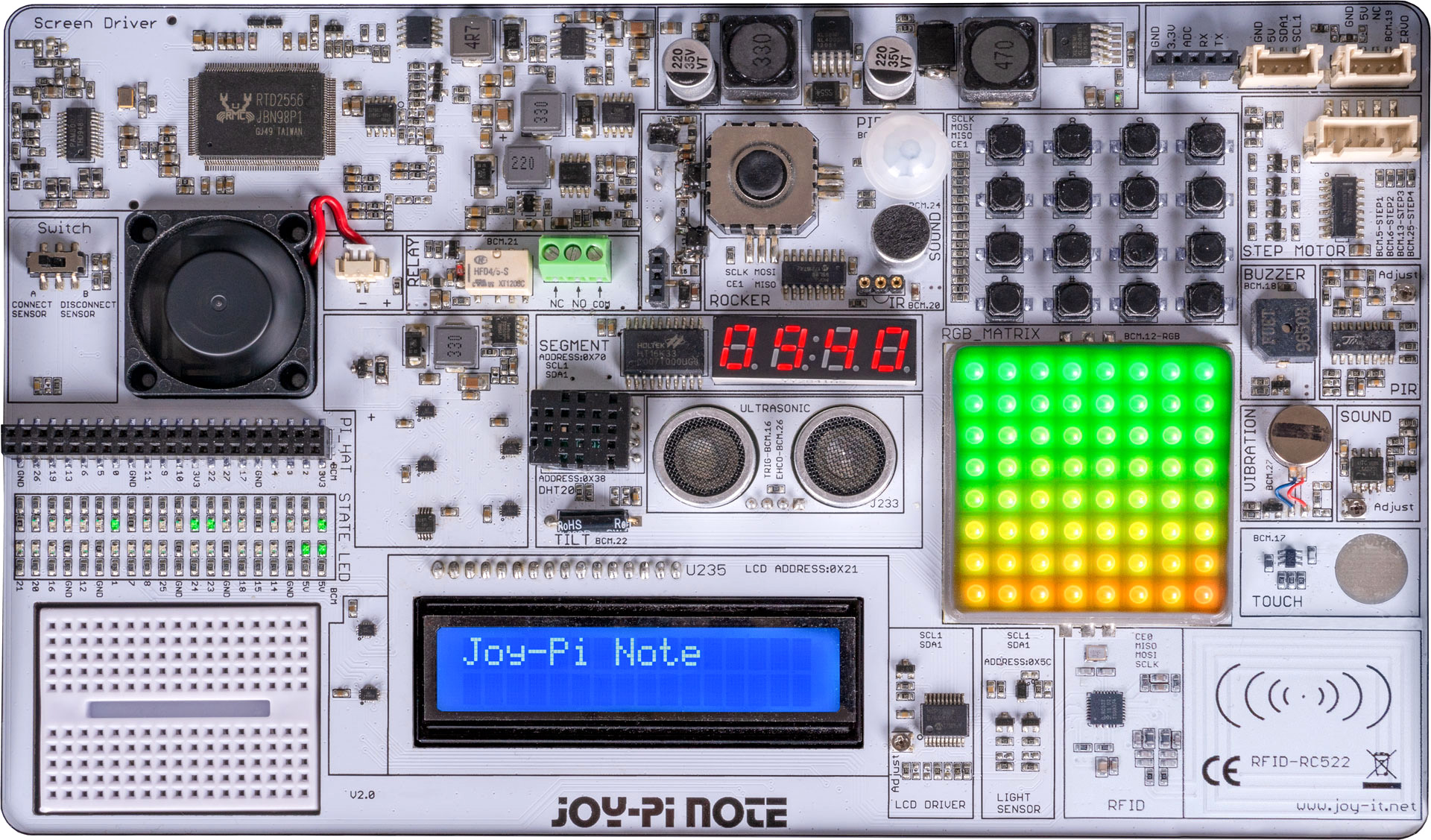

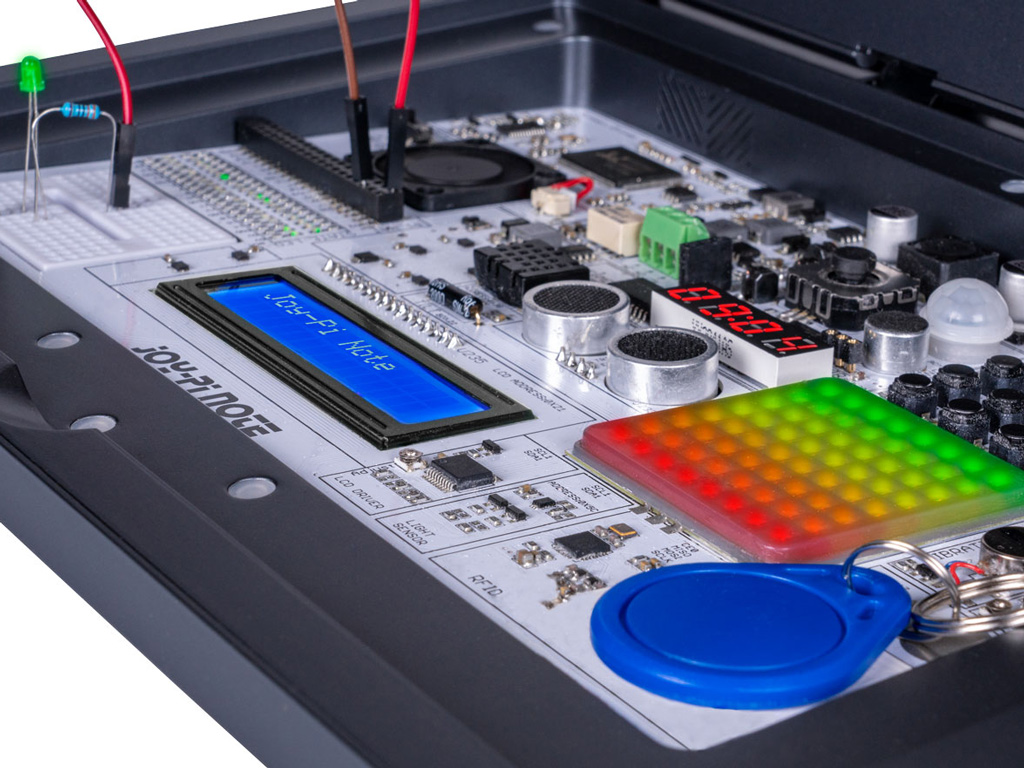

With over 22 integrated sensors and modules, there are no limits to your own joy of experimentation. Thanks to the installed learning platform developed especially for the Joy-Pi Note, the installed units can be operated and learned independently of one's own prior knowledge.

Whether beginner or expert, programming or electronics, development or education - with the Joy-Pi there are no limits to the possibilities. With pre-installed software for learning Scratch, Python, Arduino, and micro:bit, the Joy-Pi is suitable for any application.

An additional integrated compartment allows storing a power bank as well as other components. Thus, the Joy-Pi Note is also perfectly prepared for mobile use.

* Display: 11.6" 1920x1080 IPS LCD
* Camera: 2 MP
* Power supply: 12 V hollow plug, 5 V USB
* Dimensions: 291 x 190 x 46 mm
* Weight: 1.3kg

* Display: 7-segment display, 16x2 LCD module, 8x8 RGB-Matrix
* Sensors: DHT temperature & humidity sensor, tilt sensor, motion sensor, sound sensor, touch sensor, RFID module, light sensor, ultrasonic distance sensor
* Motors: Servo interface, stepper motor interface, vibration motor
* Control: Joystick, 4x4 button matrix, touch sensor
* Others: Relay, fan, GPIO extension, GPIO LED indicator, breadboard, IO/ADC/I2C/UART expansion interface, infrared sensor interface, buzzer, display driver

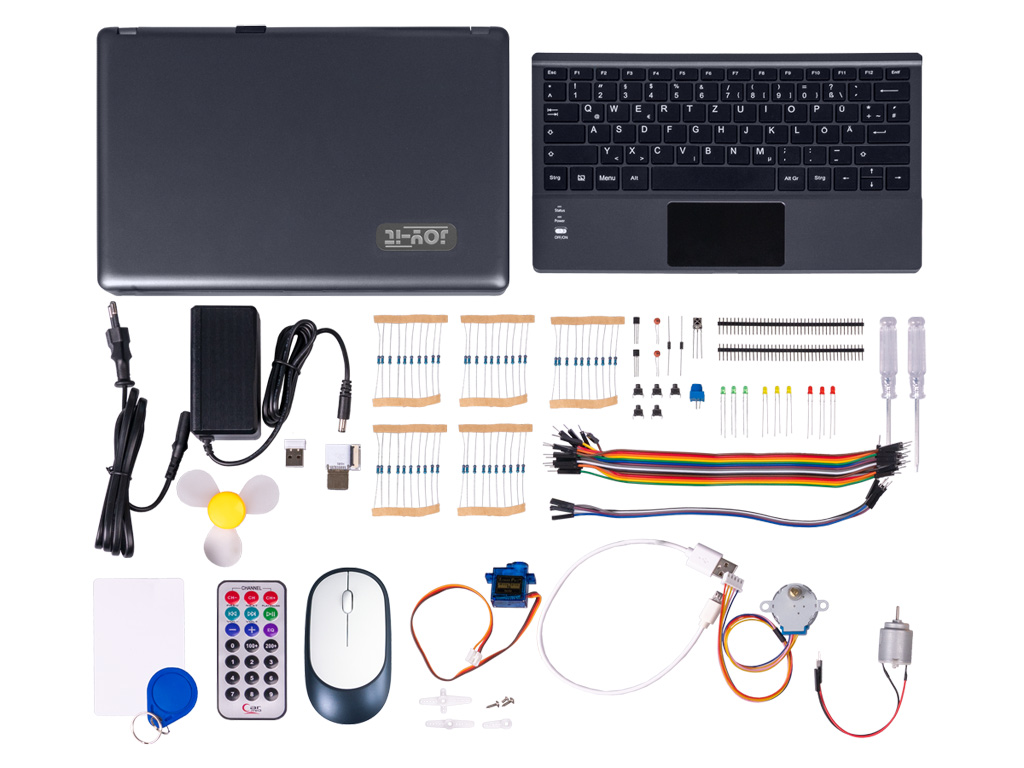

* Accessories: RFID chip, RFID card, 12 V power supply, servo motor, stepper motor, infrared receiver, infrared remote control, DC motor with fan attachment, HDMI connector, screwdriver, microSD card (32 GB), SD card reader, electronic accessories, wireless mouse, wireless keyboard

* Special features: Fully equipped set, completely integrated experiment centre, pre-installed learning platform, detachable wireless keyboard, integrated compartment ( 147 x 70 x 11mm ) for power bank & accessories
* Educational material: 46 courses & 18 projects for Python and Scratch
