Produktbeskrivning

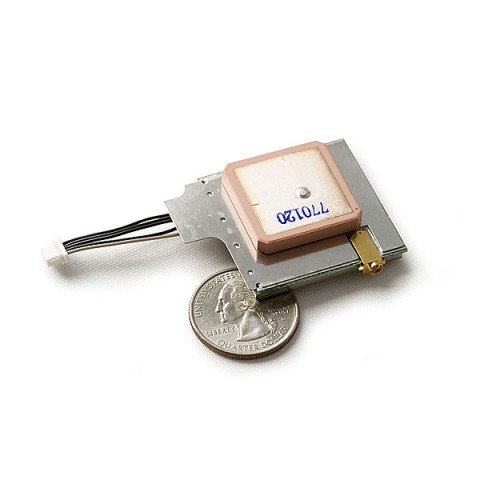

The EM-408 GPS module from USGlobalSat based on the spectacular SiRF StarIII chipset. This complete module is built upon the same technology as the ET-301, but includes a built-in patch antenna and an MMCX connector for an optional external antenna! 5-pin interface cable included.
Please note the EM408 uses a 5-pin cable and is not compatible with the 6-pin cable included with the EM406.
Features:
Extremely high sensitivity : -159dBm
10m Positional Accuracy / 5m with WAAS
Hot Start : 8s
Warm Start : 38s
Cold Start : 42s
75mA at 3.3V
20gram weight
Outputs NMEA 0183 and SiRF binary protocol
Dimensions: 35mm x 36mm
Please note the EM408 uses a 5-pin cable and is not compatible with the 6-pin cable included with the EM406.
Features:
Extremely high sensitivity : -159dBm
10m Positional Accuracy / 5m with WAAS
Hot Start : 8s
Warm Start : 38s
Cold Start : 42s
75mA at 3.3V
20gram weight
Outputs NMEA 0183 and SiRF binary protocol
Dimensions: 35mm x 36mm
