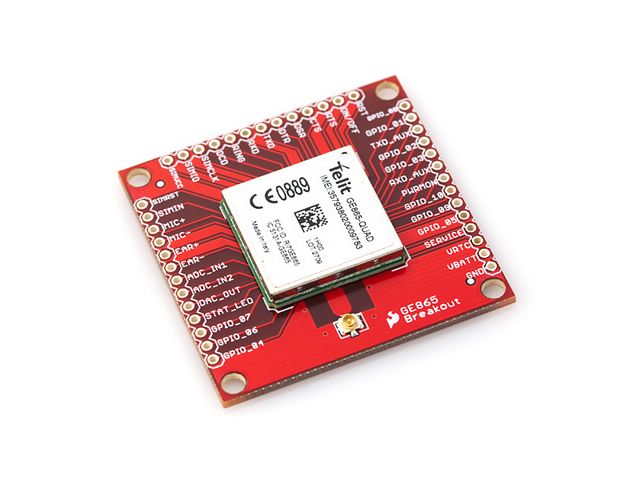

This is a breakout board for the new Telit GE865 Quad cell module. The board comes with the module installed, as well as a U.FL antenna connector. Standard 0.1" spaced headers allow easy access to a full range of functionality. Just connect your power supply (3.22-4.5VDC, 3.8VDC nominal), SIM card, antenna, serial connection and a power button and you're off and running!
The new GE865 product family introduces the smallest GSM/GPRS Ball-Grid-Array (BGA) modules in the market. The low profile and small size of the unique BGA package for the GE865-QUAD enable the design of very compact applications. Since connectors are eliminated, the solution cost is significantly reduced compared to conventional mounting.
With its ultra-compact design and extended temperature range, the Telit GE865 product line is the perfect platform for high-volume M2M applications and mobile data devices. Additional features such as integrated TCP/IP protocol stack and serial multiplexer extend functionality of the application at no additional cost.
State-of-the-art ADCs, DACs and GPIOs provide connectivity to external peripherals such as sensors and displays.
Dimensions: 1.8x1.8" (45.7x45.7mm)
The new GE865 product family introduces the smallest GSM/GPRS Ball-Grid-Array (BGA) modules in the market. The low profile and small size of the unique BGA package for the GE865-QUAD enable the design of very compact applications. Since connectors are eliminated, the solution cost is significantly reduced compared to conventional mounting.
With its ultra-compact design and extended temperature range, the Telit GE865 product line is the perfect platform for high-volume M2M applications and mobile data devices. Additional features such as integrated TCP/IP protocol stack and serial multiplexer extend functionality of the application at no additional cost.
State-of-the-art ADCs, DACs and GPIOs provide connectivity to external peripherals such as sensors and displays.
Dimensions: 1.8x1.8" (45.7x45.7mm)
