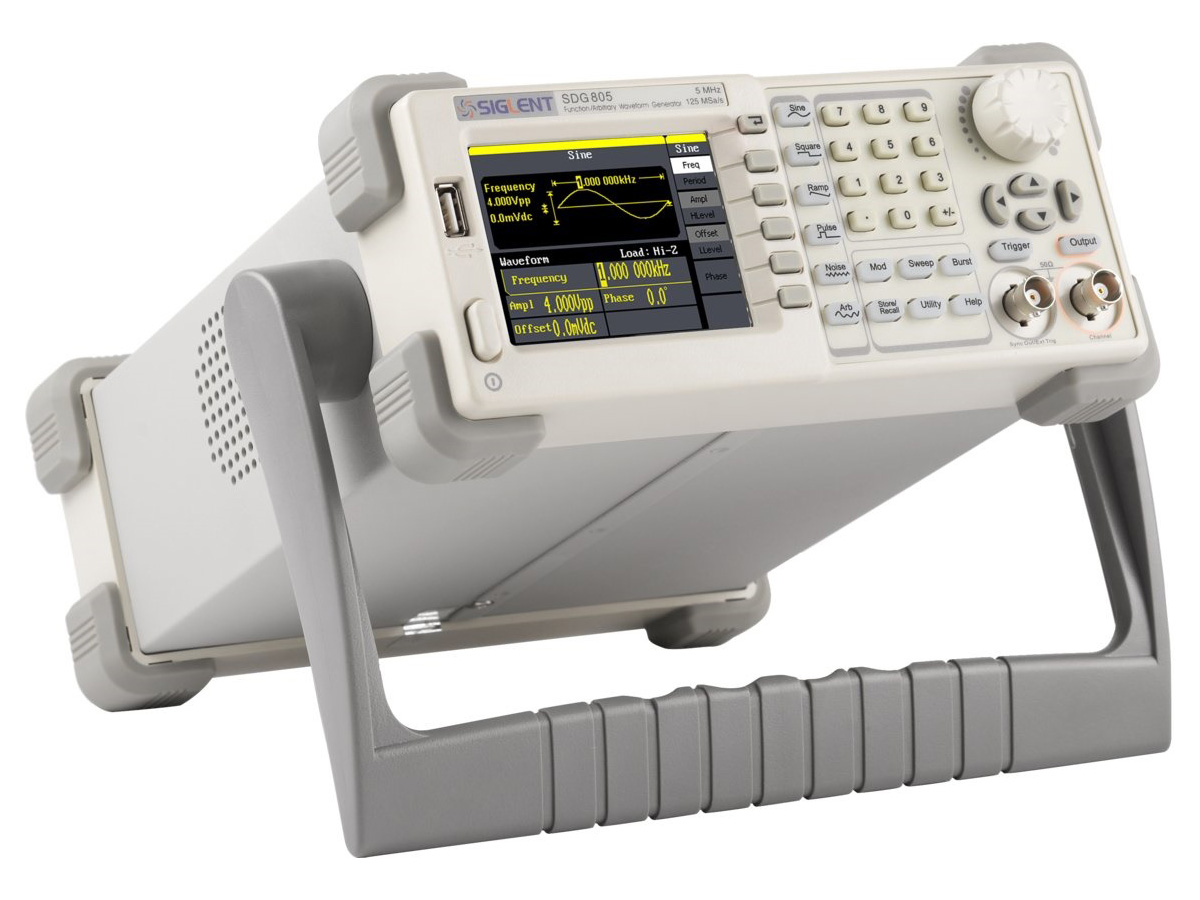

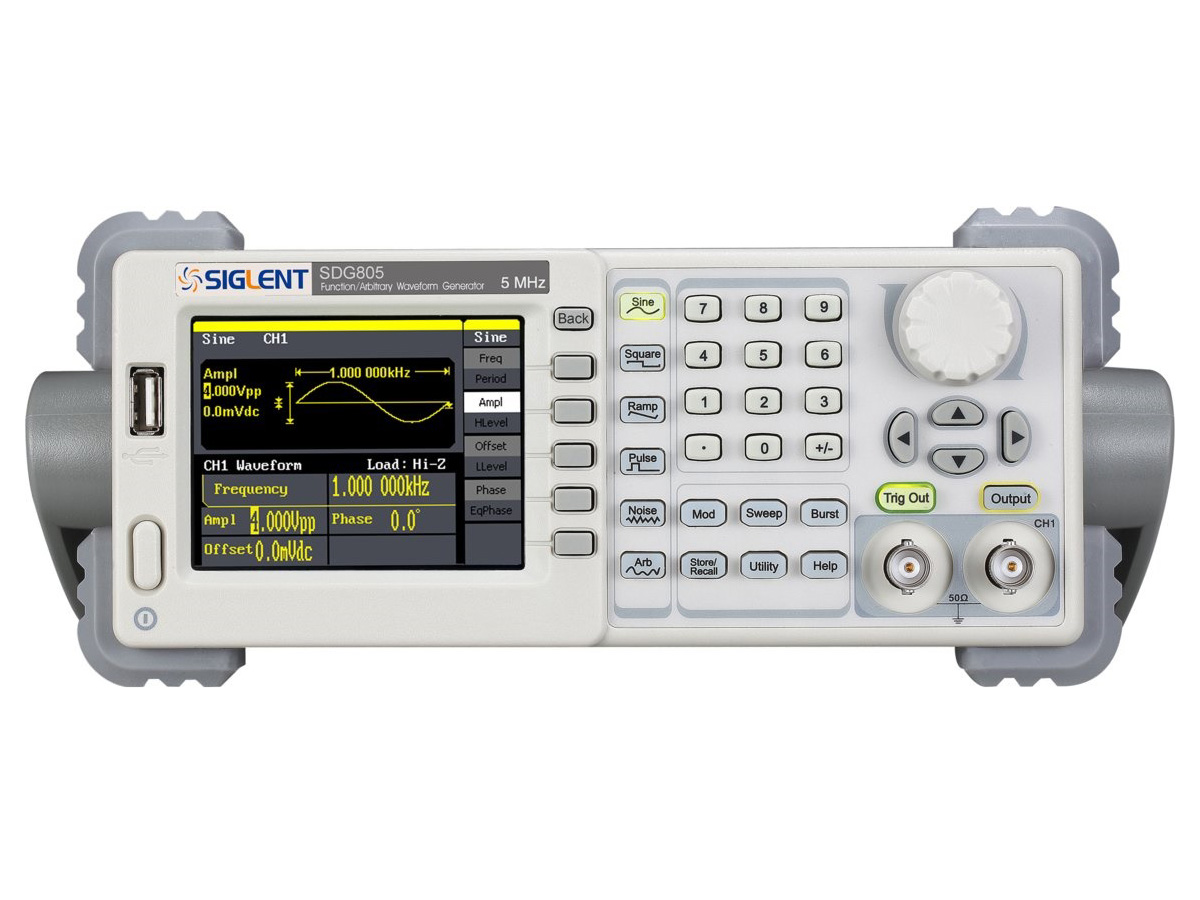

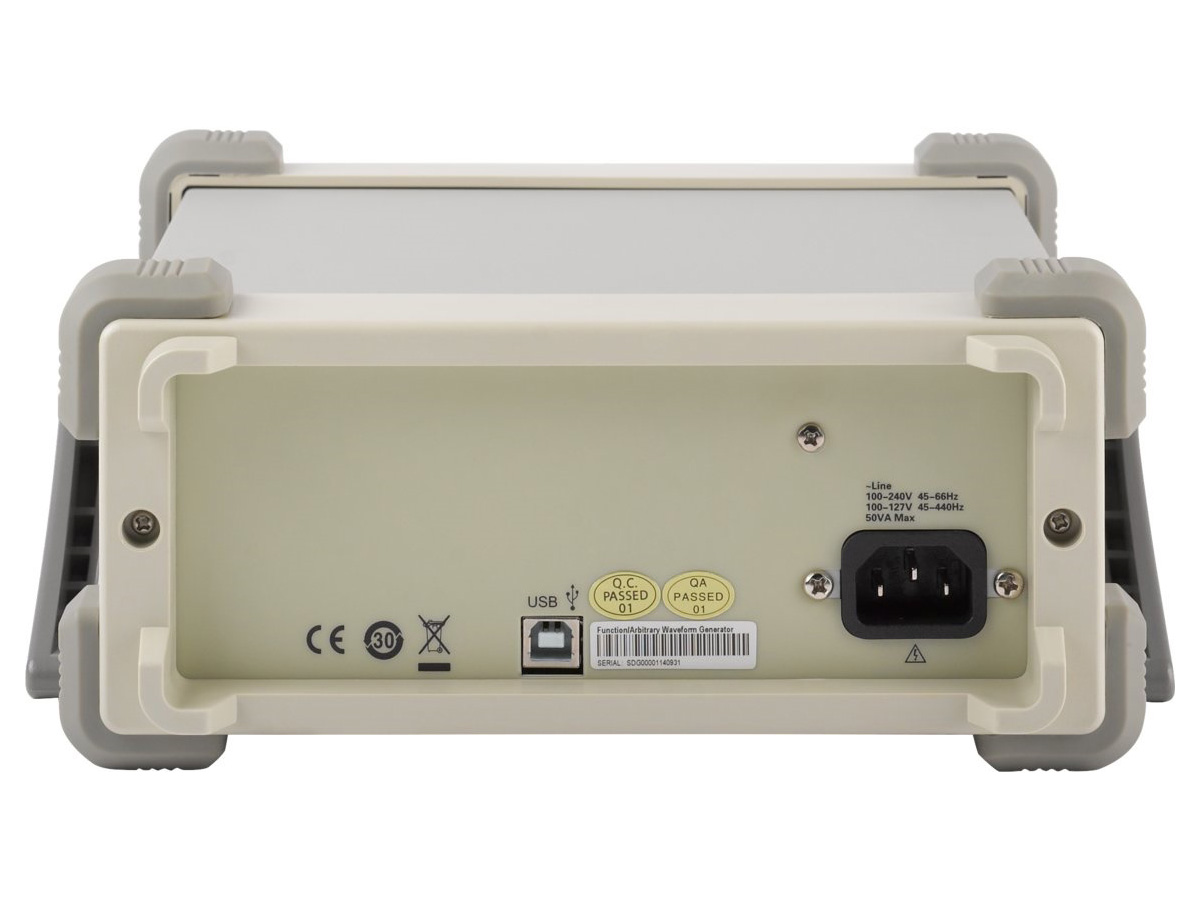

Funktionsgenerator 5MHz Siglent SDG805 (utgår)

SDG800 Series Function/Arbitrary Waveform Generator is equipped with maximum output frequency of 5 MHz and 125 MSa/s sampling rate. With the new innovated EasyPulse technology, SDG800 can generate pulse of low jitter, quick rising/falling edge regardless of frequency effect, while the duty cycle, edge and pulse width could be widely and accurately adjusted. SDG800 is much superior in performance to similar DDS signal generator

* sampling rate: 125Msa/s
* Wave length: 16 kpts
* Frequency resolution: 1 uHz
* Vertical (amplitude) resolution: 14 bits
* Waveform: Sine?Square?Ramp?Pulse?Gaussian white noise?Arbitrary waveform,46 types of built-in arbitrary waveforms
* Modulation: AM?FM?PM?DSB-AM?FSK?ASK?PWM?Sweep?Burst
* Amplitude: 4mVpp - 20Vpp
