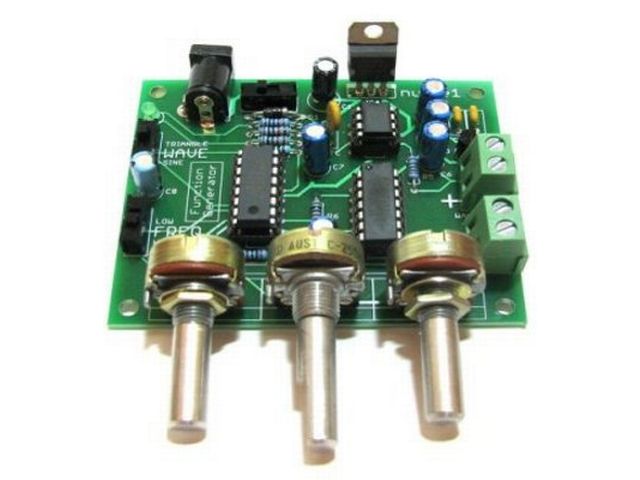

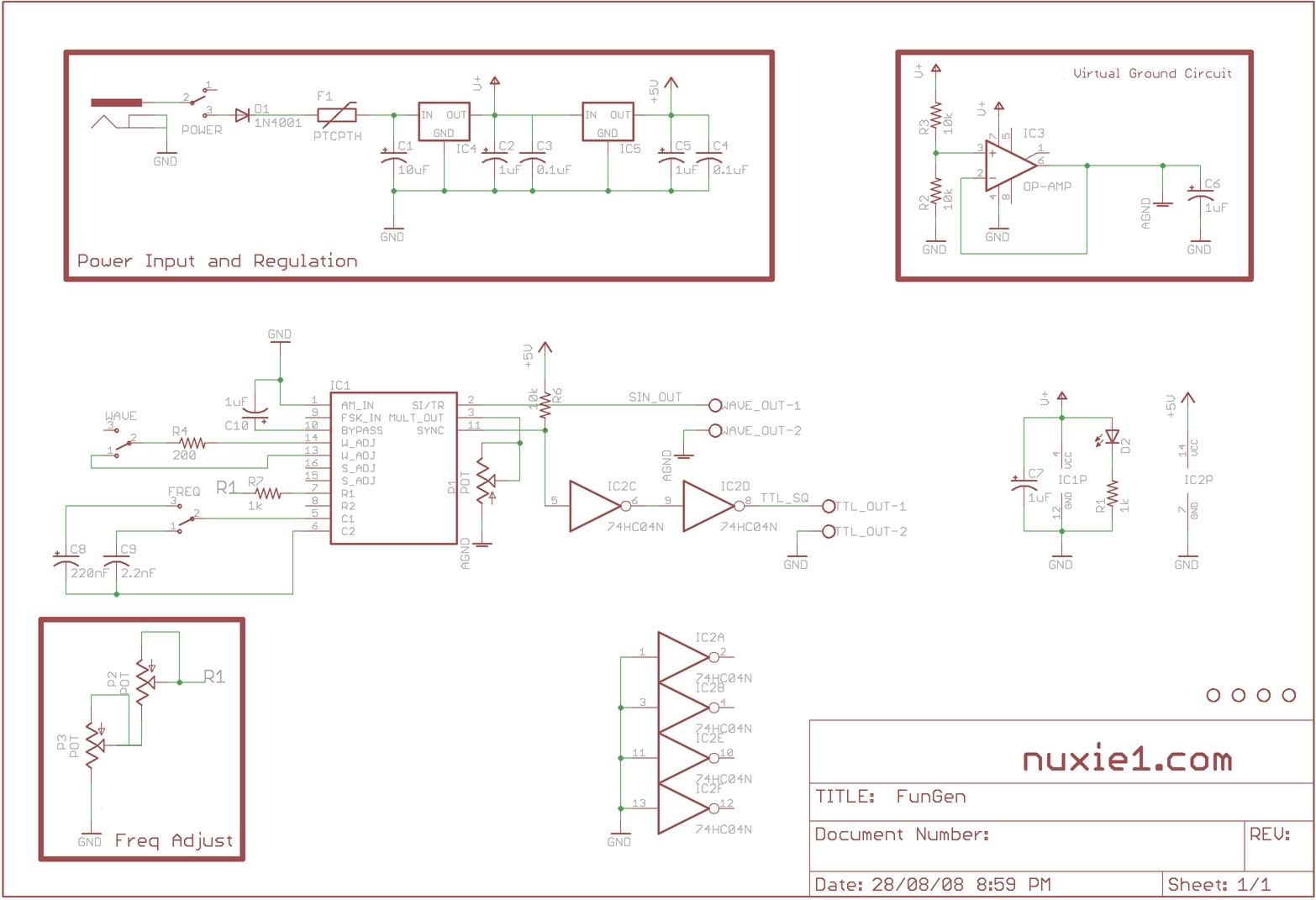

This kit from Nuxie includes everything needed to build a function generator capable of producing sine, triangle and square waves from 25Hz to over 250kHz. An XR2206 IC is used to generate the various waveforms.
Note: This kit requires a ~14V or higher AC or DC 2.1mm center positive wall wart to fully drive the 12V regulator. Any AC or DC wall-wart that outputs 13V or above should work.
Output Waveforms: 5V TTL Square Wave and selectable Sine or Triangle Wave
Output Amplitude: Square Wave: 5Vp-p, Sine/Triangle: 0Vp-p to approximately 6Vp-p.
Output Frequency: 25Hz to over 250kHz using kit components. Can be modified to 0.01Hz to 1MHz.
The amplitude and frequency adjustment pots are mounted on the board for easy adjustment. An ON/OFF switch, Waveform selector switch and Frequency range switch are also mounted on the board.
Note: This kit requires a ~14V or higher AC or DC 2.1mm center positive wall wart to fully drive the 12V regulator. Any AC or DC wall-wart that outputs 13V or above should work.
Output Waveforms: 5V TTL Square Wave and selectable Sine or Triangle Wave
Output Amplitude: Square Wave: 5Vp-p, Sine/Triangle: 0Vp-p to approximately 6Vp-p.
Output Frequency: 25Hz to over 250kHz using kit components. Can be modified to 0.01Hz to 1MHz.
The amplitude and frequency adjustment pots are mounted on the board for easy adjustment. An ON/OFF switch, Waveform selector switch and Frequency range switch are also mounted on the board.
