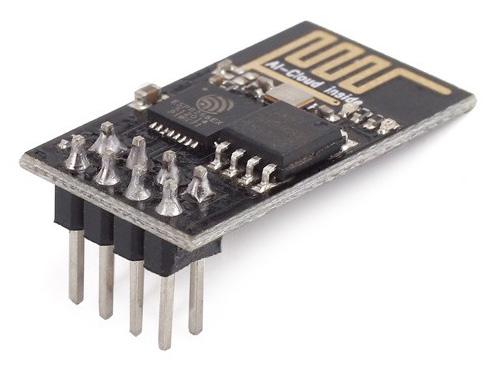

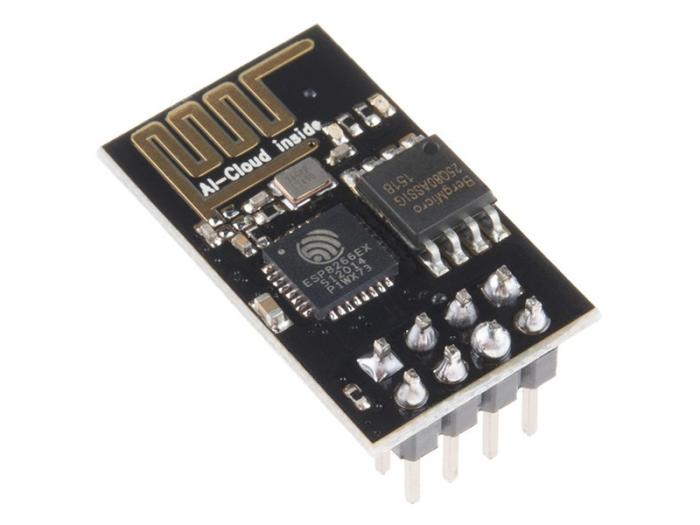

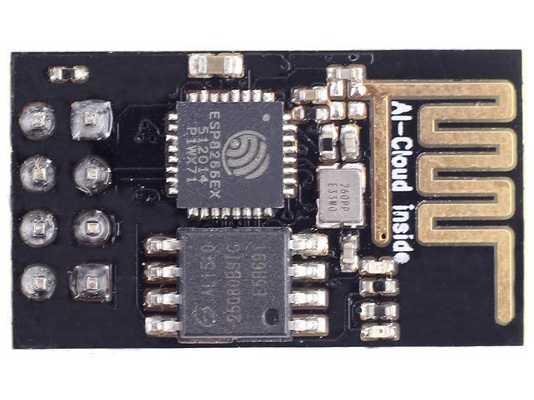

ESP-01 ESP8266 WIFI-modul

Art nr: 41016530
Handla denna produkt ESP-01 ESP8266 WIFI-modul
pris 49 SEK
Inklusive 25% moms
Lagervara, 118 st
Enhet: styck

10 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se




ESP8266 offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.

When ESP8266 hosts the application, and when it is the only application processor in the device, it is able to boot up directly from an external flash. It has integrated cache to improve the performance of the system in such applications, and to minimize the memory requirements.

Alternately, serving as a Wi-Fi adapter, wireless internet access can be added to any microcontroller-based design with simple connectivity through UART interface or the CPU AHB bridge interface.

ESP8266 on-board processing and storage capabilities allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. With its high degree of on-chip integration, which includes the antenna switch balun, power management converters, it requires minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

Sophisticated system-level features include fast sleep/wake context switching for energy-efficient VoIP, adaptive radio biasing for low-power operation, advance signal processing, and spur cancellation and radio co-existence features for common cellular, Bluetooth, DDR, LVDS, LCD interference mitigation.

These modules include 1MB (8Mbit) of flash memory, twice the size of the older blue colored ESP-01 module
The ESP8266 Serial/UART to WiFi module is a great way to connect your Arduino or other microcontroller projects to a WiFi network
Create your next internet of things (IOT) project with affordable network connectivity by implementing this module into your design
The module has the ability to run independent of a host controller

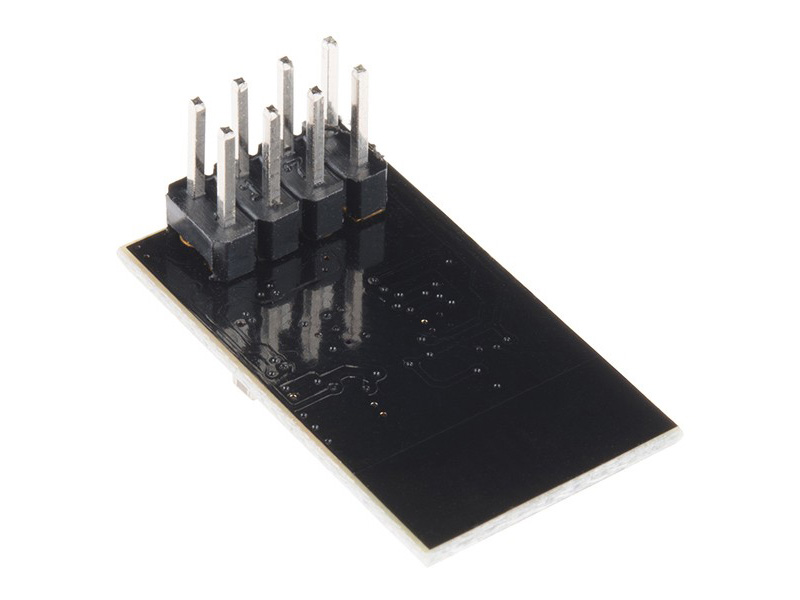

The eight pin header includes two GPIO pins that allow for direct connection of the module to sensors, peripherals, or host controller

* 802.11 b/g/n protocol
* Wi-Fi Direct (P2P), soft-AP
* Integrated TCP/IP protocol stack
* Integrated TR switch, balun, LNA, power amplifier and matching network
* Integrated PLL, regulators, and power management units
* +19.5dBm output power in 802.11b mode
* Integrated temperature sensor
* Supports antenna diversity
* Power down leakage current of < 10uA
* Integrated low power 32-bit CPU could be used as application processor
* STBC, 1×1 MIMO, 2×1 MIMO
* A-MPDU & A-MSDU aggregation & 0.4?s guard interval
* Wake up and transmit packets in < 2ms
* Standby power consumption of < 1.0mW (DTIM3)
