Product description

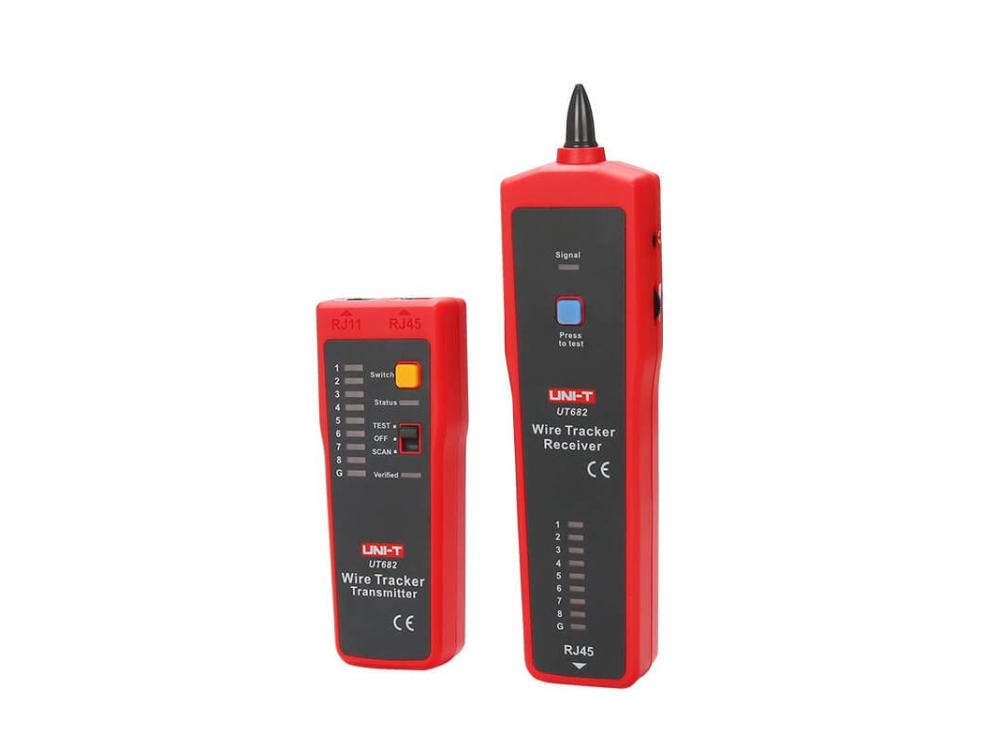

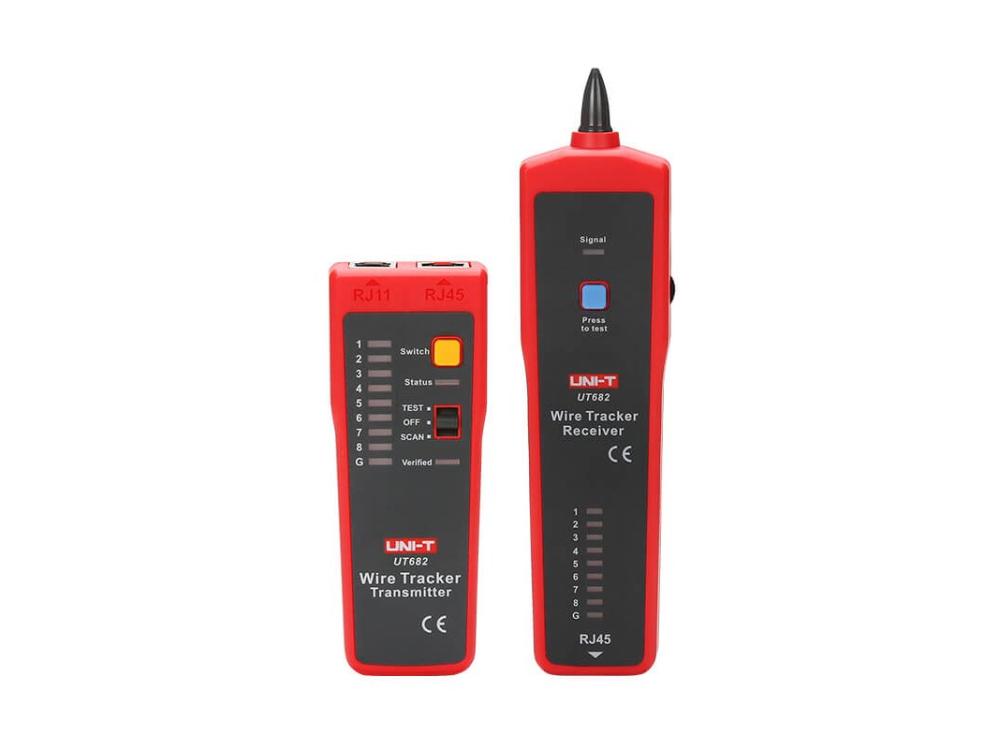

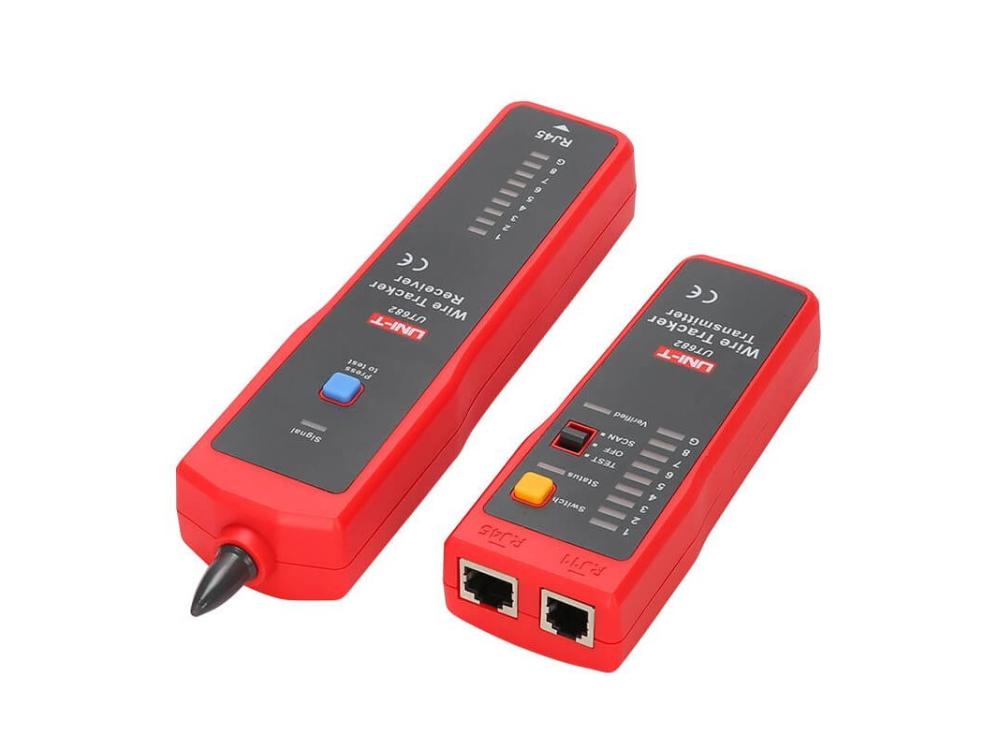

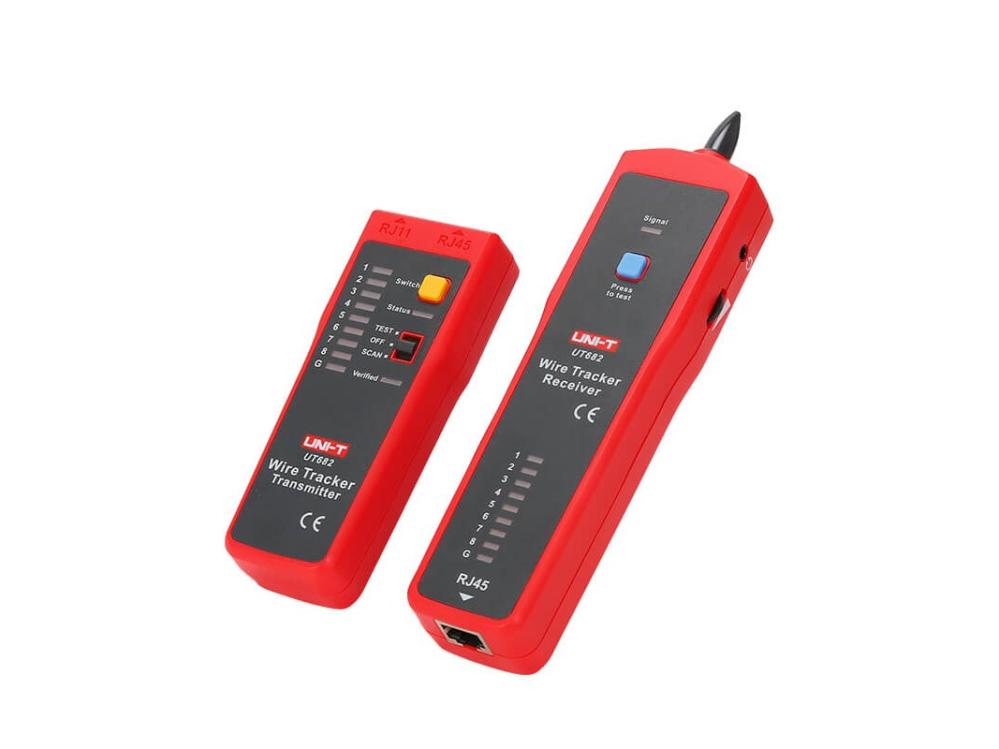

The UNI-T UT682 is a wire tracker designed for troubleshooting and identification of network cables, telephone lines, coaxial cables, and electrical wires without removing the cable insulation. The system consists of a transmitter and a receiver and is suitable for installation, service, and troubleshooting of communication and signal cables.
The instrument can trace cables over long distances and includes functions for identifying broken wires, short circuits, and wire sequence. Signal strength indication provides clear feedback during cable tracing. The UT682 also supports identification of shielded and unshielded network cables as well as fast or slow wire sequence measurement.
An essential tool for installers, network technicians, audio technicians, and electricians.
Specifications:
- Tests, traces, and locates: ethernet cable, telephone cable, coaxial cable, electrical wire
- Signal strength indication
- Adjustable sensitivity
- Headphone output (3.5 mm)
- Tracing distance, electrical wire: ≥100 m
- Tracing distance, telephone cable: ≥3000 m
- Tracing distance, unshielded cable: ≥320 m
- Tracing distance, shielded cable: ≥320 m
- Telephone line polarity indication
- Signal strength, transmitter: ≥12 V peak-to-peak
- Dimensions, transmitter: 125 x 48 x 28 mm
- Dimensions, receiver: 195 x 48 x 30 mm
- Weight, transmitter: 125 g
- Weight, receiver: 153 g
- Supply voltage: 2 x 9 V batteries (one per unit), not included
- Low battery indication
- Maximum current consumption, transmitter: 25 mA
Included accessories:
- Carrying case
- RJ11 test lead with alligator clips
- RJ45 test cable
- RJ11 test cable
- Manual
