Product description

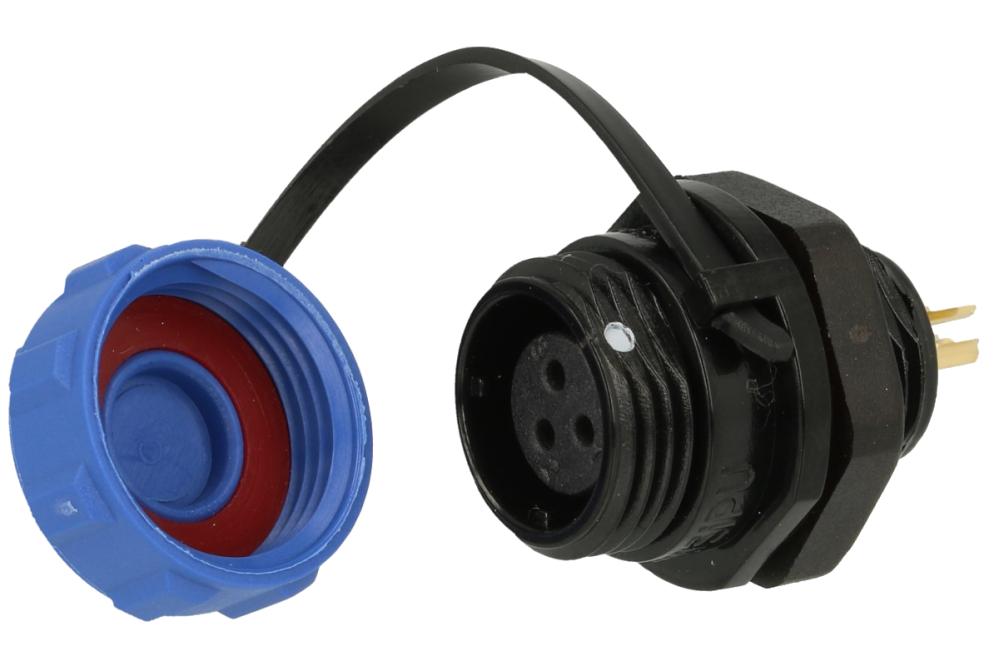

Waterproof universal connector with three poles, for chassis mounting. The connectors have thread locking and are IP68 rated. A rubber ring is compressed behind the nut to seal the hole in the chassis. Comes delivered with a threaded protective cap.
Gold-plated brass contacts and plastic parts made of heat-resistant materials (PC, PPS, Nylon66).
Solder connection.
- Rated current: 5A
- Rated voltage (DC): 24V (1kV test voltage)
- Rated voltage (AC): 180V (1kV test voltage)
- Rating: IP68
- Working temperature: -40 to 85°C
- Mechanical life: 500 contact cycles
- Dimensions: 18.5 x ⌀17.3mm
