Product description

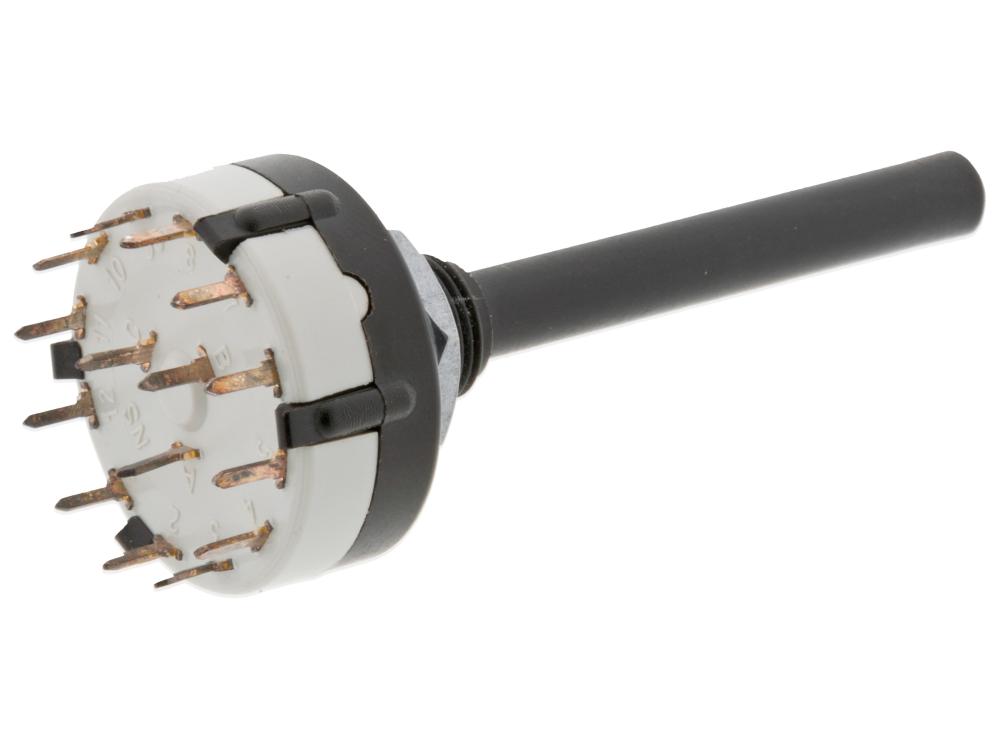

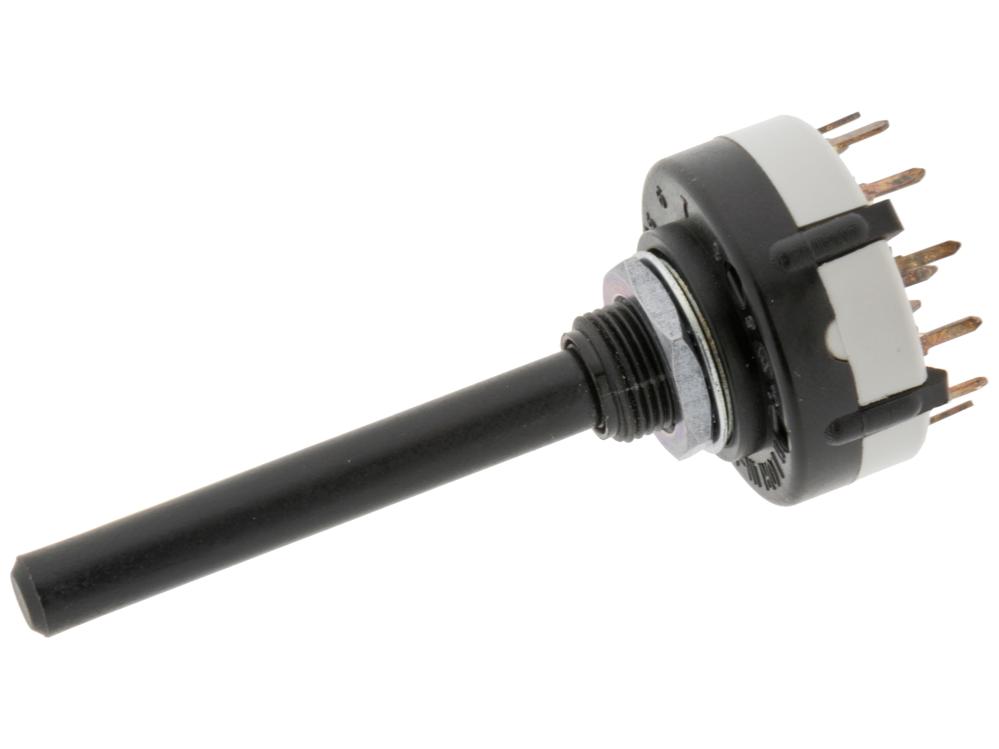

Rotary switch with pins for PCB mounting. The switch has 12 positions and one common connection. When the switch is actuated, the different positions are connected to the common pin. The switch will disconnect before connecting the next position (non-shorting, break before make). A stop ring is included and can be used for limiting the number of usable positions.
- Poles: 1
- Positions: 12
- Diameter: 26.2 mm
- Mounting hole: 10 mm
- Shaft: 18T ø6 mm x 15 mm
- Step angle: 30 °
- Max voltage: 250 V
- Max current: 150 mA
- Contact resistance: 20 mohm
- Working temperature: -30 to +85 °C
- Manufacturer: Lorlin
- Part.no: CK1049
