Product description

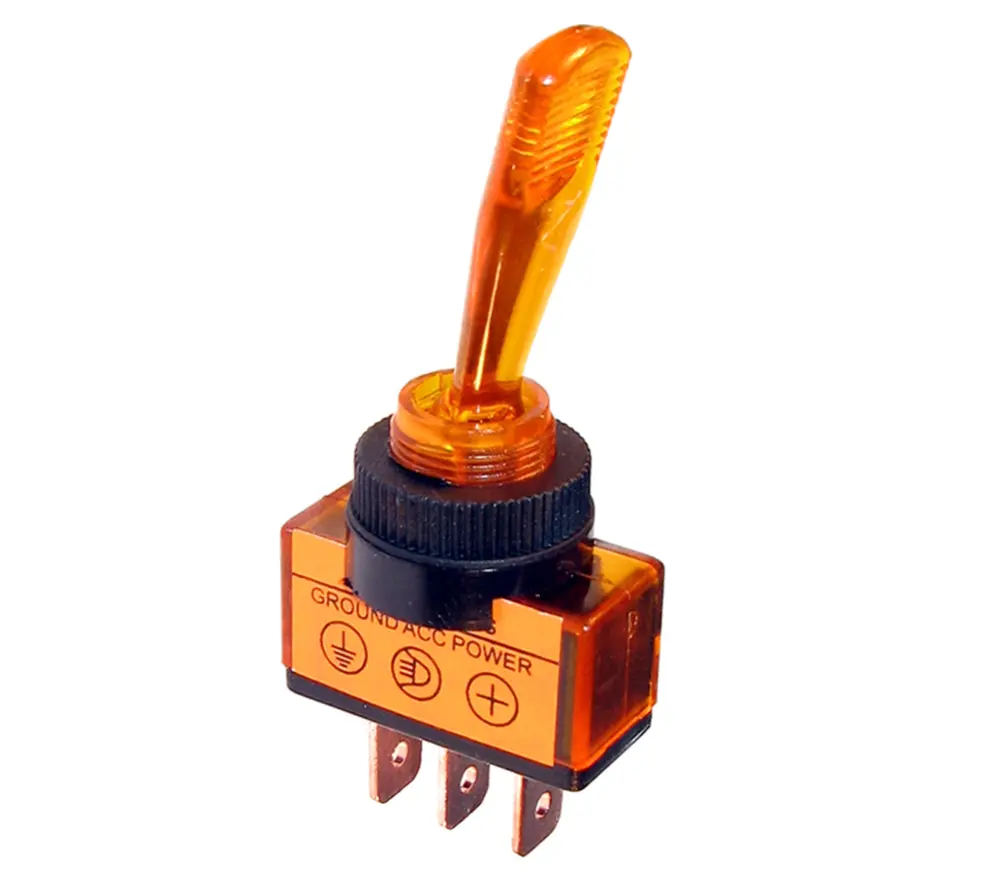

Long lever toggle switch with built in lamp. When the switch is on, the lever arm lights up. Panel-mounted. Single pole. Fits ø12 mm mounting hole. Suitable for general or automotive use.
Specifications:
- Switching capacity: 20 A @ 12 VDC
- Lamp operating voltage: 11 – 14.4 V
- Lamp current consumption: 40 mA
- Housing and lever color: orange
- Illumination color: orange
- Function: off-on
- Connection: solder terminals or Faston tabs 6.3 x 0.8 mm
- Panel cutout diameter: ø12 mm
- Panel thickness (max): 6.5 mm

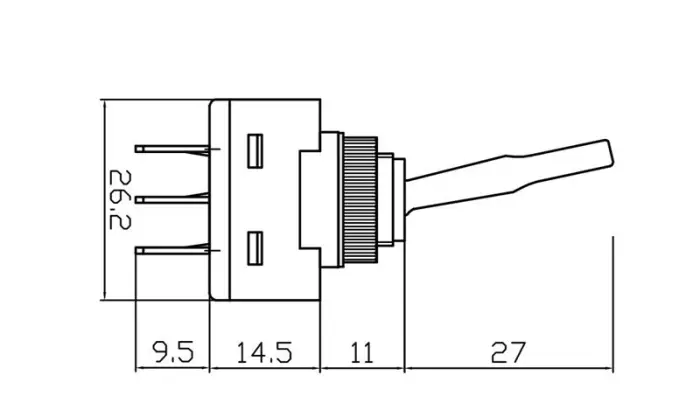

- Lever length: 27 mm
