Product description

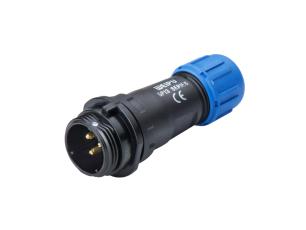

Waterproof universal connector for mounting on three-pole cable. The connectors have thread locking and are IP68 rated. A sealing rubber ring is compressed around the cable to seal the connector housing.
Gold-plated brass contacts and plastic parts of heat-resistant materials (PC, PPS, Nylon66).
Solder connection.
- Rated current: 13A
- Rated voltage: 250VAC (1.5kV test voltage)
- Contact resistance: 2.5 mOhm
- For cable diameter: 4 - 6.5mm
- Rating: IP68
- Working temperature: -40 to +85°C
- Mechanical life: at least 500 contact cycles
- Dimensions: 49 x ⌀18.8mm
