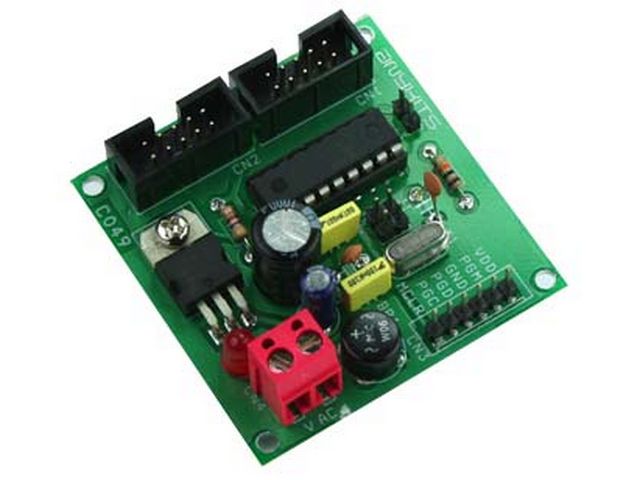

Development board PIC16F 18-pin

PIC16F 18-pin Development Board will help you with your prototyping requirement with any of Microchip's 18 pin of 16F PIC microcontrollers.

* All ports terminating in separate box header with 5 VDC source option
* ICSP connector for programming for the PIC's with ICD support
* Jumper selectable on board pull up resistor for PortA.4 pin on the microcontroller
* Bridge in the input provides any polarity DC supply connection to the board
* Jumper selectable 20 MHz crystal source
* Onboard +5V Voltage regulator
* Four mounting holes of 3.2 mm each
* PCB dimensions 56 mm x 55 mm
