Product description

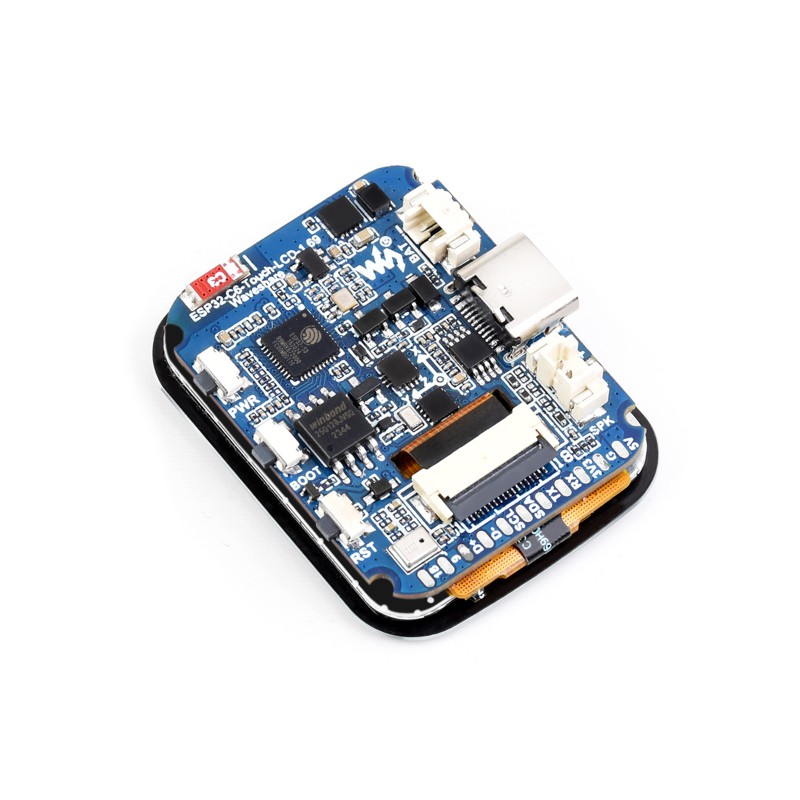

Development board with ESP32-C6 and 1.69" IPS display with touch. Based on ESP32-C6, equipped with touch screen and several built-in sensors. The board is aimed at applications and interactive systems where wireless communication, motion detection, sound and touch input are needed. Perfect for prototypes, embedded systems and experiments where multiple functions are combined. Supplied with external speaker.
Specifications:
- Processor: 32-bit RISC-V, up to 160 MHz, with support for low-power core at reduced clock frequency
- Wireless communication: Wi-Fi 6, Bluetooth 5, IEEE 802.15.4 (for protocols such as Thread/Zigbee)
- Memory & storage: ROM: 320 KB, HP SRAM: 512 KB, LP SRAM: 16 KB, flash storage: 16 MB

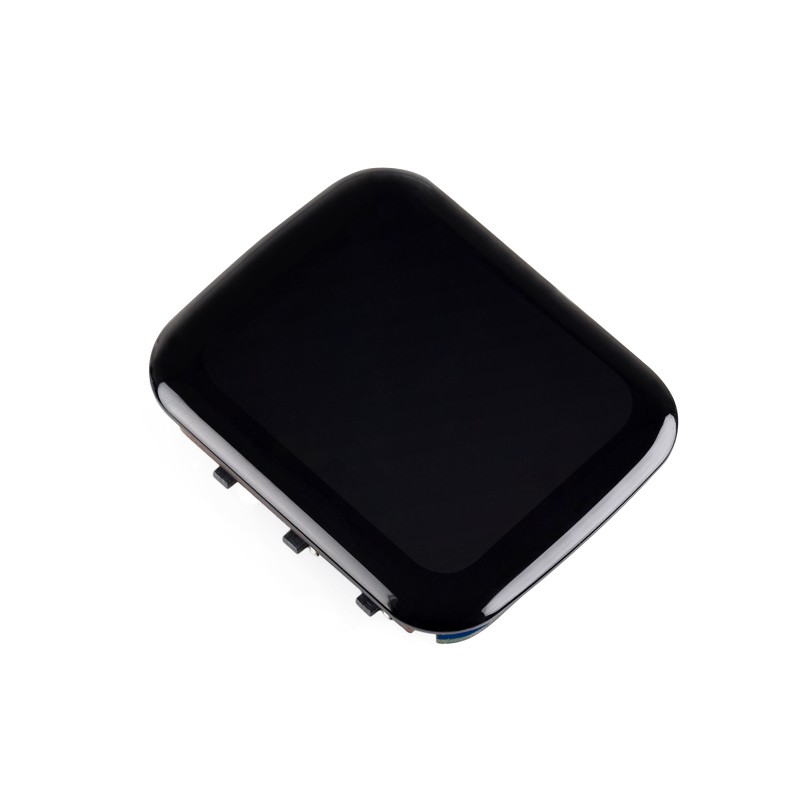

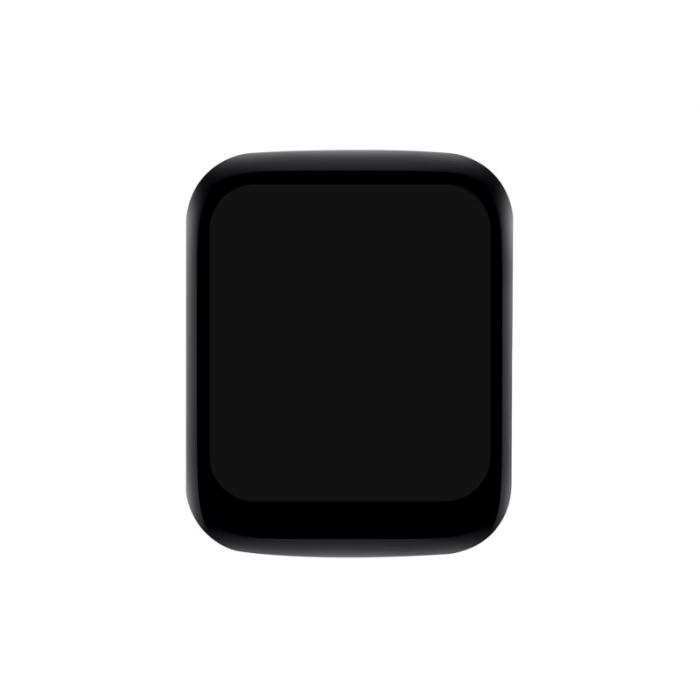

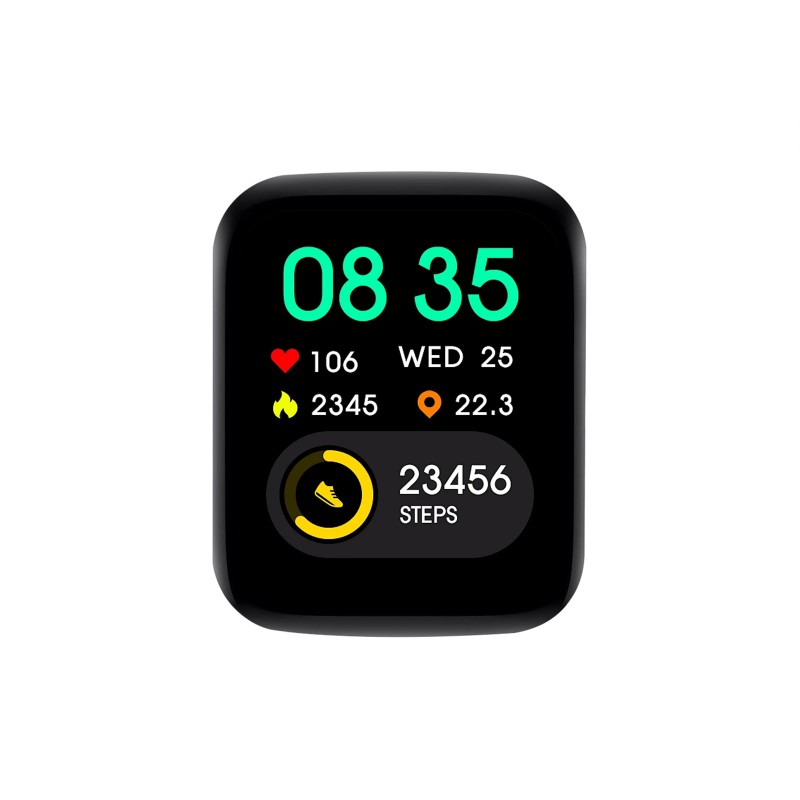

- Display: 1.69" IPS panel, resolution 240 × 280 px, 262K colours
- Display/touch interface: SPI via ST7789V2 driver, capacitive touchscreen CST816T (I²C)
- Dimensions: 41 x 33 x 28 mm
Sensors & peripherals:
- 6-axis IMU – accelerometer + gyroscope (QMI8658)
- RTC circuit (PCF85063) for time/date functions
- Audio codec, microphone and speaker (class D amplifier)
- Power supply: Charge/discharge management for Li-ion battery (3.7 V) with pin header for battery connection. USB-C is used for charging, programming and power supply.

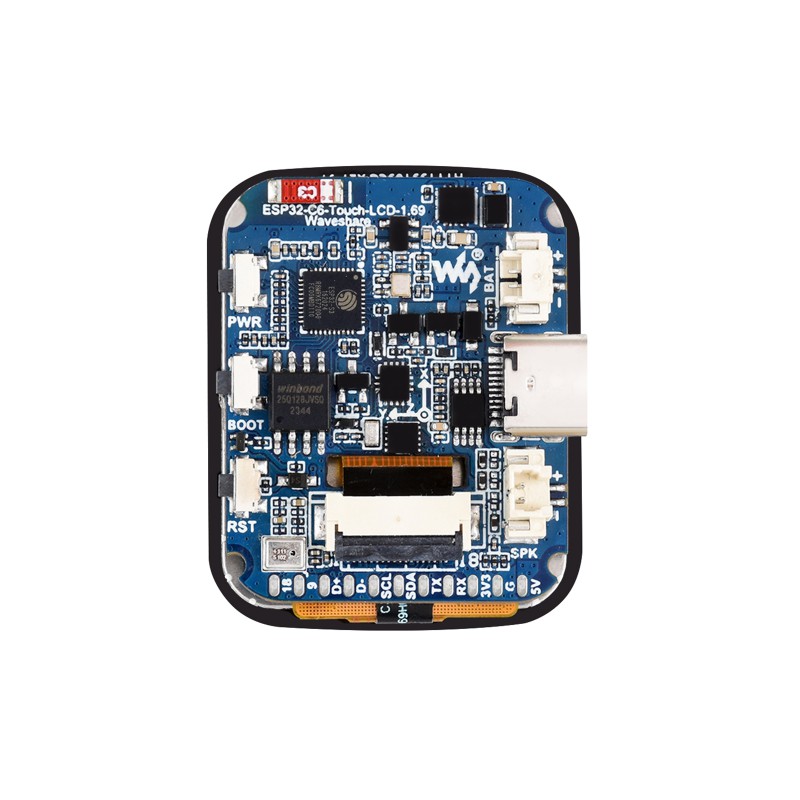

- Connections & controls: RST, BOOT and programmable side button. Reserved pads for GPIO, I²C, UART and USB for debugging and expansion.
Features:
- Multifunctional board with touchscreen, sensors, audio components and wireless communication – reduces the need for separate modules in prototype and product development
- Compact format with integrated display and power management makes it practical for portable applications
- Wi-Fi 6 and Bluetooth 5 provide higher bandwidth, lower latency and energy-efficient wireless communication
- Low-power modes and the ability to select modules and peripherals based on energy requirements make the board well suited for battery-powered systems
- IPS display with high contrast and brightness, as well as capacitive touch functionality, provides good visualisation and a user-friendly interface
