Product description

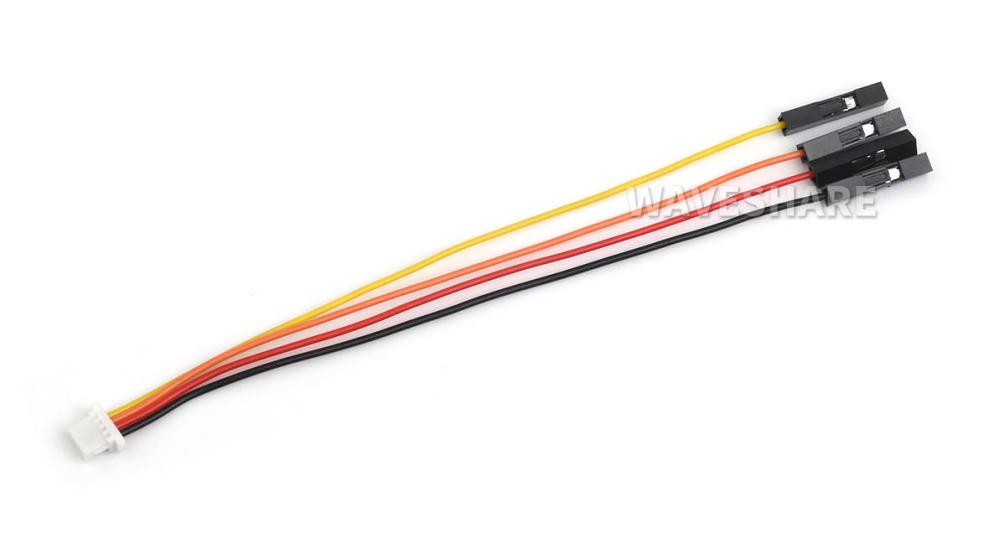

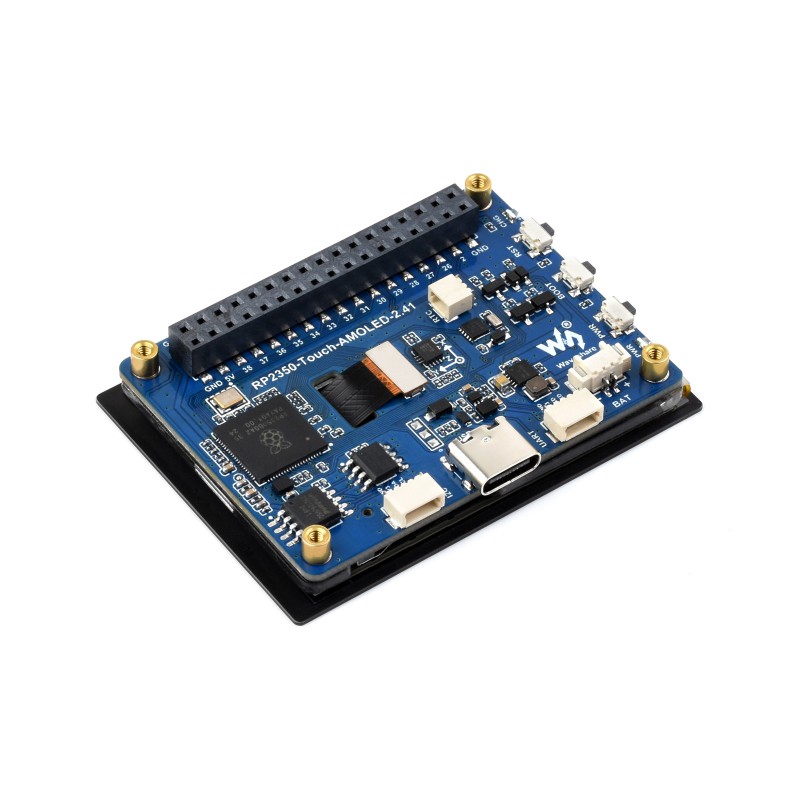

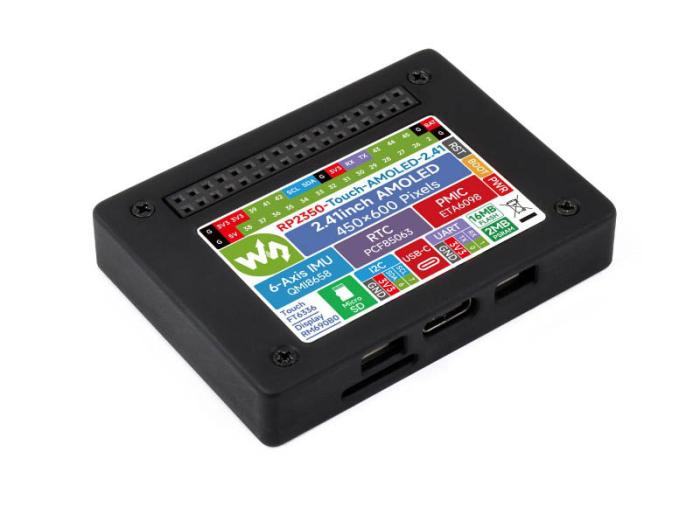

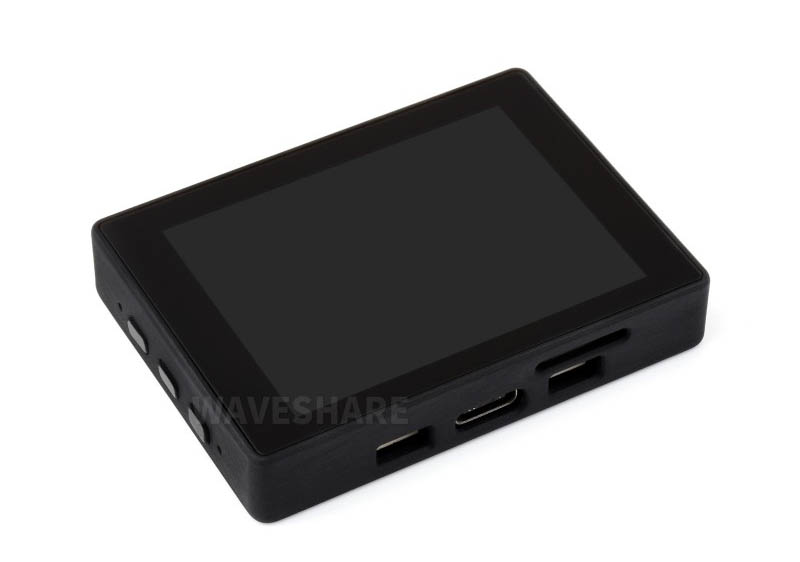

RP2350 Touch AMOLED 2.41 is a development board designed for applications requiring sharp graphics, touch control, and sensors in a compact format. It is well suited for portable devices, IoT control, and prototyping. Enclosure: Built into box. Supplied with JST-SH1.0 4-pin cable to 4x Dupont connectors (female).
Specifications:
- MCU (processor): Raspberry Pi RP2350B, dual-core, up to 150 MHz
- RAM / Storage: 520 KB SRAM, 16 MB flash, and 2 MB PSRAM

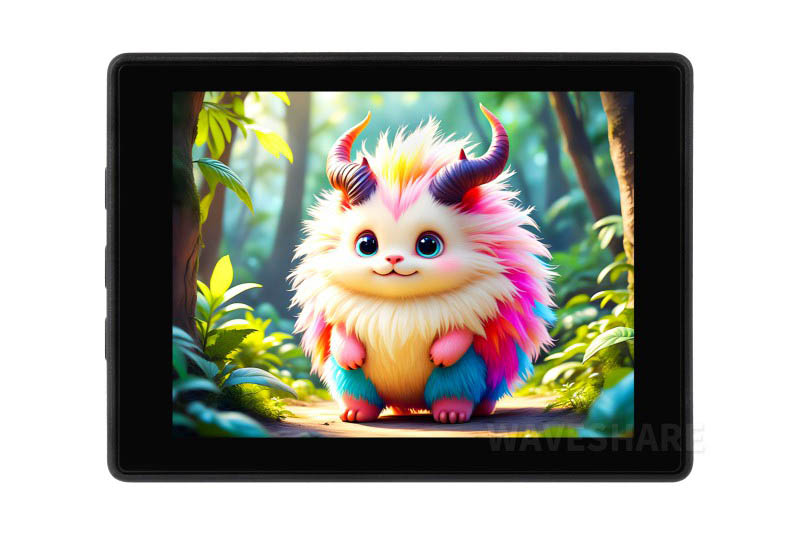

- Display: 2.41-inch AMOLED with capacitive touch
- Resolution / color depth: 450 × 600 pixels, 16.7 million colors
- Display / touch interface: RM690B0 (AMOLED driver), FT6336 (touch), display via SPI, touch via I²C
- Brightness / contrast / viewing angles: 800 cd/m² brightness, 100,000:1 contrast ratio, 178° wide viewing angle
- Power supply & battery management: Connection for 3.7 V lithium battery with charge/discharge management circuit
- USB-C port: For programming and power supply
- Power modes: Low-power mode, sleep mode, and dormant mode to reduce power consumption when not in active use
- Programming / development environment: Support for C/C++, MicroPython, Arduino IDE.
- SDK and documentation available on the Wiki
- Dimensions: 61.6 x 44.7 x 11.5 mm

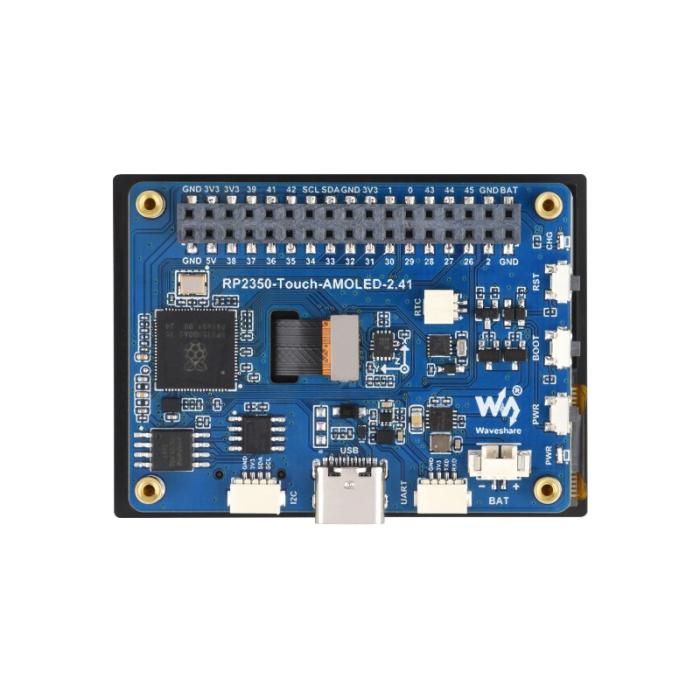

I/O and peripherals:
- Built-in 6-axis sensor (accelerometer + gyroscope)
- RTC clock
- Temperature sensor
- TF card slot
- Multiple GPIOs: typical support for I²C, UART, ADC, PWM
- USB 1.1 with both host and device mode
Advantages:
- High graphic quality and responsive touch control: AMOLED panel delivers superior color accuracy and contrast compared to many LCD solutions, especially in low-light environments
- Flexible processor architecture: Choice between Cortex-M33 and Hazard3 RISC-V cores enables optimization depending on requirements (performance, power consumption, compatibility)
- Comprehensive built-in peripherals: Sensors, RTC, and battery management reduce the need for external modules and simplify system design
- Portable applications: USB-C and integrated battery management make the board ideal for mobile and battery-powered solutions
- Broad development support: Compatible with multiple programming environments, enabling rapid prototyping and flexibility for developers with different backgrounds
