Product description

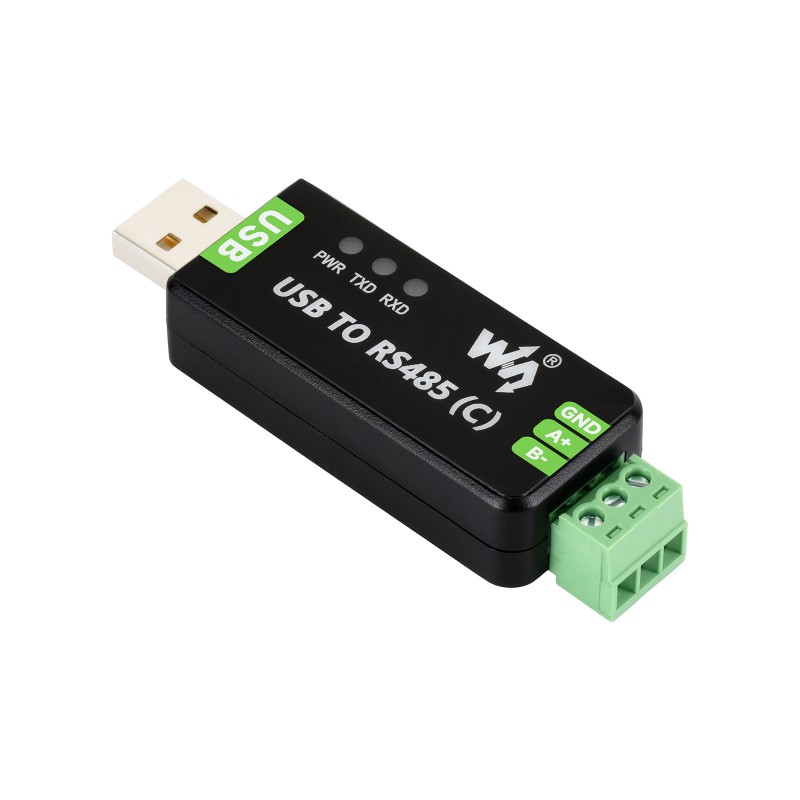

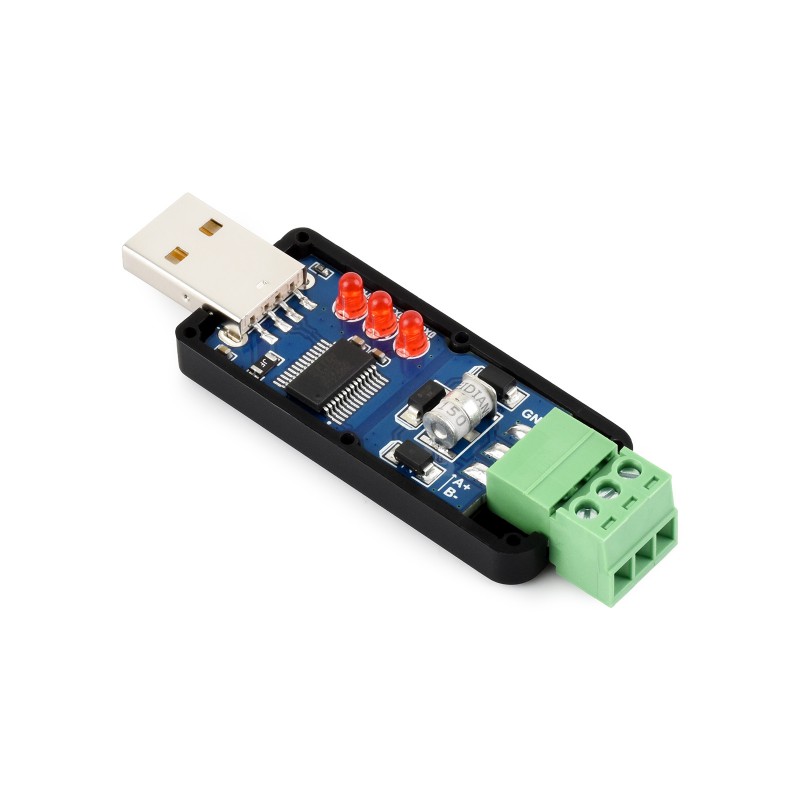

USB to RS485 converter with galvanic isolation and USB-A connector. Converts a USB port to RS485 for reliable serial communication in industrial environments. Based on the FT232RNL chip and supports bidirectional conversion between USB and RS485. The galvanically isolated design, combined with overvoltage, ESD, and overcurrent protection, provides high noise immunity and protects both the computer and connected equipment. Suitable for industrial automation, Modbus communication, PLC systems, data logging, and RS485 communication.
Features:
- Supports bidirectional USB to RS485 conversion

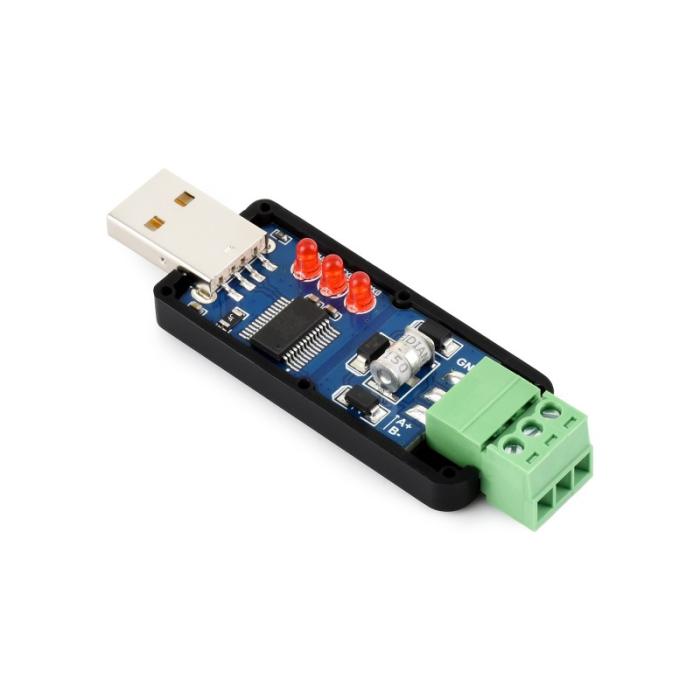

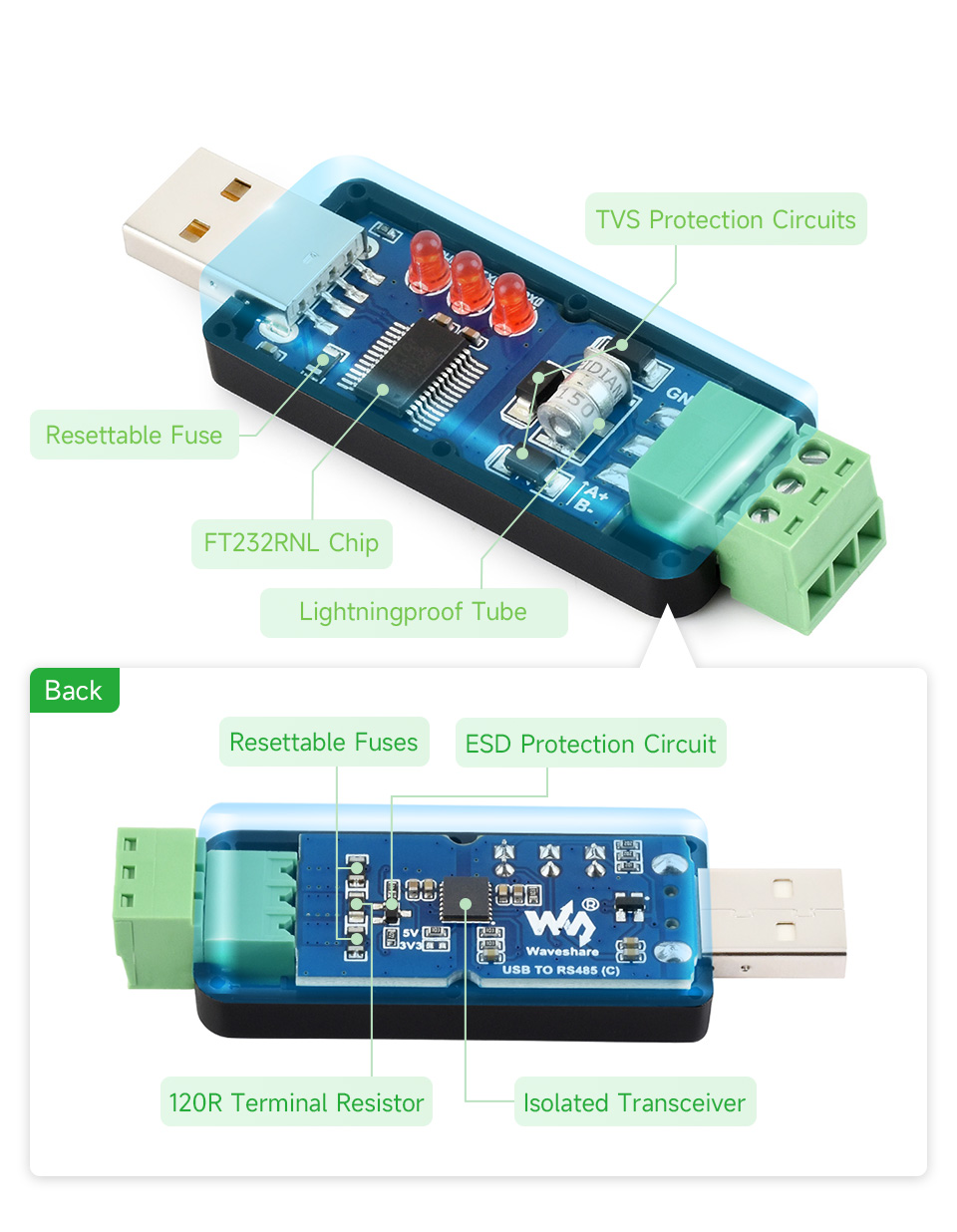

- Onboard FTDI FT232RNL chip for high-speed, stable, and reliable communication with excellent compatibility
- Onboard galvanically isolated RS485 transceiver with integrated electrical isolation and ESD protection, improving communication stability and noise immunity in industrial environments
- Onboard TVS (Transient Voltage Suppressor) diode that effectively suppresses transient voltages and provides excellent protection against electrostatic discharge and overvoltage
- Onboard resettable fuses and protection diodes providing overcurrent and overvoltage protection while ensuring stable current and voltage supply

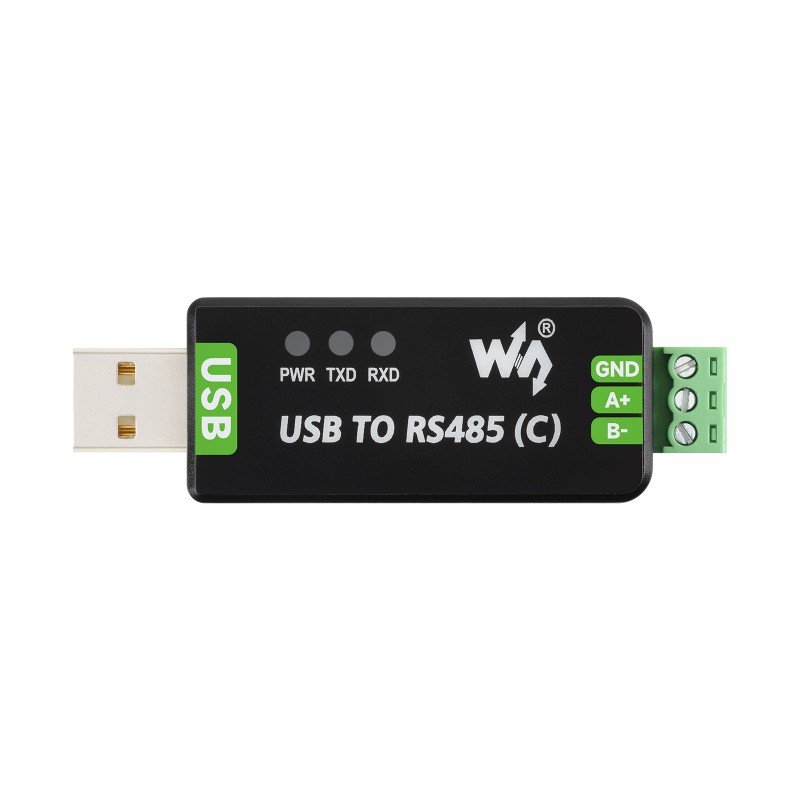

- Three LEDs indicating power, transmit, and receive status
- Supports Windows, Linux, macOS, and Android
- Suitable for Modbus, industrial automation, and serial communication
Specifications:
- Type: USB to RS485 converter
- USB connector: USB-A
- Communication chip: FT232RNL
- Interface: RS485

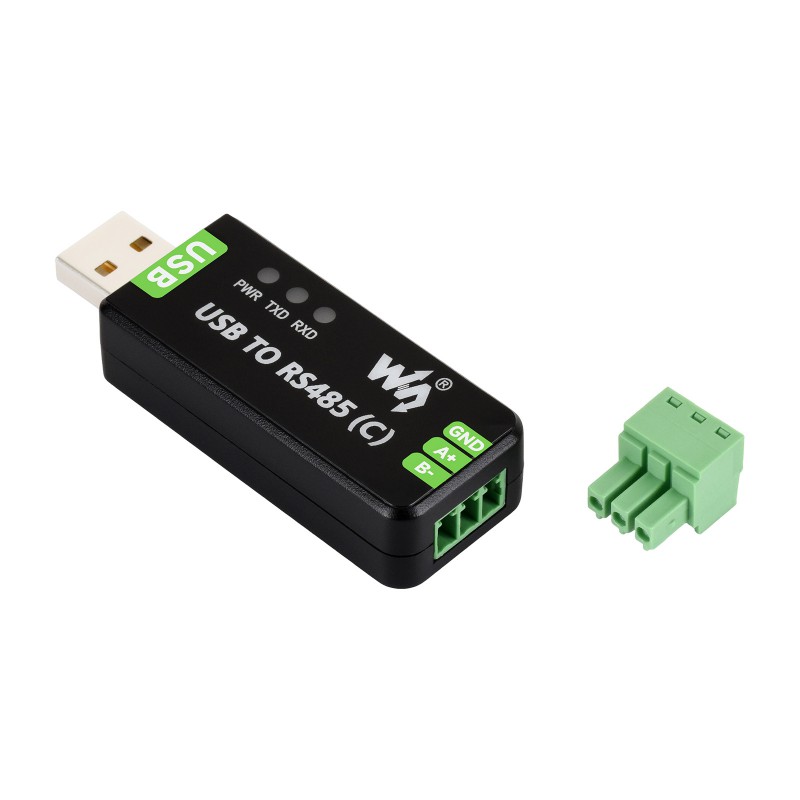

- RS485 connection: Screw terminal (A+, B-, GND)
- Baud rate: 300 to 512000 bps
- Galvanic isolation: Yes
- Isolation voltage: 2.5 kV (optically isolated)
- Termination resistor: 120 Ω
- Surge protection: 600 W
- ESD protection: ±15 kV

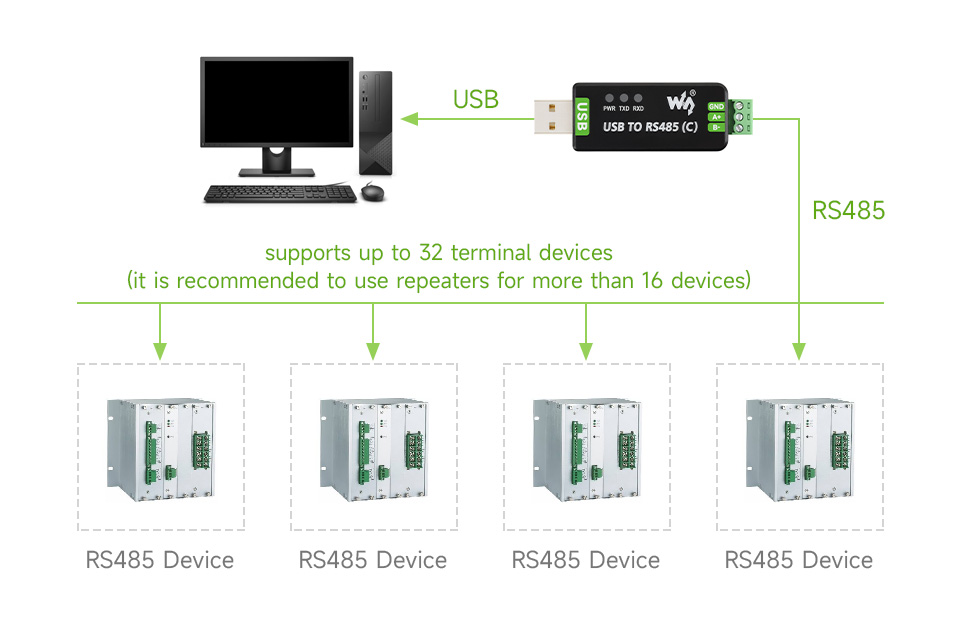

- Max. number of RS485 nodes: 32, repeater recommended for more than 16 nodes
- Max. transmission distance (RS485): Up to 1200 m (depending on baud rate)
- Max. USB cable length: Approx. 5 m
- Supply voltage: 5 V via USB
- Operating temperature: -40 to +85 °C
