Product description

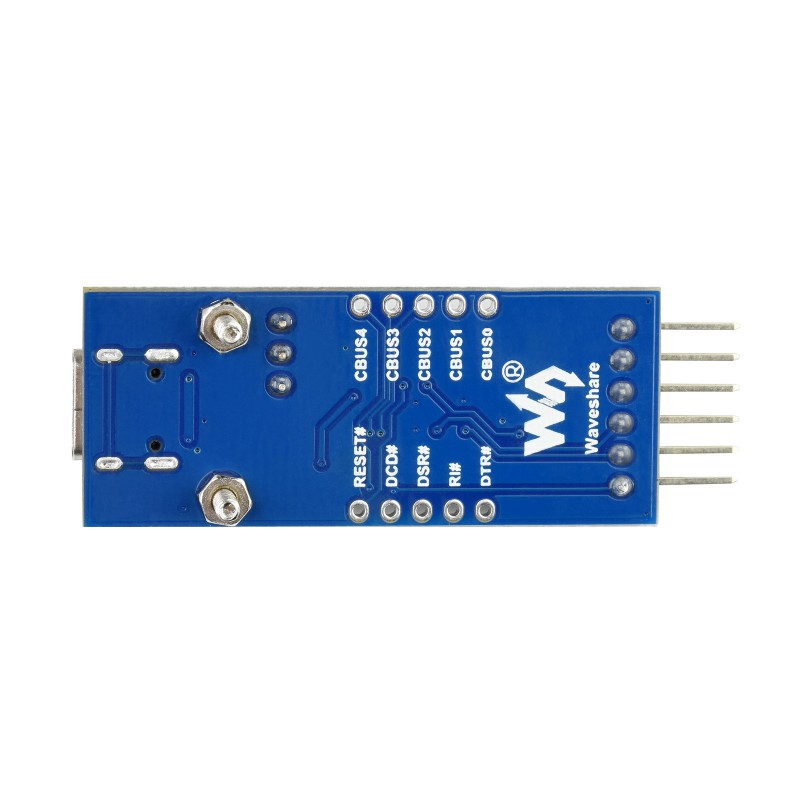

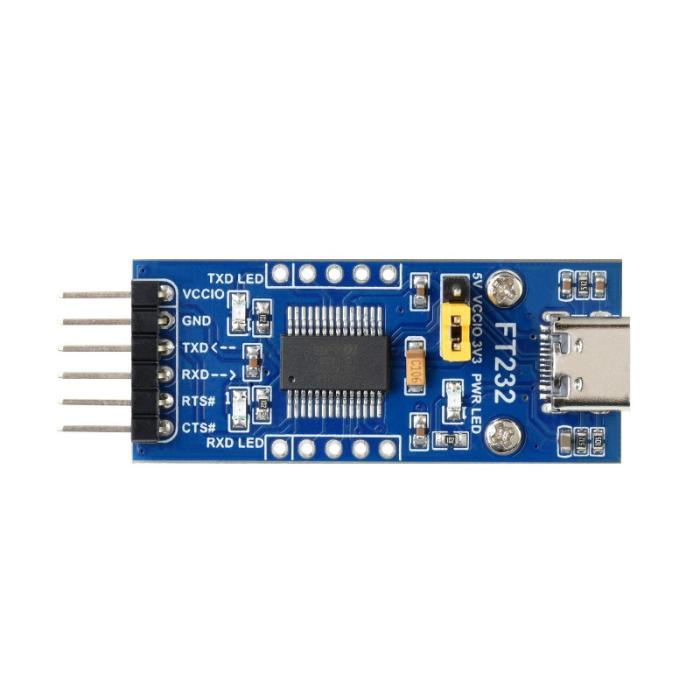

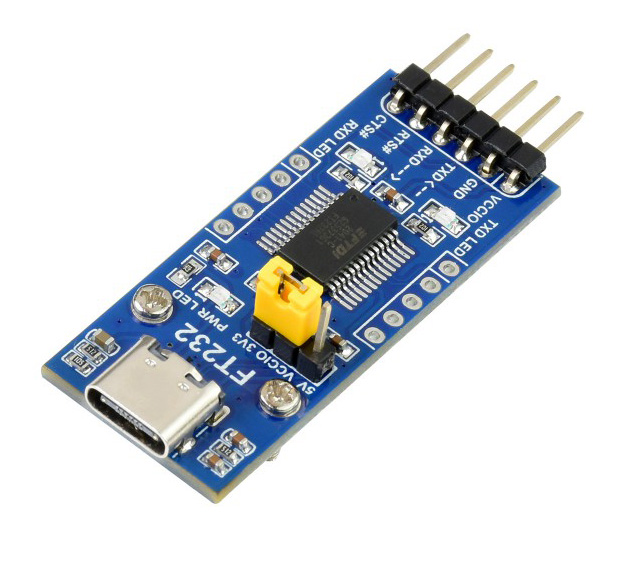

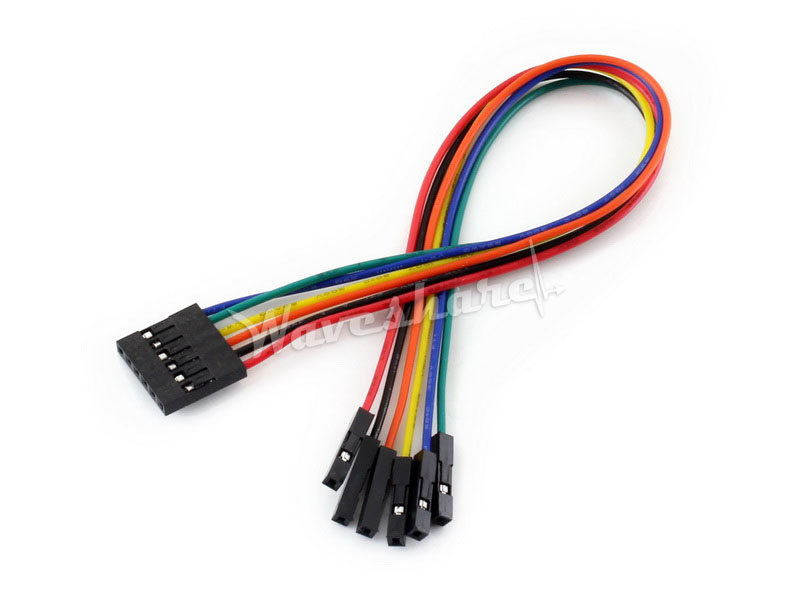

USB-C to UART TTL serial module based on FTDI’s popular controller FT232RNL. Intended for serial programming and debugging. Supports hardware flow control (RTS/CTS). Converts a computer’s USB interface to UART with TTL levels at 3.3 or 5 V. Equipped with a 6-pin connector breaking out I/O signals and voltage. Supplied with a connection cable to 6× dupont female.
Specifications:
- Controller: FTDI FT232RNL
- Host interface: USB-C
- Device interface: UART (TTL level)
- Communication speed: 300 bps to 3 Mbps
- Logic level: 3.3 V or 5 V
- VCC output voltage: 3.3 or 5 V (selectable via jumper)
- LED indication: PWR, TXD, RXD
- Dimensions: 46 x 19 mm
- Compatibility: Windows 7/8/8.1/10/11, macOS, Linux, Android
- Connections (6-pin): VCC (3.3 or 5V), GND, TXD, RXD, RTS, CTS
