Product description

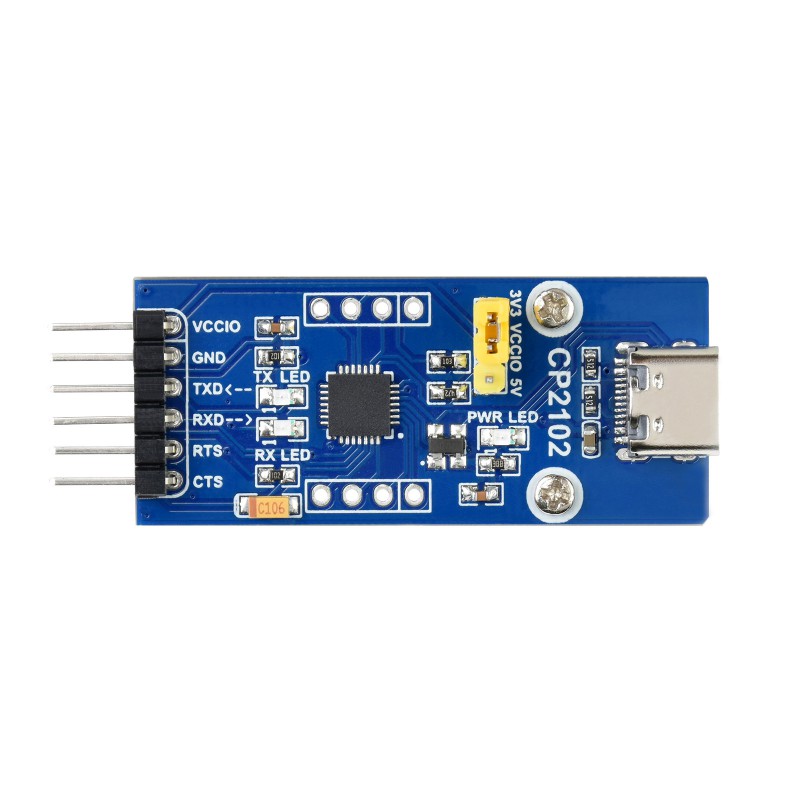

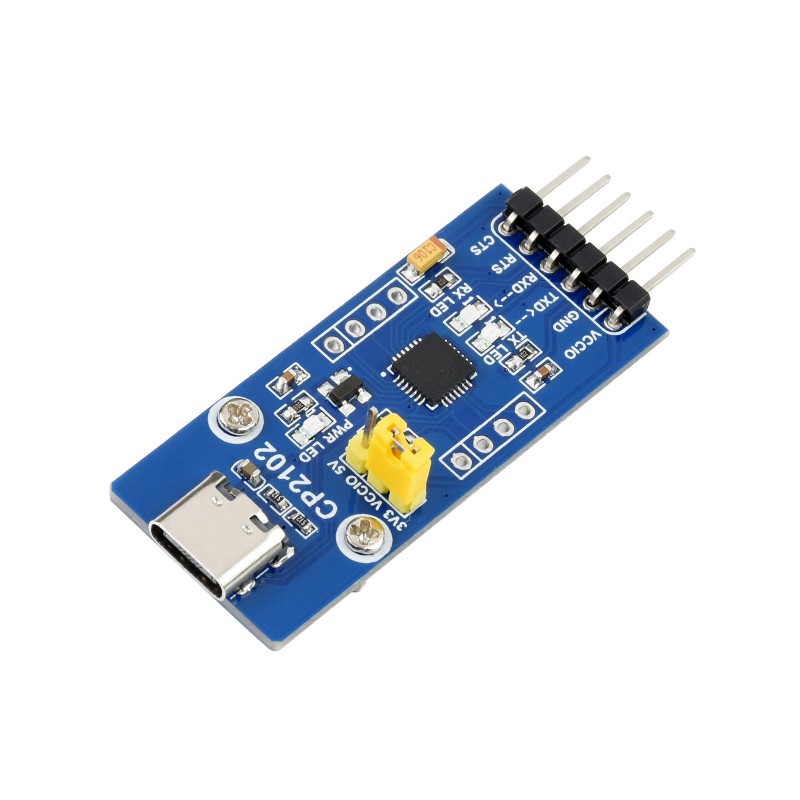

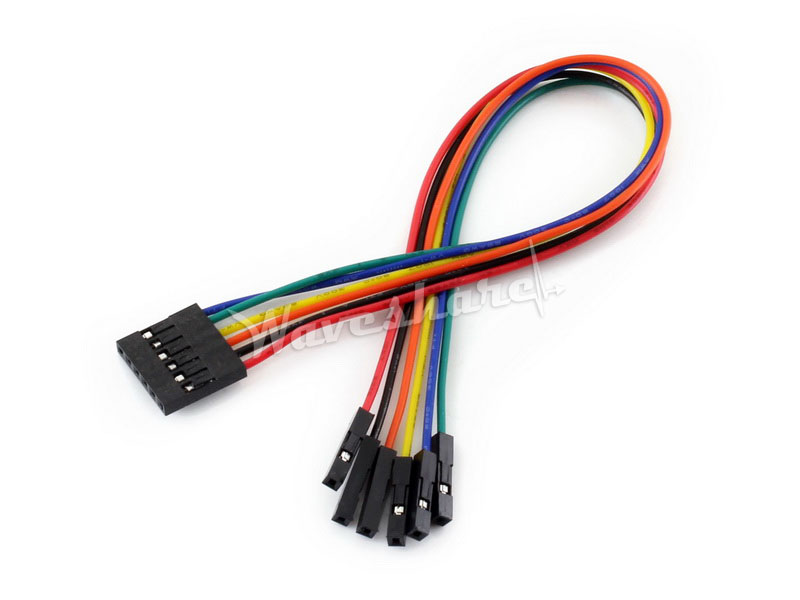

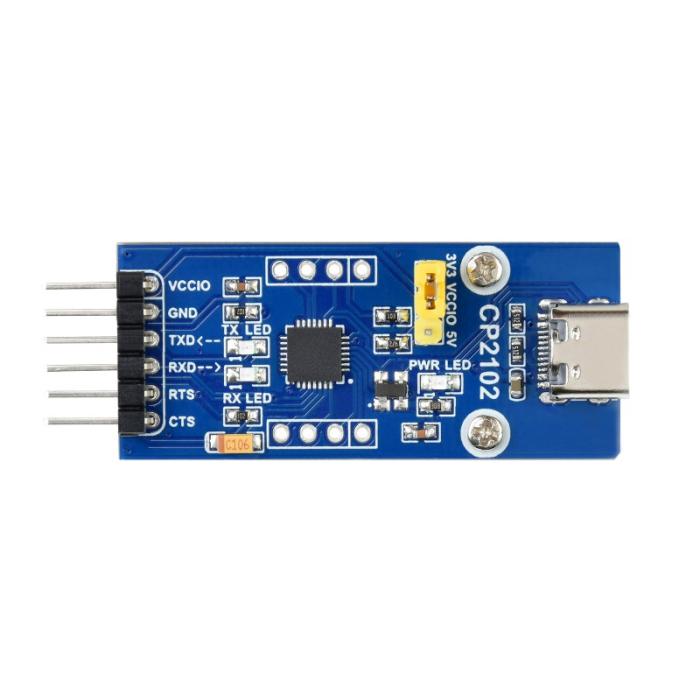

USB-C to UART TTL serial module with CP2102 controller. Intended for serial programming and debugging. Features hardware flow control (RTS/CTS). Converts a computer’s USB interface to UART with a TTL level of 3.3 V. VCC can be set to 3.3 or 5 V via jumper. Note that the logic level remains 3.3 V regardless of this setting. Equipped with a 6-pin connector that breaks out I/O connections and supply voltage. Connects directly to a breadboard (Breadboard friendly) or via the supplied connection cable with 6× dupont female.
Specifications:

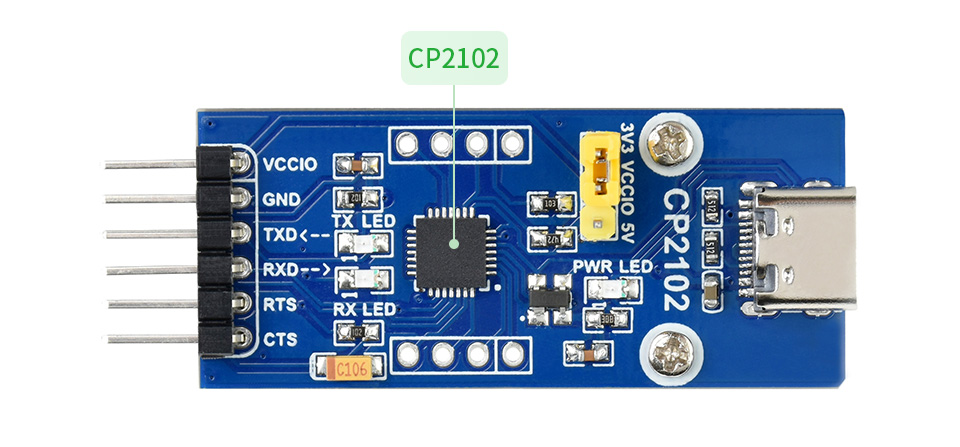

- Controller: CP2102
- Host interface: USB-C
- Device interface: UART (TTL level)
- Communication speed: 300 bps to 1 Mbps
- Logic level: 3.3 V
- VCC output voltage: 3.3 or 5 V (selectable via jumper)
- LED indication: PWR, TXD, RXD
- Dimensions: 47 × 20 mm
- Compatibility: Windows 7/8/8.1/10/11, macOS, Linux, Android
- Connections, 6-pin: VCC (3.3 or 5 V), GND, TXD, RXD, RTS, CTS
