Product description

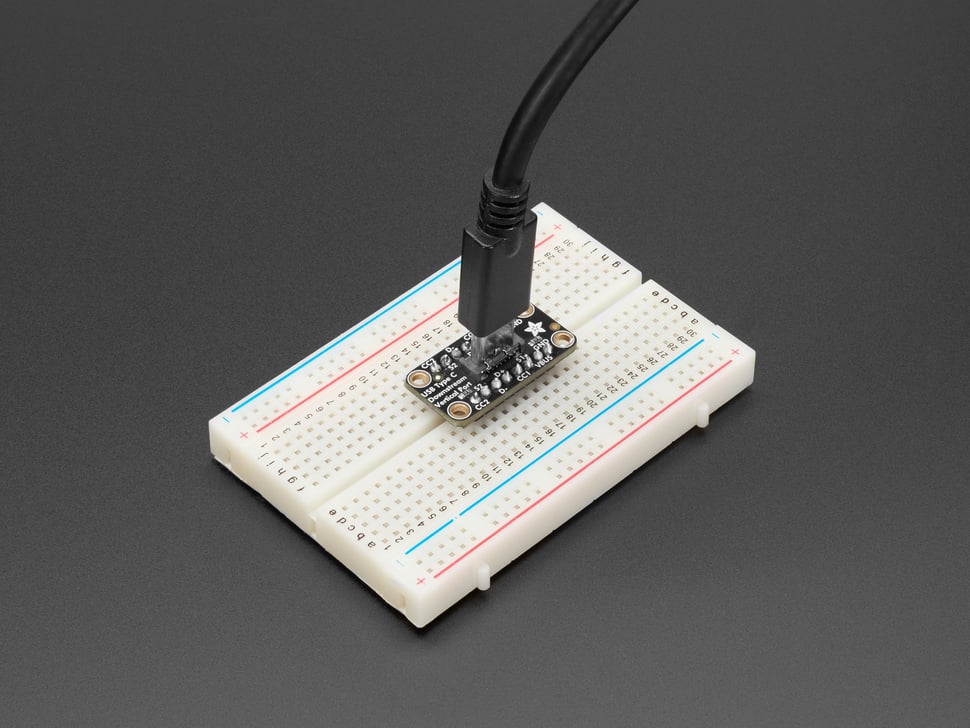

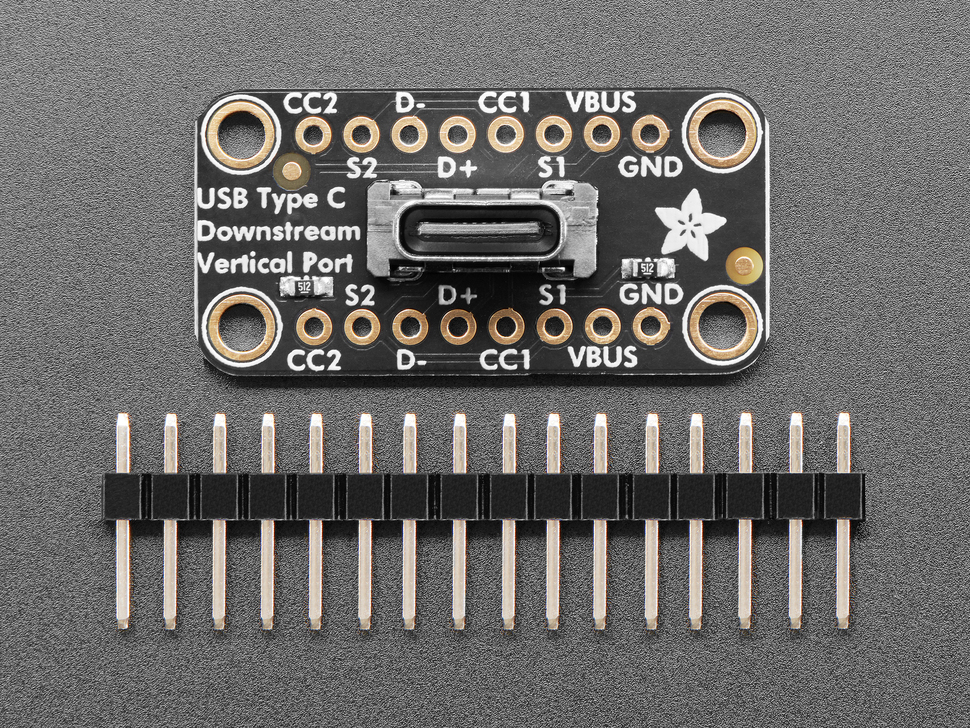

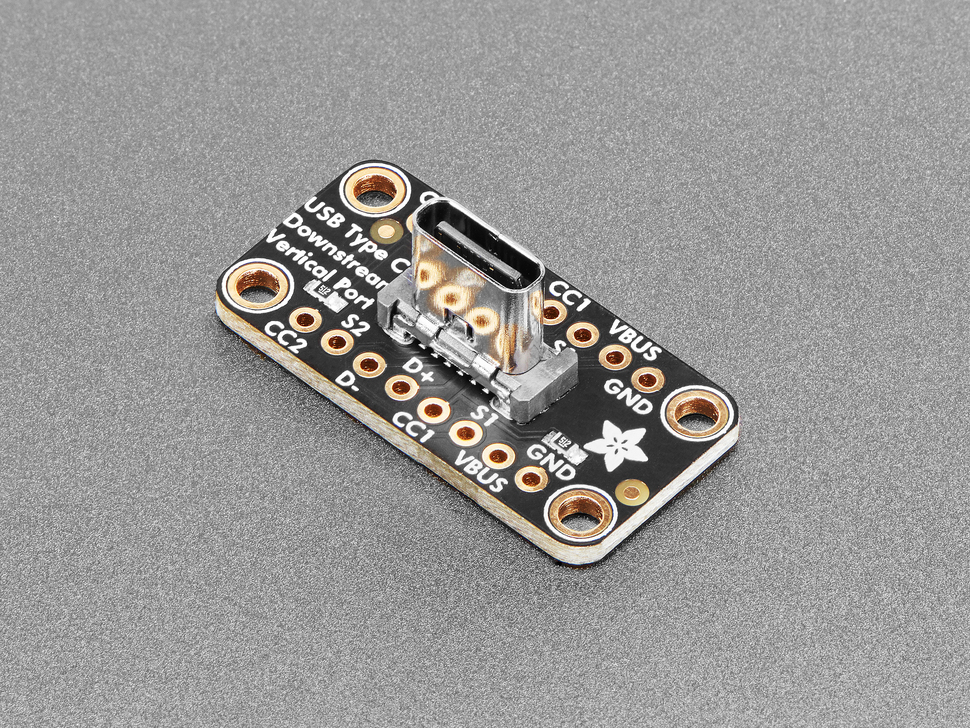

Compact breakout board with a vertically mounted USB-C female connector. Used for integration in prototypes or mounting on a breadboard. The board includes two 5.1 kΩ resistors on the CC pins that signal an upstream port to provide 5 V and up to 1.5 A, depending on what the port can supply. Suitable for both data and 5 V power delivery in accordance with the USB 2.0 specification. Supplied with pin header, not pre-soldered.
Specifications:

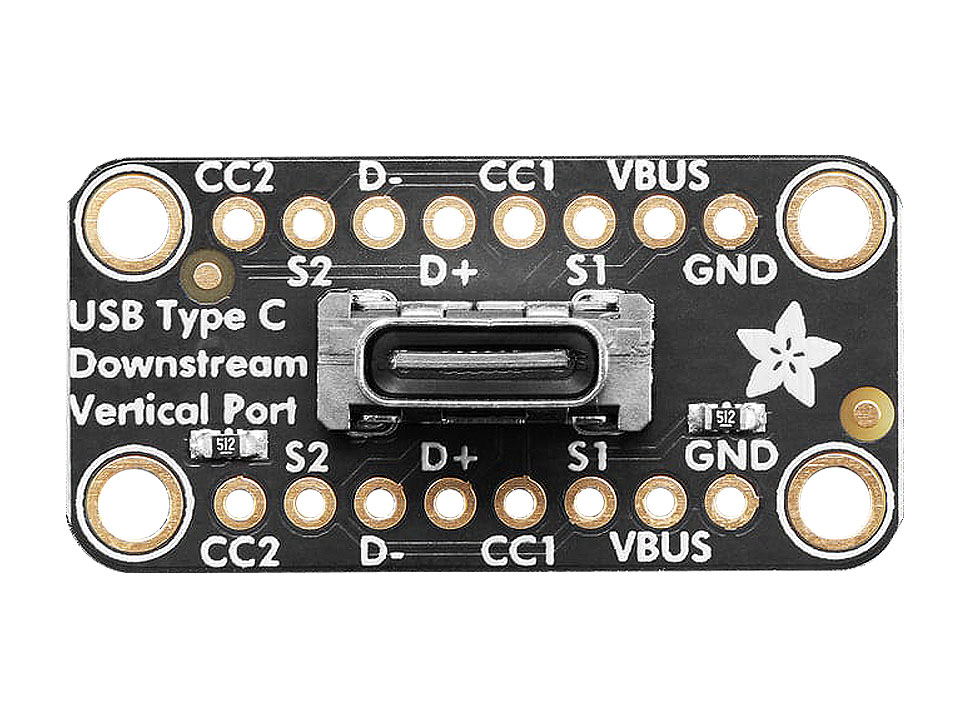

- Connections: VBUS, GND, D+, D–, CC, SBU
- Supply voltage: 5 V
- Current (max): 1.5 A
- Dimensions: 30.5 x 15 x 11 mm
