Product description

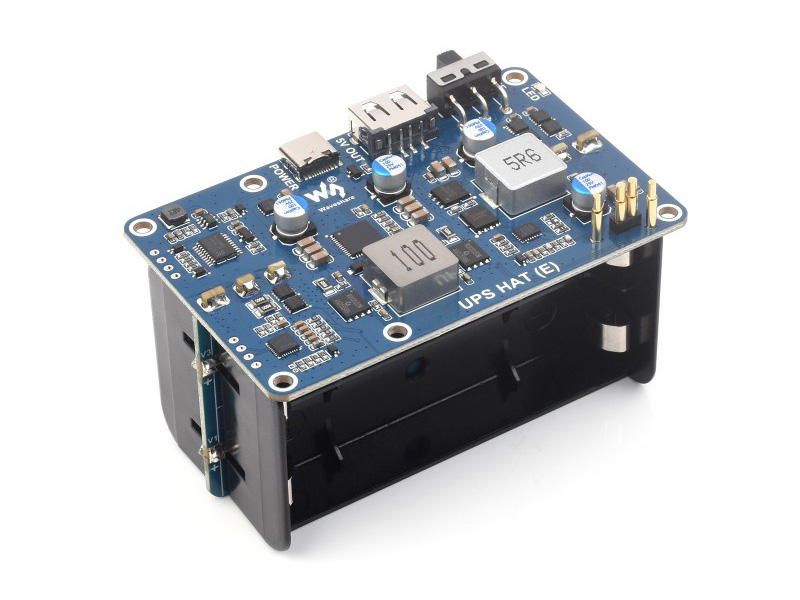

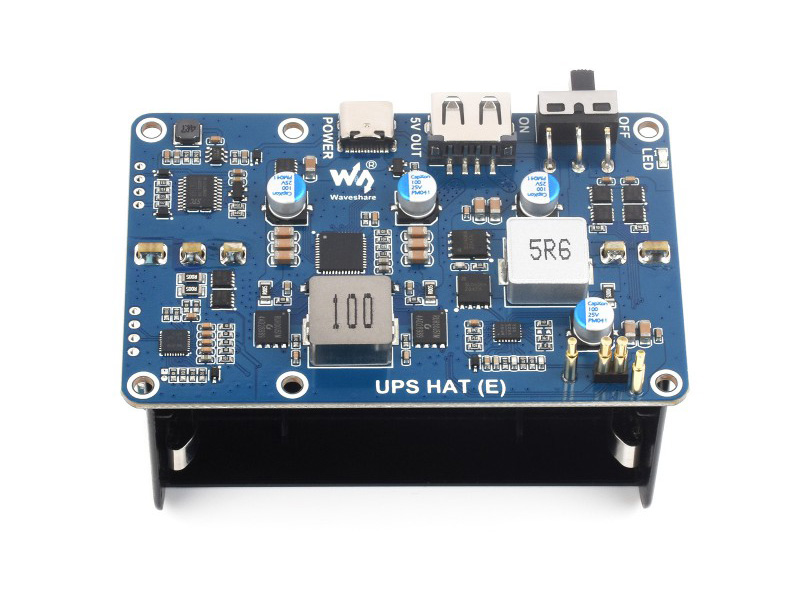

UPS HAT – Robust Power Supply for Raspberry Pi. UPS add-on for Raspberry Pi 5/4/3B+, designed for long-term operation. Seamlessly switches between external power and battery operation without interruption. With safe shutdown of the Raspberry Pi in case of low battery.
Ideal for applications where uninterrupted operation is critical, such as IoT gateways, remote servers, data loggers, or network monitoring. Provides up to approximately 2 hours of runtime under full load, depending on battery capacity.

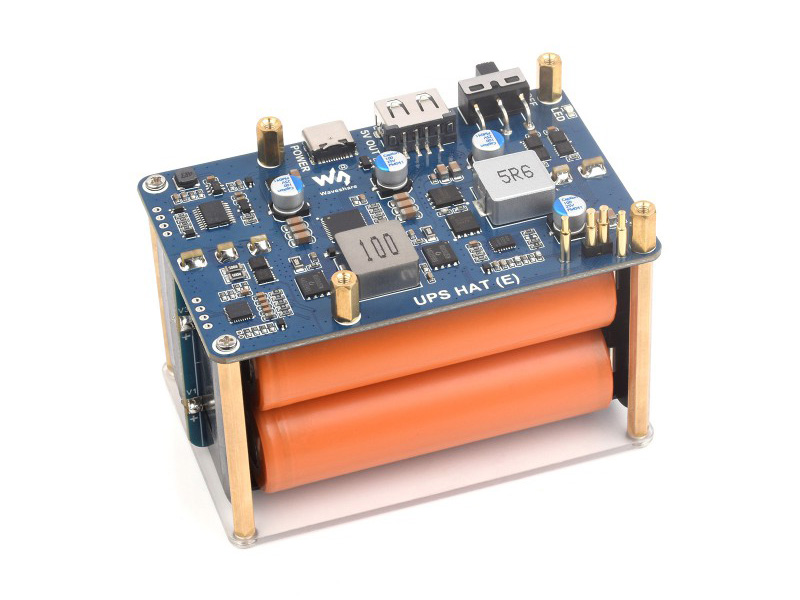

Powered by four 21700 Li-ion cells (not included). Recommended cells: 41022129 or 41032020. The module delivers 5 V / 6 A to the Raspberry Pi via pogo pins.
Specifications:
- Supply voltage: 5 VDC
- Current (max): 6 A

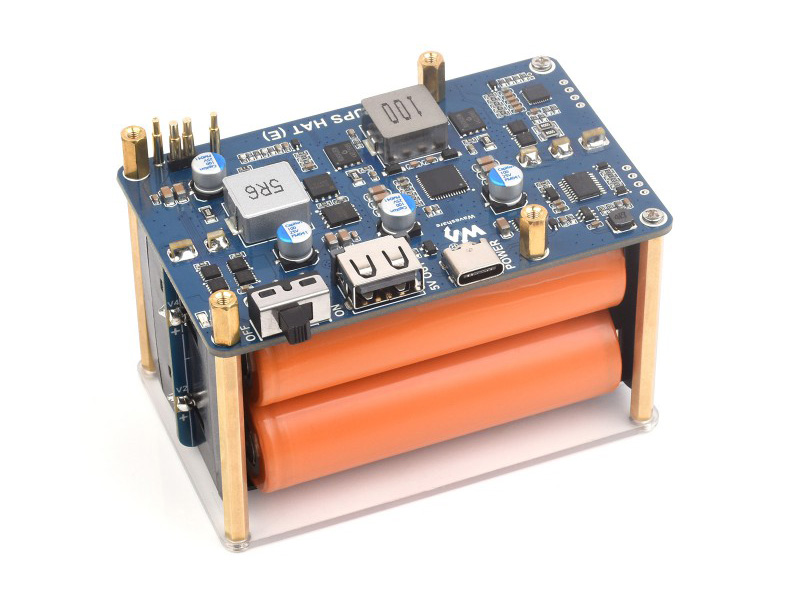

- Battery type: 4× 21700 Li-ion cells
- Charging protocol: USB PD 3.0, up to 40 W
- Communication: I²C (for monitoring and data communication)

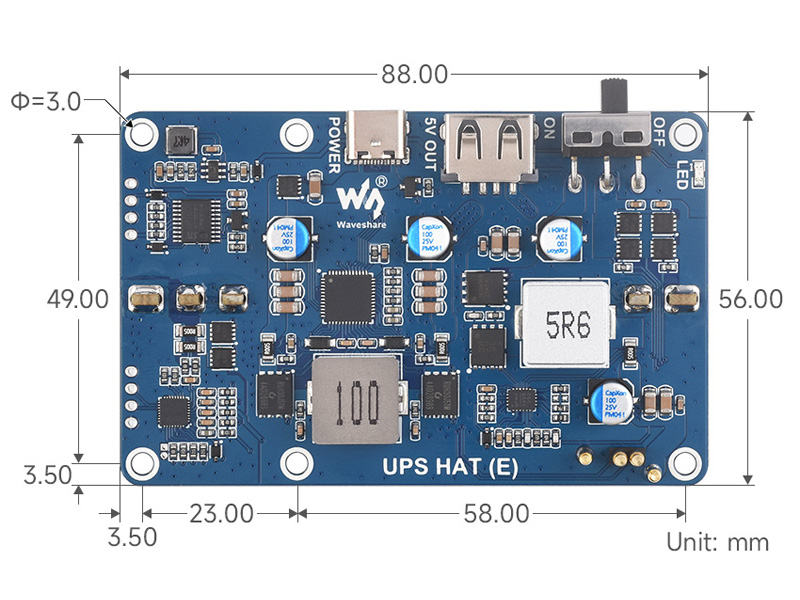

- PCB dimensions: 56 × 88 mm
- Weight: Approx. 127 g
- Compatibility: Raspberry Pi 3B+, 4, and 5
Additional Information:

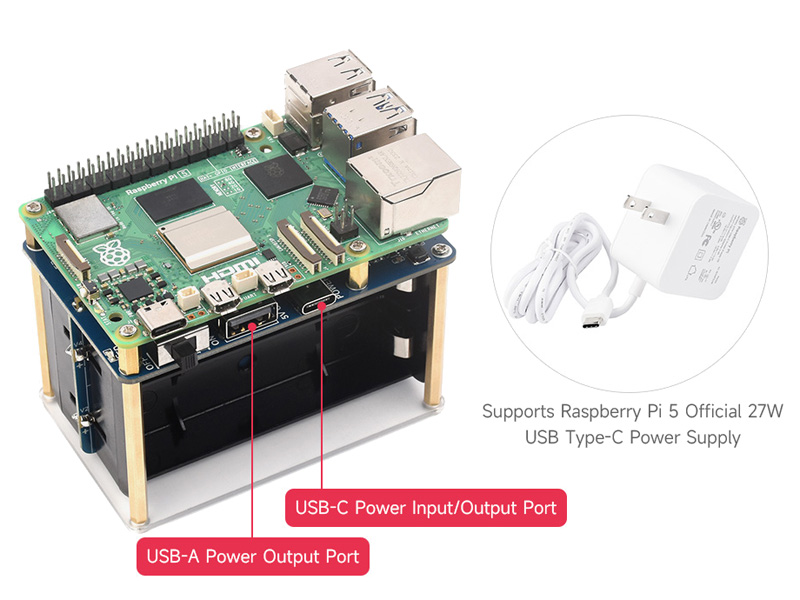

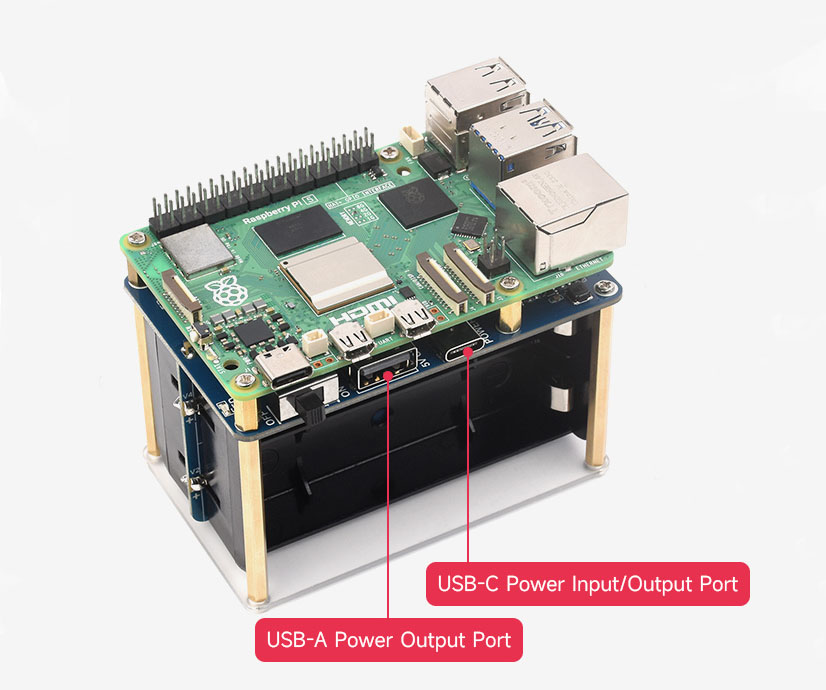

- Charging and power supply via USB-C connector. Supports USB PD chargers up to 40 W.
- Stable 5 V / 6 A power output for Raspberry Pi.

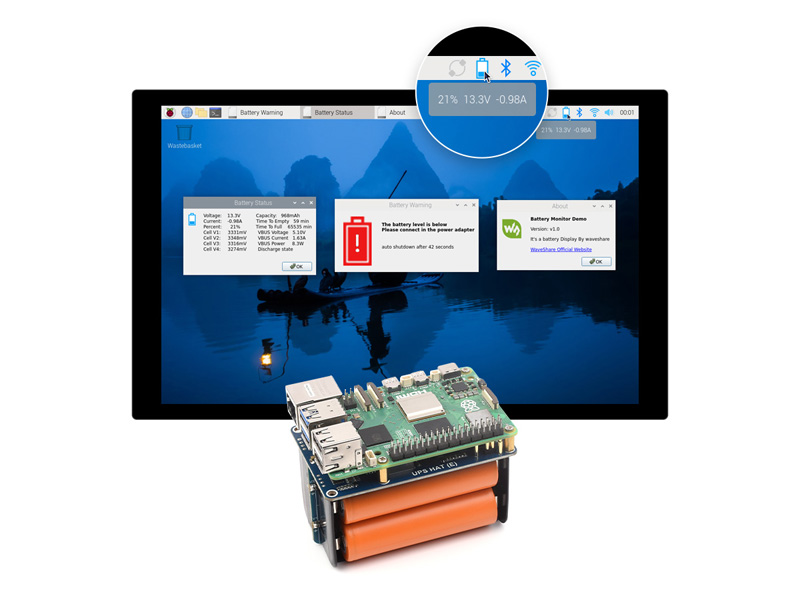

- Real-time monitoring of battery voltage, current, power, and remaining capacity via I²C interface.
- UPS functionality: Seamlessly switches between external power and battery without interruption. Can notify the system on low battery.

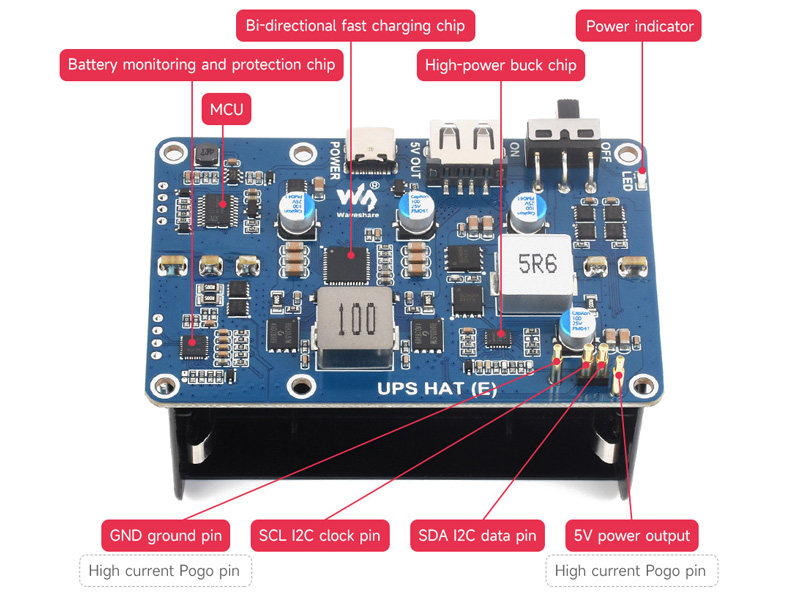

- Pogo pin connection: Power is supplied directly to the Raspberry Pi via pogo pins, keeping the GPIO header available.
- LED indicators and warning system: Visual feedback for battery connection, charging status, and fault detection.
- Mounting: Supplied with acrylic insulator panel, screws, and spacers for stable mounting to the Raspberry Pi.
- Enables safe shutdown of the Raspberry Pi when the battery level is low.
- Protection against overcharge, deep discharge, overcurrent, short circuit, and reverse polarity.
- Due to heat generation at high current levels (4–6 A), active cooling is recommended.
