Product description
UPS module (Uninterruptible Power Supply) for Raspberry Pi Pico / Pico2. Provides stable backup power if/when the external power supply is lost. Includes battery charging functionality and real-time monitoring via the I2C interface.
Specifications:

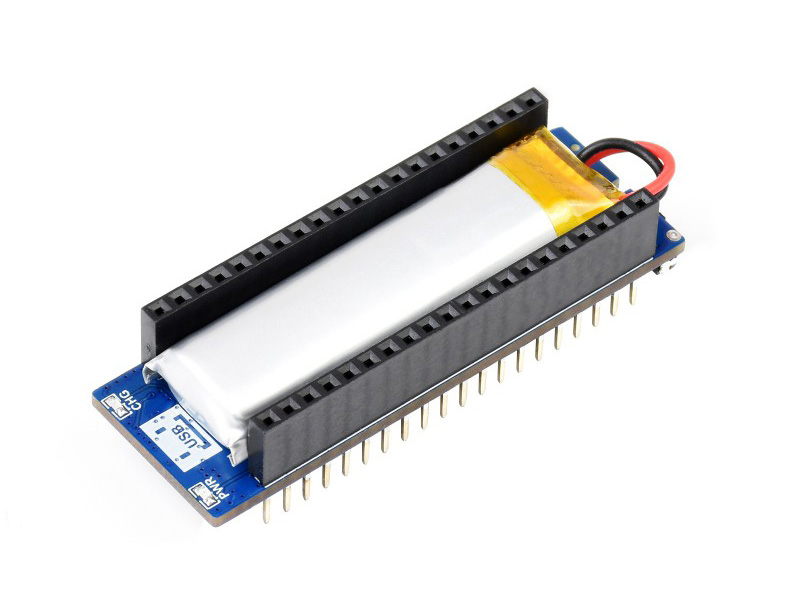

- Li-Po cell support: 3.7V 600 mAh (not included)
- Supply voltage: 5 VDC via micro-USB or 5V via VBUS pin
- Built-in charging circuit: ETA6003
- Monitoring: Via I2C for voltage, current, power and remaining capacity
- Protection: Overcharge, deep discharge, overcurrent, short circuit and reverse polarity
- LED indicators: Charging and power

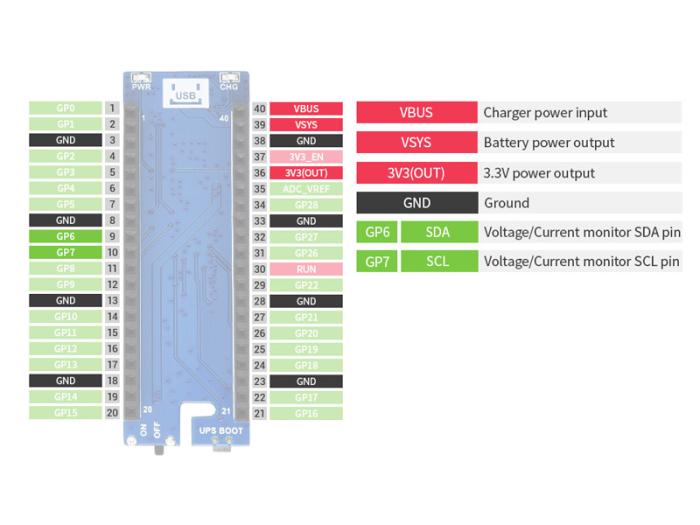

- Mounting: 40-pin header for direct connection to Raspberry Pi Pico. Includes header for stacking
- Development resources available for: C/C++ and MicroPython
- Dimensions: 60 x 21 mm
