Product description

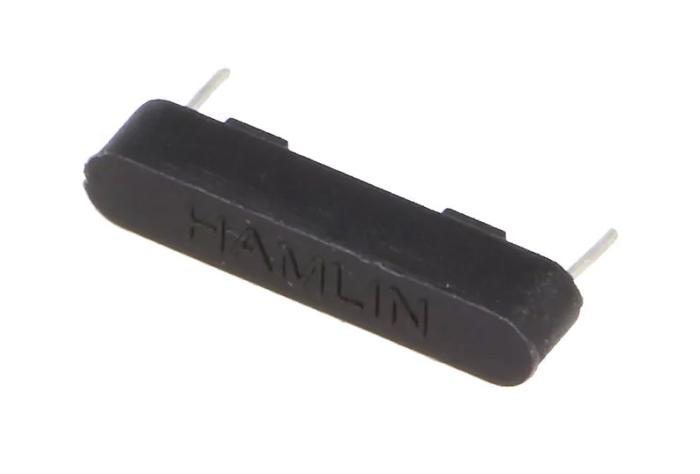

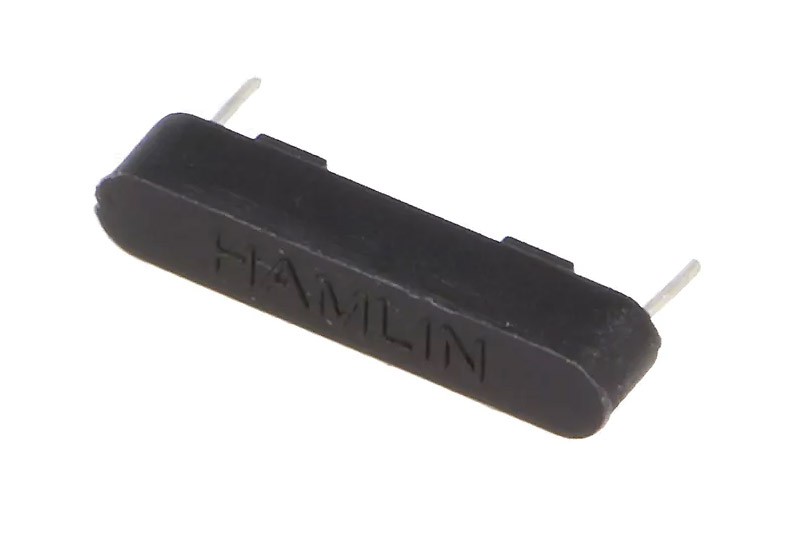

Reed Switch / Magnetic Contact Littelfuse 59045 for PCB Mounting
Littelfuse 59045 is a compact, normally open magnetic contact designed for PCB mounting. Activation is achieved via an external magnet. The hermetically sealed construction ensures long operational life and high resistance to contamination.
Applications:
- Position and limit sensing
- Door sensing
- Intrusion detection and security systems
Specifications:
- Contact type: Normally Open (NO)
- Rated voltage (max): 200 VDC / 140 VAC
- Rated current (max): 0.5 A (DC), 0.35 A (AC)
- Power rating (max): 10 W / 10 VA
- Contact resistance: ≤ 0.2 Ω
- Insulation resistance: ≥ 10⁹ Ω
- Operating temperature: –40 °C to +105 °C
- Dimensions: 17.8 × 4.3 × 3.3 mm
- Mounting: Through-hole (THT)
