Transformer 24VA 2x12V 1A
Art no: 41003145
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description

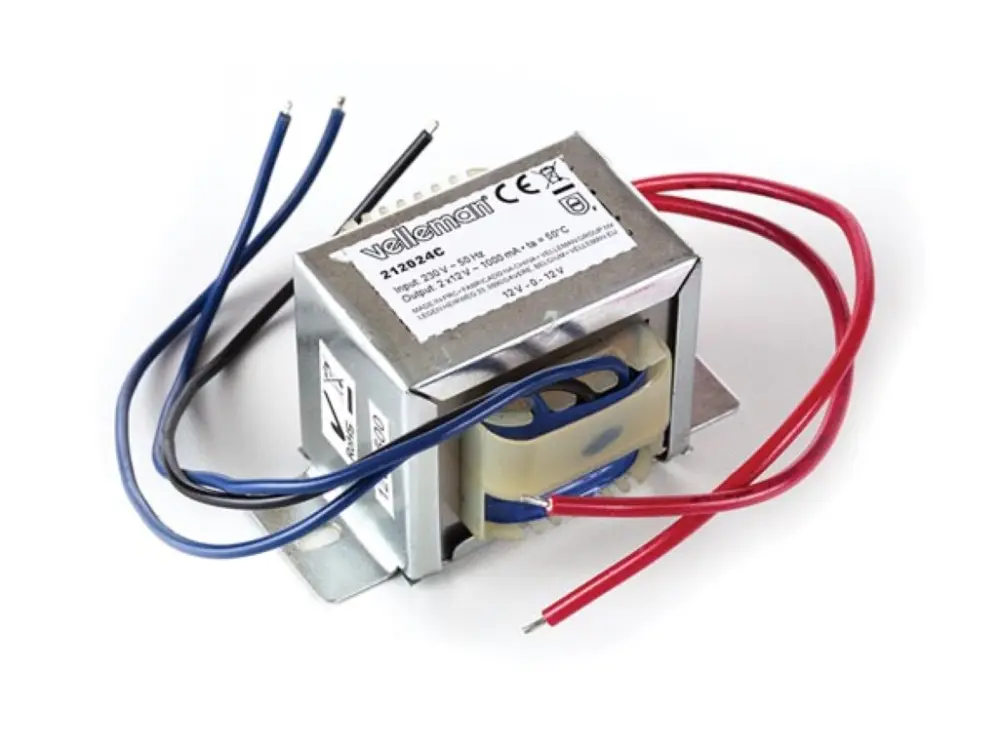

EI transformer with double secondary windings that can be connected in series to provide a bipolar output. The transformer has two mounting holes on each side for chassis mounting.
* Primary: 230VAC / 50Hz [red]
* Secondary: 2 x 12V / 2 x 1.0A [blue]
* Wires: 160mm AWG22
* Weight: 435g
* Dimensions: 42 x 50 x 47mm
* Primary: 230VAC / 50Hz [red]
* Secondary: 2 x 12V / 2 x 1.0A [blue]
* Wires: 160mm AWG22
* Weight: 435g
* Dimensions: 42 x 50 x 47mm
Technical data
| Attribute | Value |
|---|---|
|
Output
|
2x
|
|
Power
|
24 W
|
|
Primary-voltage
|
230 V
|
|
Secondary-voltage
|
12 V
|
SKU:
41003145EAN / GTIN:
5410329337858
