Product description

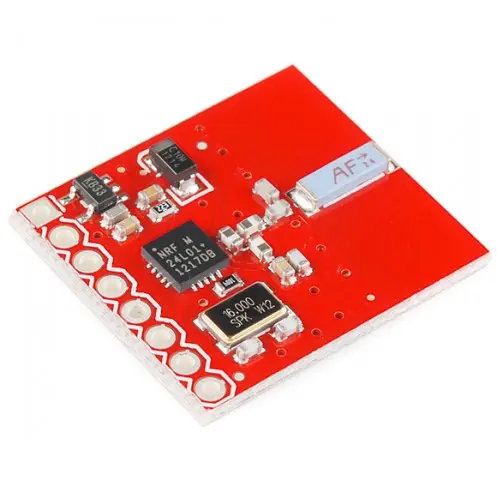

This module uses the newest 2.4GHz transceiver from Nordic Semiconductor, the nRF24L01+. This transceiver IC operates in the 2.4GHz band and has many new features! Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-retransmit feature - very nice!
Please note: We now populate these boards with the nRF24L01+. The '+' version of the IC has improved range, sensitivity, and data rates. The command set is backward compatible with the original nRF24L01.
Features:
* On-board 3.3V LDO Regulator (3.3 to 7V supply allowed)
* On-board ceramic 2.4GHz Antenna
* 100m Range at 250kbps
* 250kbps to 2Mbit Data Rate
* Auto Acknowledge
* Auto Re-Transmit
* Multiceiver - 6 Data Pipes
* 32 Byte separate TX and RX FIFOs
* 5V tolerant input pins
* Software selectable channel from 2400MHz to 2525MHz (125 Selectable channels)
* Minimum number of external components
* Pins broken out : VCC, CE, CSN, SCK, MOSI, MISO, IRQ, GND
* Lots of application notes and support on Nordic Semiconductor Website
