Wireless charging module 5V 1A

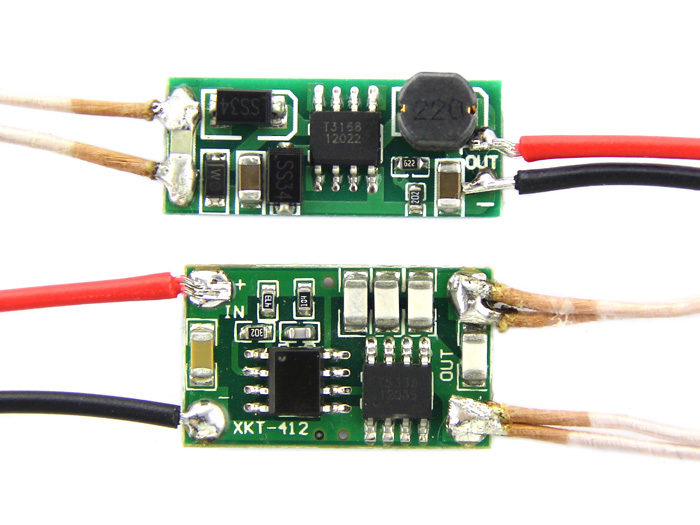

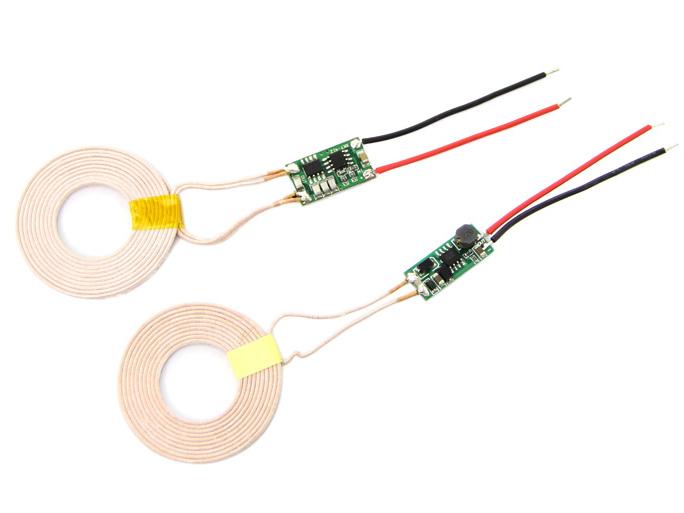

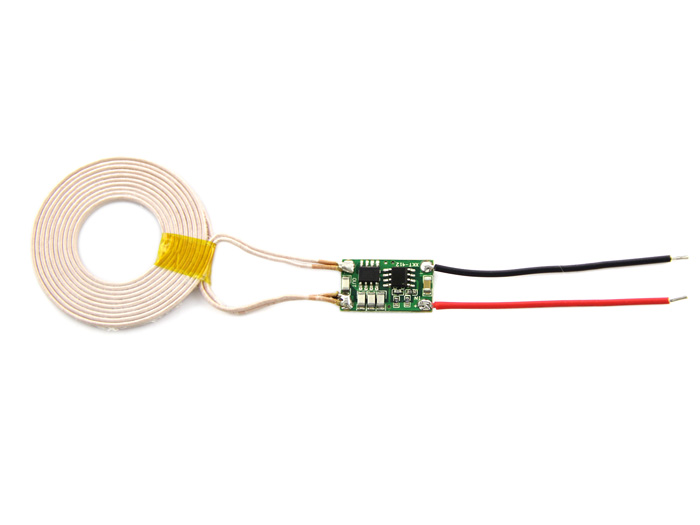

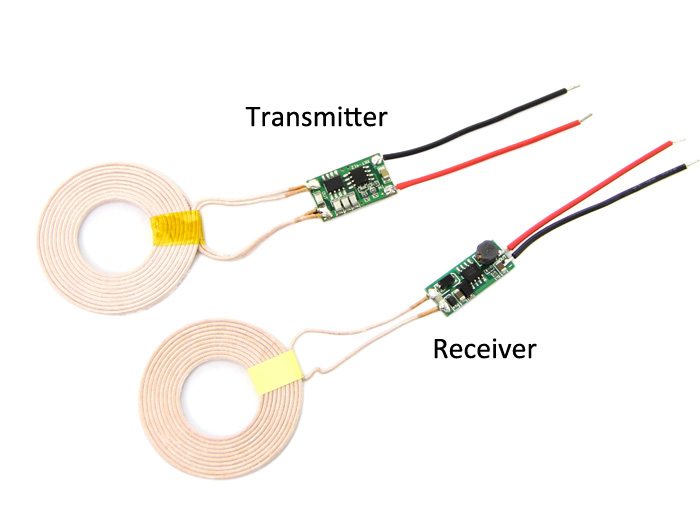

Module for wireless power transmission. The module consists of a transmitter and a reciever with connected coils that when in close proximity can transfer current. Can be used as a wireless charger or power supply.

* Input voltage: 5VDC
* Output voltage: 5VDC
* Max current output: 1.2A
* Current draw (no-load): 30 - 50mA
* Inductance (transmitter): 3.7uH
* Inductance (reciever): 14uH
* Transmission distance: 2 - 10mm
* Dimensions (transmitter): 22.1 x 13.1 x 3.2mm
* Dimensions (reciever): 24.2 x 9.8 x 5.36mm
* Dimensions (coils): ø43 x 2.3mm
