Product description

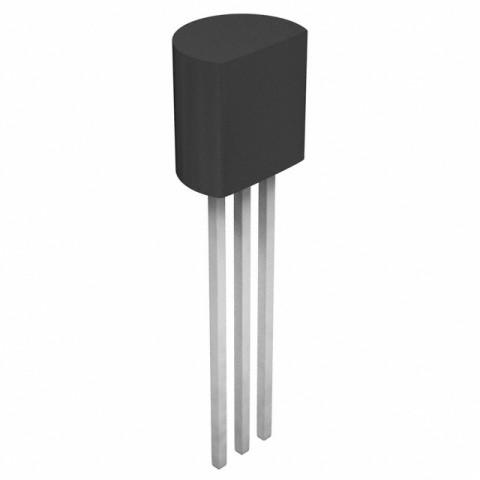

The TMP36 is a linear analog temperature sensor in a TO-92 package, designed for low power consumption and high accuracy. It provides a linear output of 10 mV/°C, simplifying direct interfacing with analog inputs on microcontrollers.
Specifications:
- Temperature range: −40 °C to +125 °C (operational up to +150 °C)
- Output: 10 mV/°C, with 750 mV at 25 °C
- Accuracy: ±2 °C (typical)
- Temperature linearity: ±0.5 °C (typical)
- Supply voltage: 2.7 V to 5.5 V
- Current consumption: <50 μA during normal operation; <0.5 μA in shutdown mode
- Output impedance: Low – enables direct driving of ADC inputs
