Product description

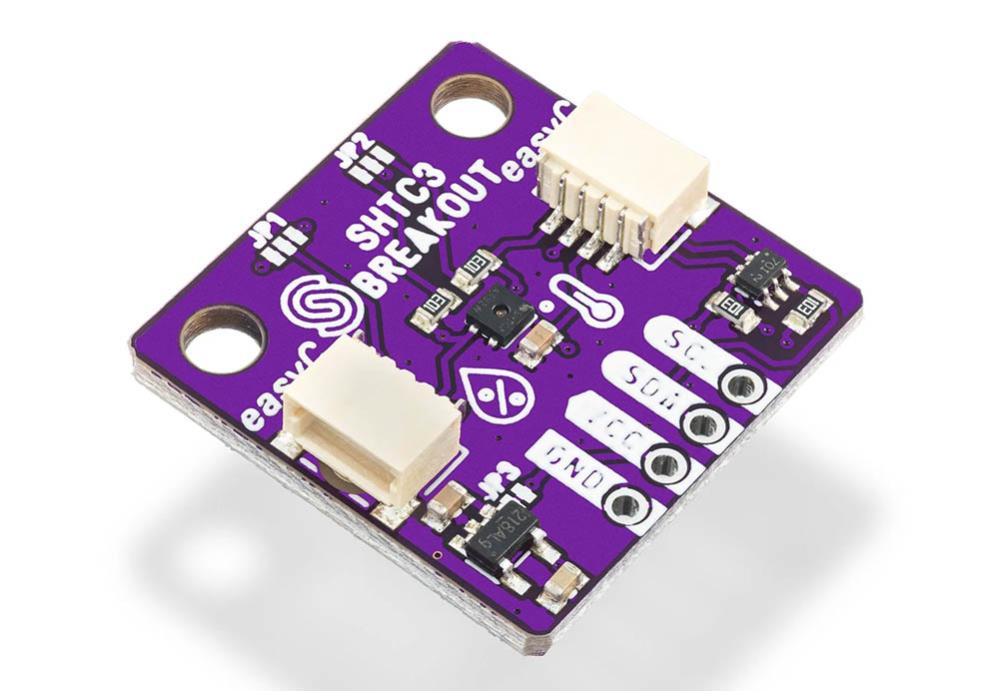

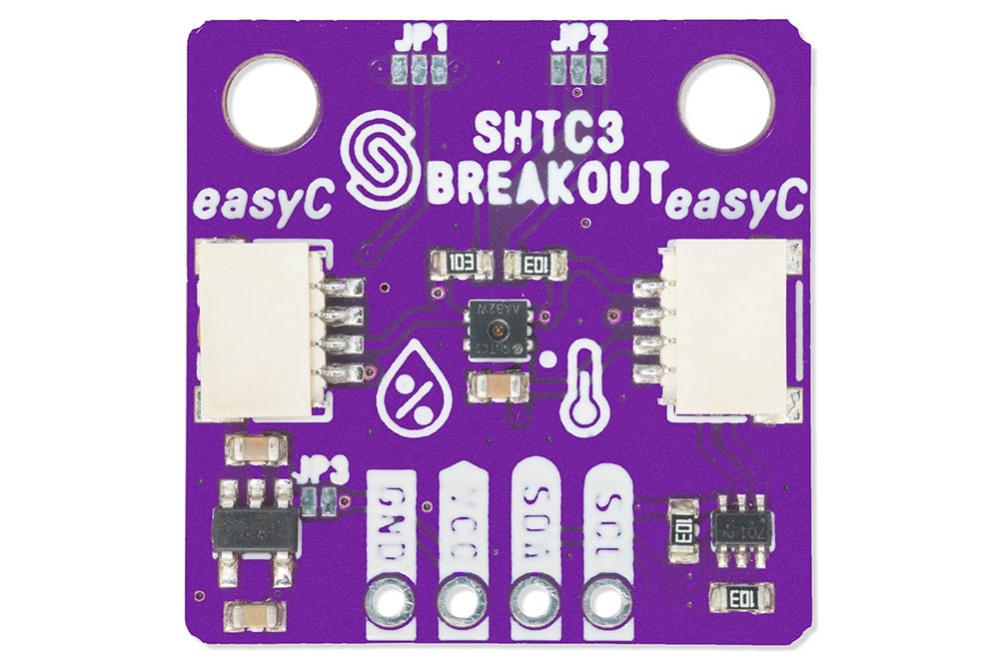

Temperature and humidity sensor based on the Sensirion SHTC3 sensor. The module digitally measures temperature and relative humidity and is suitable for climate monitoring in offices, homes, garages, workshops, greenhouses, and other projects where temperature and humidity need to be monitored.
Communication is via I2C, and the module features two Qwiic connectors for quick solderless connection. The I2C address is 0x70, and the board is designed for 3.3 V logic. The module includes an onboard regulator for 5 V operation and can also be used with the included pin header if the Qwiic connectors are not used.
- Specifications:
- Sensor IC: Sensirion SHTC3
- Measured parameters: Temperature and relative humidity
- Communication: I2C

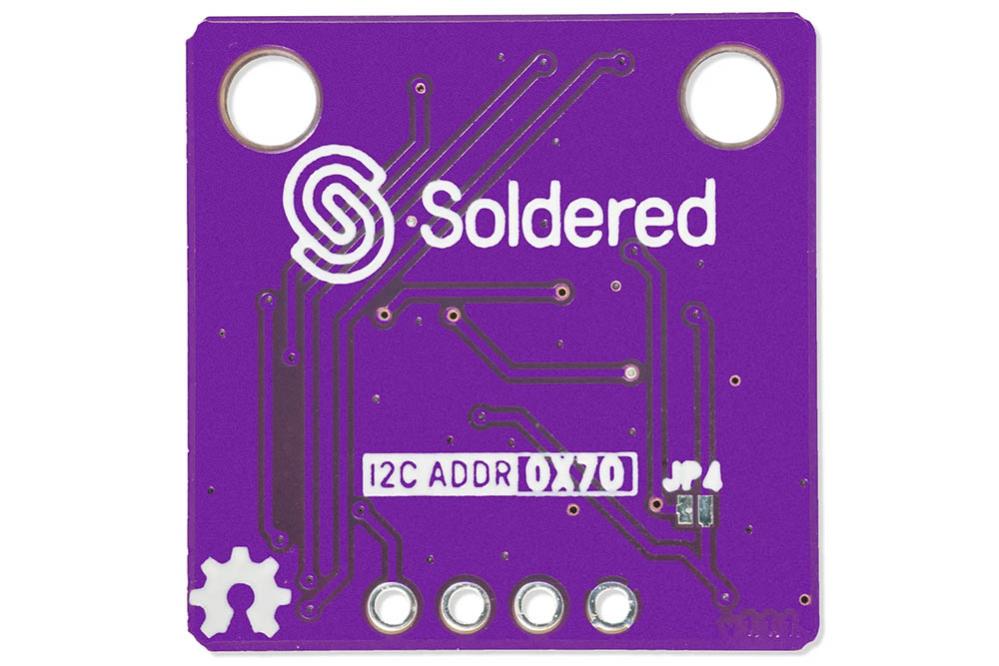

- I2C address: 0x70
- Connections: 2× Qwiic
- Logic level: 3.3 V
- Supply voltage: 3.3–5 V
- Current consumption, typical: 430 µA
- Current consumption, standby: 45 µA
- Temperature range: -40 to +125 °C
- Temperature accuracy: ±0.2 °C
- Relative humidity range: 0–100 % RH
- Relative humidity accuracy: ±2 % RH
- Temperature response time: <5 to 30 s
- Relative humidity response time: 8 s
- Mounting holes: 2
- Dimensions: 22 × 22 mm

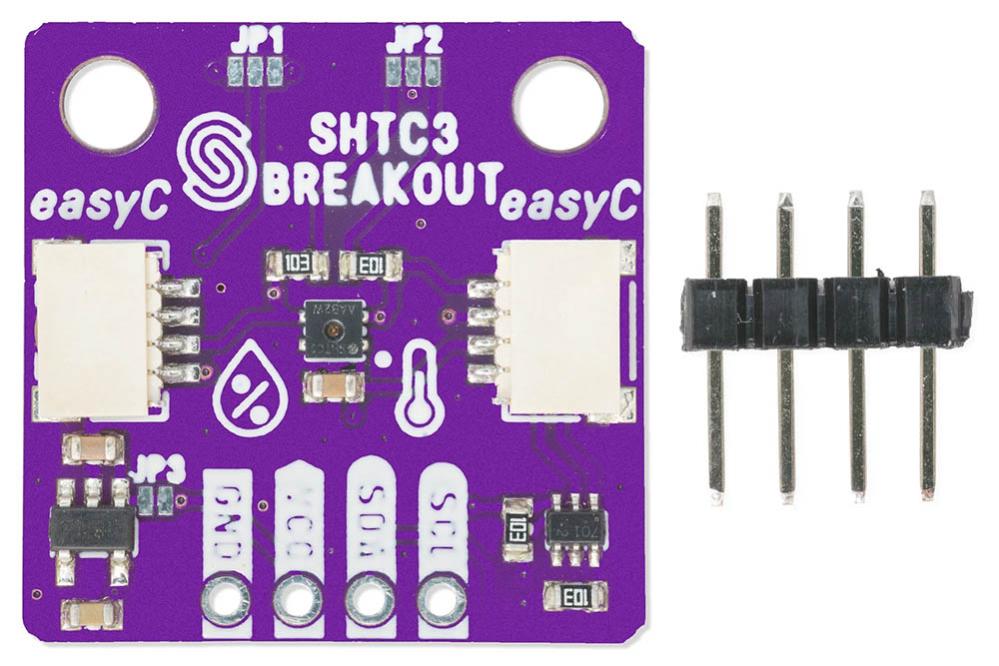

- Supplied with: Pin header (not pre-soldered)
- Manufactured in: EU (Croatia)
