Product description

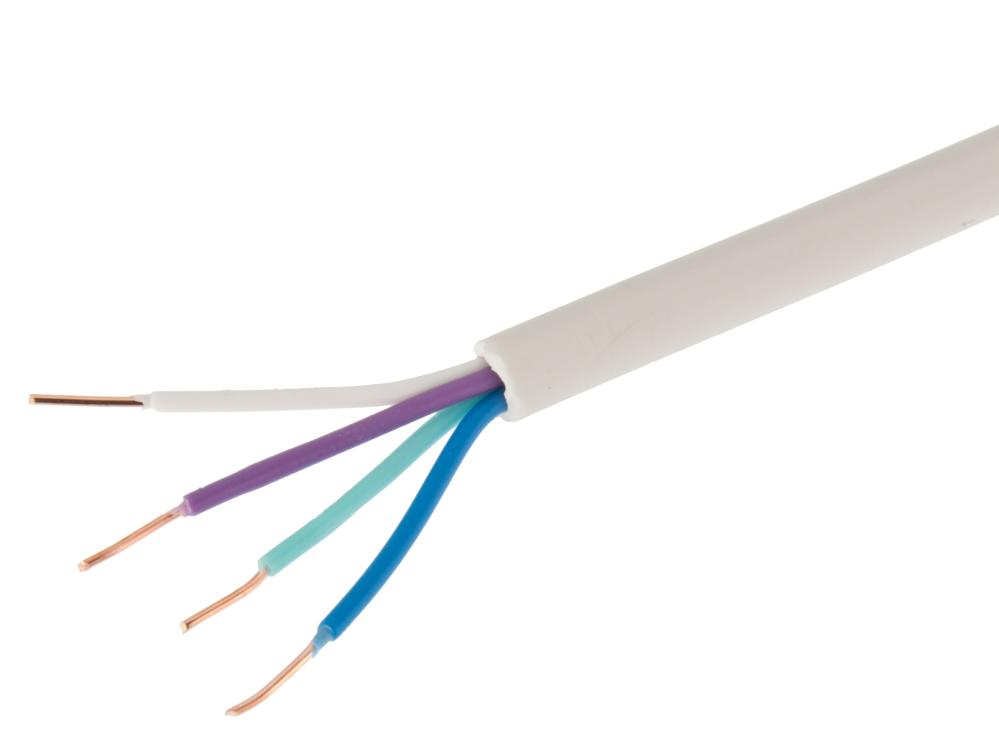

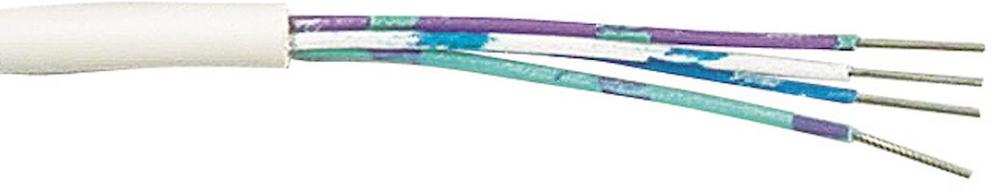

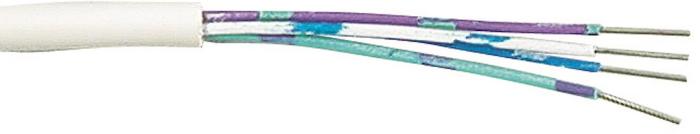

ELQXBE (EKKX) signal cable for telecommunication, alarm and digital telecommunication. The cable consists of 2x2 separate single stranded copper conductors. Halogen-free PE-insulated, HFFR-jacket. Unshielded twisted pair (2x2x0.5). For fixed installation indoors and in pipes.
Specifications:
- Conductor: Pure copper, Cu
- Number of conductors: 4 (2 pairs)
- Color: White
- Conductor area: 0.2mm²
- Conductor diameter: ø0.5mm
- Rated voltage: 100 V
- Outer diameter: ø3.6mm
- Operating temperature: -15 to +70°C
- Fire class: Dca,s2,d2,a1
