Product description

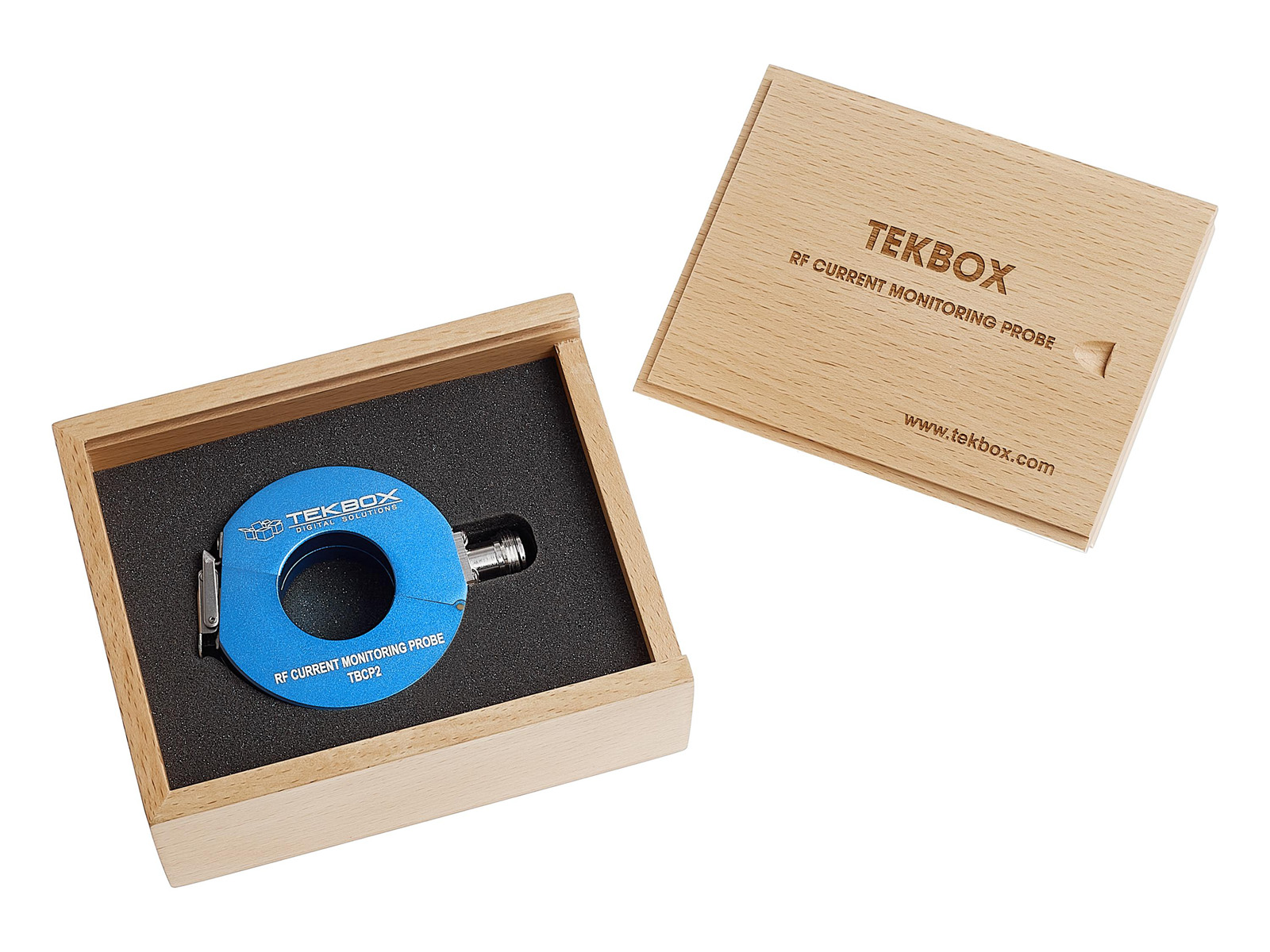

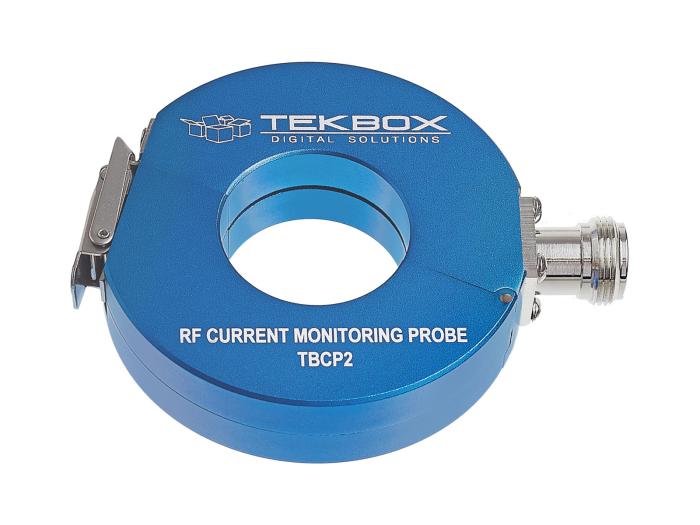

The TBCP2-500 is a snap-on RF current monitoring probe. It has a very flat response with a 3dB bandwidth of 500 MHz and is characterized and usable over the frequency range from 10kHz to 500 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is > 17 dB Ohm in the range from 1 MHz to 500 MHz.
Tekbox supplies a calibration fixture corresponding with the TBCP2 series of snap on current probes.
TBCP2-500
Characterized frequency range: 10 kHz to 500 MHz
Aperture diameter: 32 mm
Outside diameter: 73 mm
Height: 20 mm
Weight: 320 g
Connector type: N female
Transfer impedance: 0 to 20 dB? between 150 kHz and 500 MHz
Max. primary current (DC - 400 Hz): 80 A
Max. primary current (RF): 3 A
Max. core temperature: 125 °C
