Product description

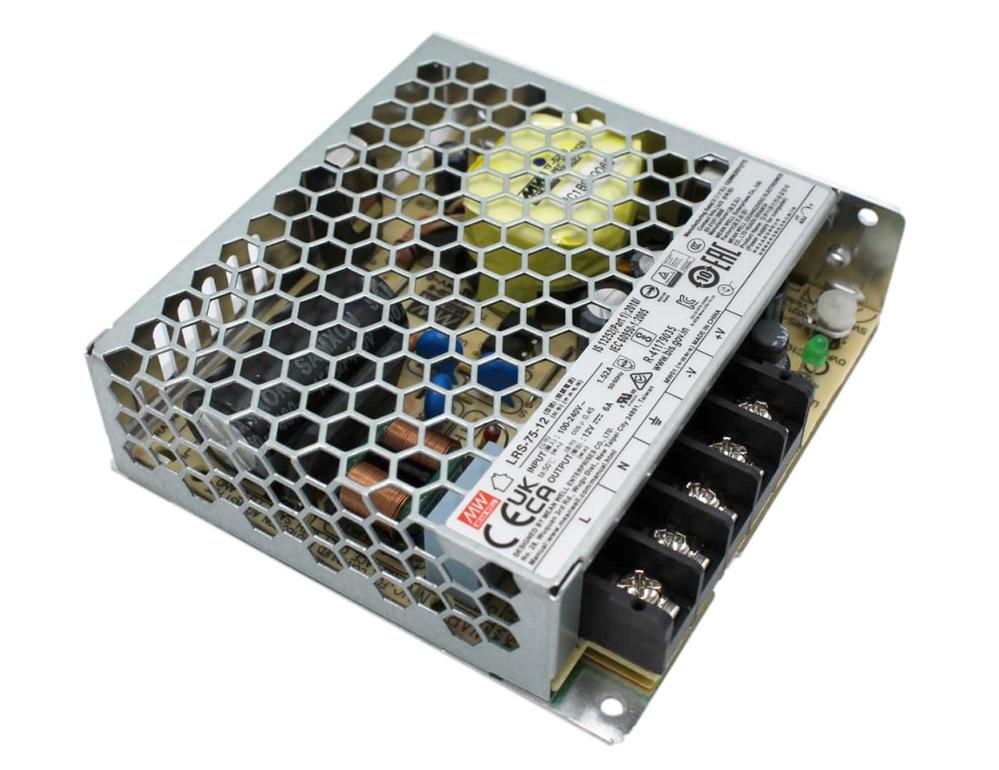

Mean Well LRS-75 is a series of compact switching power supplies for built-in installation. Metal enclosure with ventilation openings, cooled by natural air convection without a fan. Can be used at ambient temperatures from -30 to +70 °C. With trimmer potentiometer for fine adjustment of the output voltage. Protected against short circuit, overload, and overvoltage. The overload protection resets automatically when the cause of the fault has been removed. LED indicates that the power supply is switched on. Intended for industrial automation, industrial control systems, LED lighting, and electrical equipment.
Specifications:
- Product type: Switching power supply for built-in installation
- Manufacturer: Mean Well, Taiwan
- Model: LRS-75-12
- Input voltage: 85–264 VAC
- Output voltage: 12 VDC, adjustable (10.2-13.8 V)
- Current (max): 6 A
- Rated power: 72 W
- Ripple and noise: max. 120 mV p-p
- Efficiency: 89%
- Protection: Short circuit, overload, and overvoltage
- Operating temperature: -30 to +70 °C
- Cooling: Natural air convection
- LED indication: Yes
- Dimensions: 99 × 97 × 30 mm
- Weight: 0.23 kg
- Safety: CE, TÜV, BS, EN 62368-1, etc.
