Product description

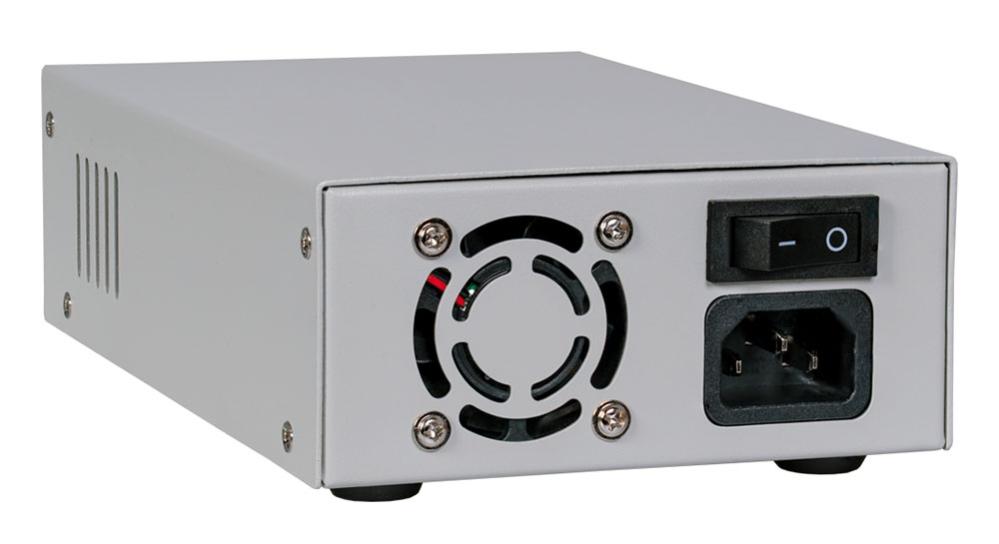

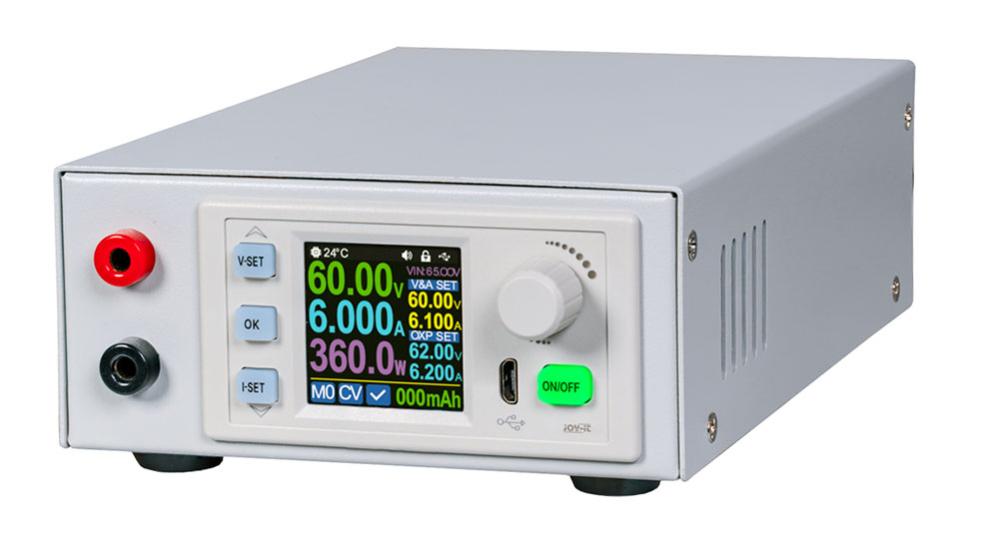

Joy-IT JT-PS360-C is a compact, adjustable laboratory power supply with an output power of up to 360 W. The power supply has an adjustable output voltage from 0 to 60 V and output current from 0 to 6 A. Suitable for use in laboratories, workshops, etc.
The power supply supports both constant voltage mode (CV) and constant current mode (CC). Voltage and current can be adjusted with a resolution of 0.01 V and 0.001 A, respectively. The unit can also be controlled via PC software.

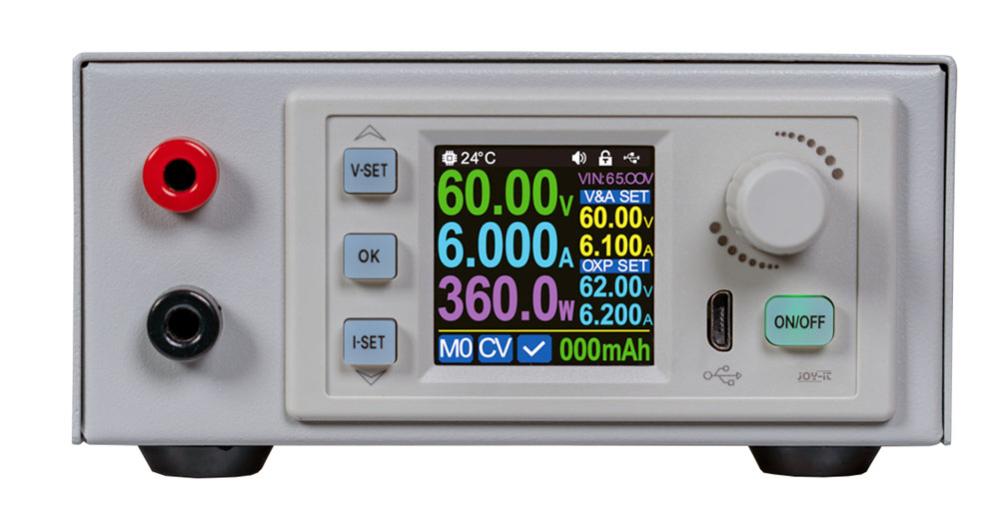

The built-in LCD display shows measured values, and the power supply has functions for measuring electric charge (Ah) and energy (Wh). For safe operation, protection against overvoltage, overcurrent and overtemperature is provided.
Specifications:
- Manufacturer: Joy-IT
- Model: JT-PS360-C
- Type: Adjustable laboratory power supply
- Input voltage: 200–240 VAC
- Output voltage: 0–60 VDC
- Output current: 0–6 A
- Output power (max): 360 W
- Operating modes: Constant voltage (CV), constant current (CC)
- Voltage resolution: 0.01 V (10 mV)
- Current resolution: 0.001 A (1 mA)
- Ripple: 100 mVpp
- Response time in CV mode: 2 ms (0.1–5 A)
- Charge measurement range: 0–9999.99 Ah
- Energy measurement range: 0–99999.99 Wh
- Display: LCD
- PC connection: Micro-USB
- Dimensions: 200 x 115 x 57 mm
- Weight: 1430 g
- Included: Micro-USB cable, test leads with crocodile clips and mains power cable
