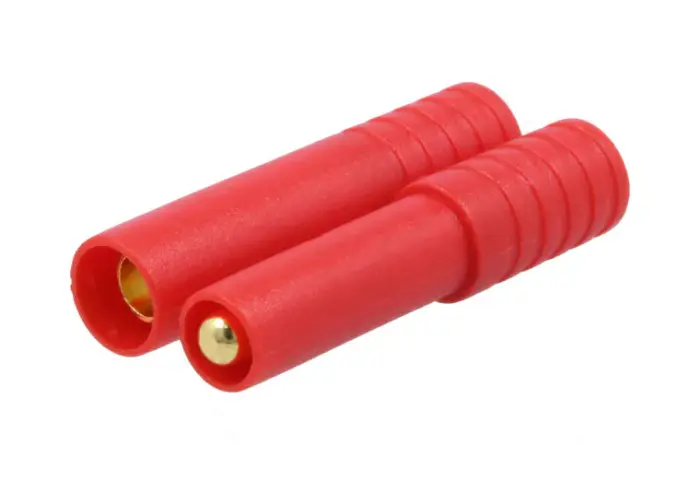

HXT power connector 4mm 32(70)A male/female
Art no: 41023787
Amass - AM-1009L
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description

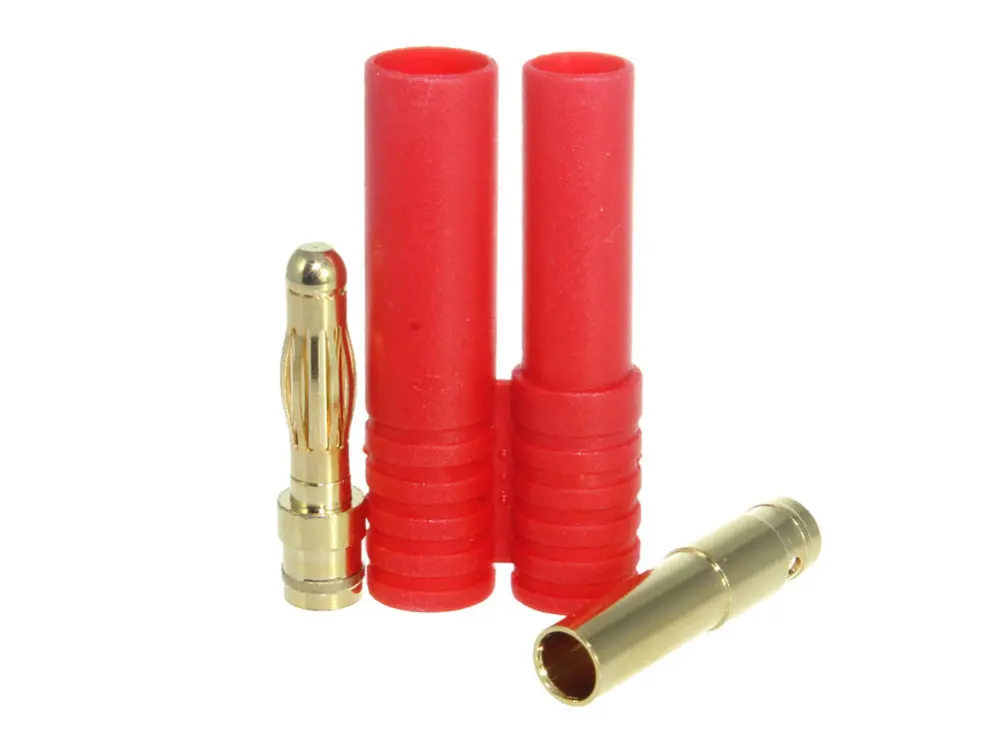

HXT connector. Cable mounted for DC power supply. Made of polyamide (nylon). Solder sleeves for cable up to AWG12 (3.3 mm²). Type: banana plugs with polarized housing. The polarized contact housing eliminates the risk of faulty polarization. Solder connection. Original connector from Amass.
Specifications:
- Rated voltage: 500V
- Rated current: 32A continuous (70A intermittent)
- Max cable diameter: AWG12 (3.3 mm²)
- Operating temperature -20 to 120°C
- Contact material: Gold plated brass
- Mechanical durability: 1000 cycles
- Manufacturer: Amass
Product information
SKU:
41023787MPN:
AM-1009L
