Barcode and QR code reader UART

Art no: 41022532
Waveshare - Barcode Scanner Module (D)
Shop this product, Barcode and QR code reader UART
new price 299 SEK
old price 359 SEK
Including 25% VAT
In stock, 8 pcs
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

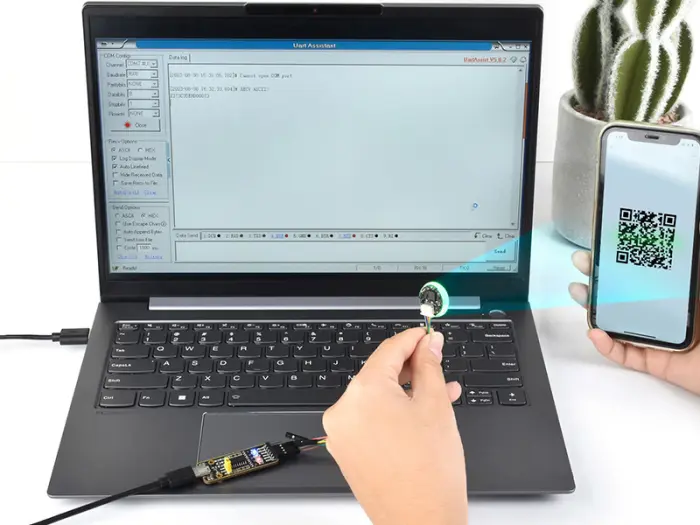

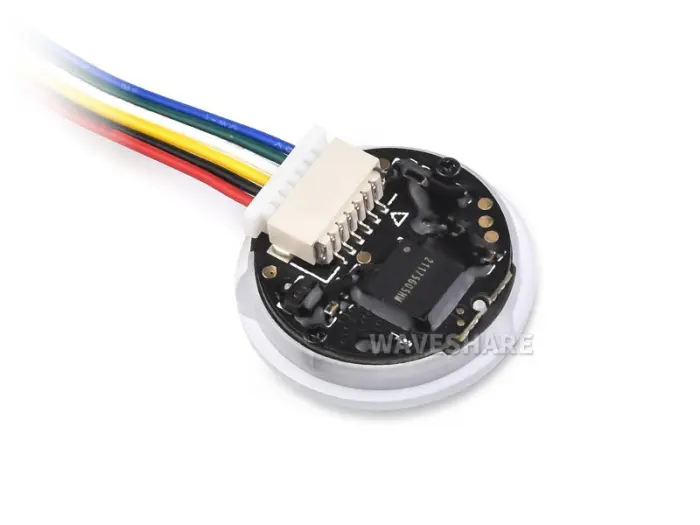

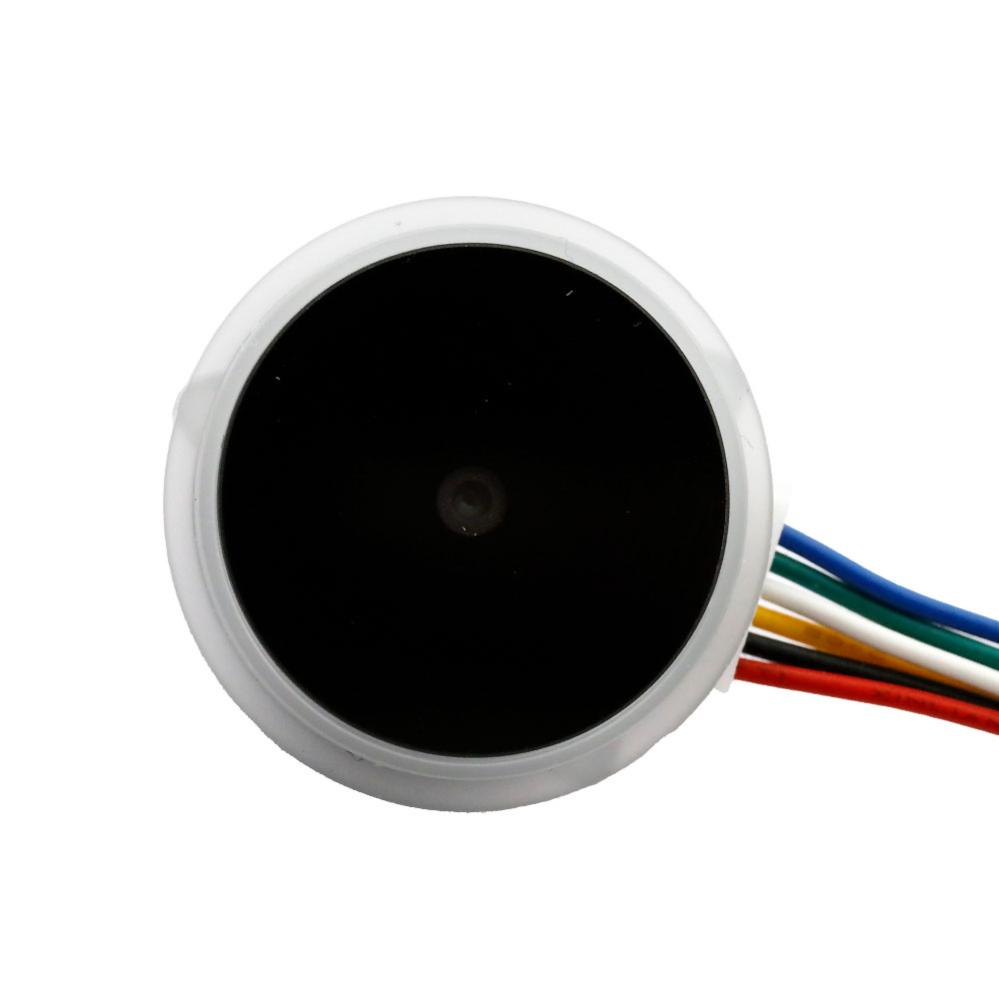

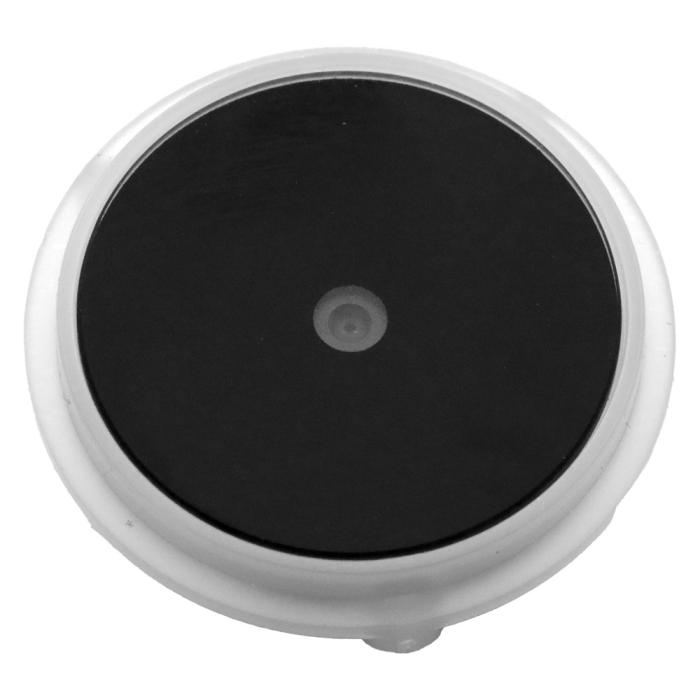

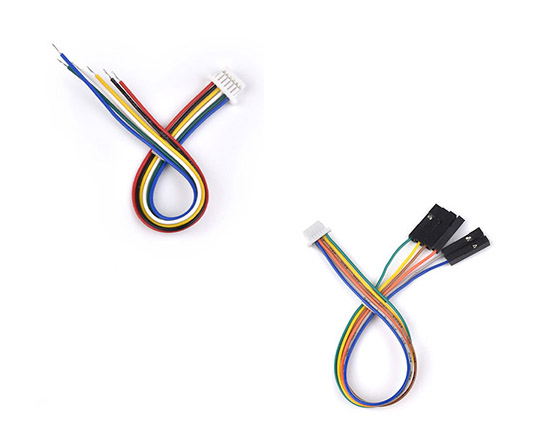

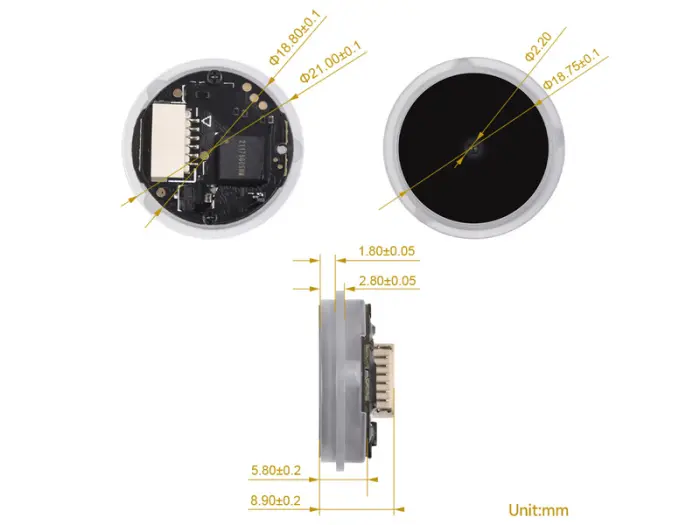

Waveshare Barcode Scanner Module (D) - Compact Module for Barcodes and QR Codes. A powerful and compact module for decoding both 1D and 2D codes (e.g., barcodes, QR, DataMatrix, etc.). Thanks to its high level of integration, simple interface, and LED indicator, it provides a convenient solution for automated scanning in embedded systems and industrial applications. Supplied with two connection cables: 6-pin connector to open end and 6-pin connector to 6x female Dupont.

Specifications:

  • Decoding 1D & 2D:
  • Supports standard formats such as EAN-13, UPC-A/E, Code128, QR, DataMatrix, PDF417, and more

Resolution and field of view:

  • Image sensor: 640 × 480 pixels
  • Horizontal scanning angle: 70°
  • Vertical scanning angle: 55°
  • Rotation (roll): 360°

Accuracy:

  • For 1D codes:  > 5 mil (0.005 in or 0.127 mm)
    For 2D codes:  > 10 mil (0.01 in or 0.254 mm)

Interface:

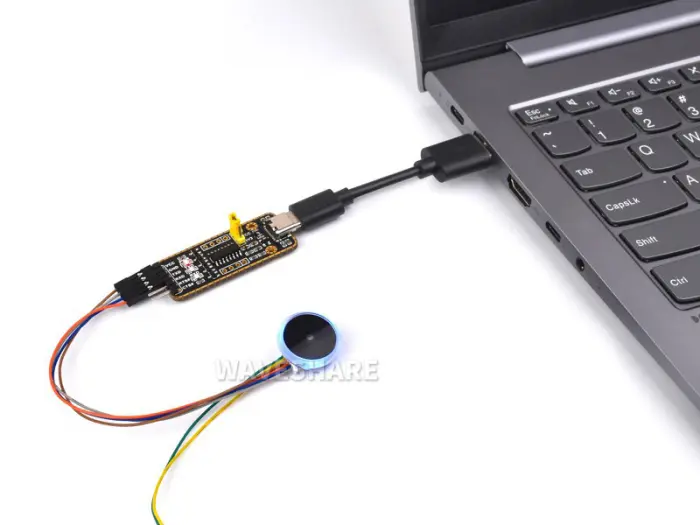

  • Built-in UART interface (default: 9600, 8N1)

Operating voltage and current:

  • Supply voltage (Vcc): 3.3 V
  • Current consumption: approx. 120 mA

LED indicator:

  • Blue: scanning in progress
  • Green: decoding successful

Protection & environment:

  • IP rating: IP54 (front side)
  • Operating temperature: -30 to +70 °C

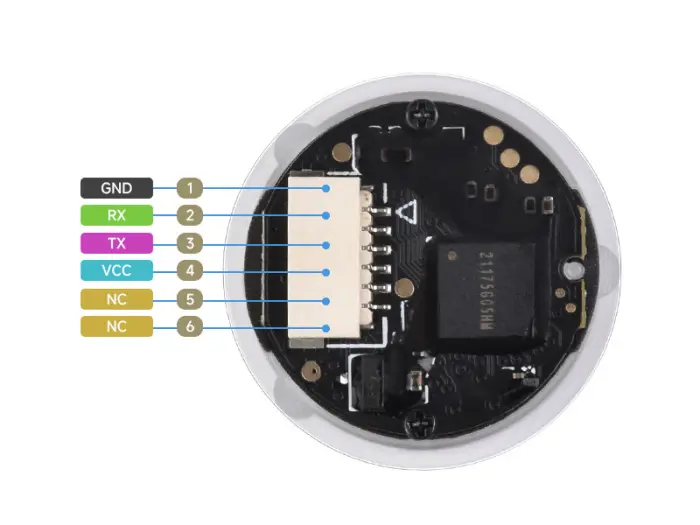

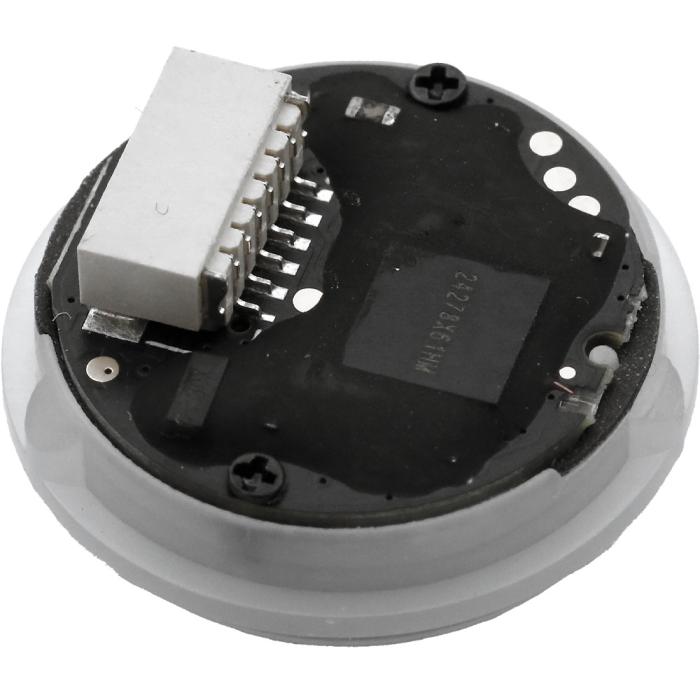

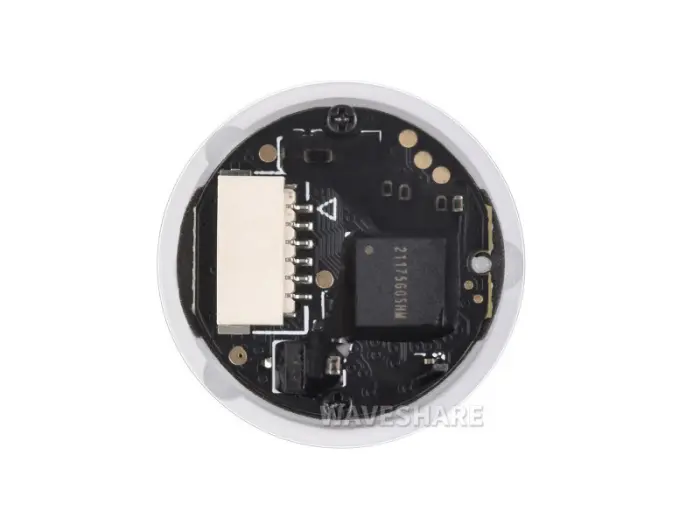

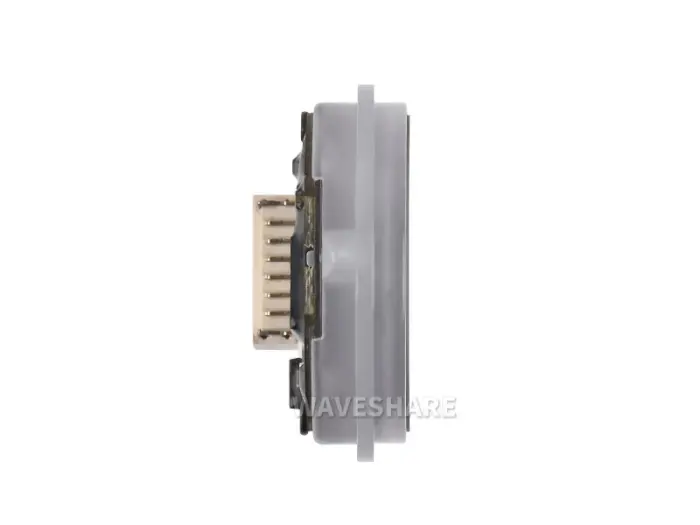

Pinout (6 pins):

  • 1. GND — ground
  • 2. RX — module TTL receive
  • 3. TX — module TTL transmit
  • 4. VCC — 3.3 V supply
  • 5. NC (reserved)
  • 6. NC (reserved)

Typical applications:
Suitable for systems requiring automated real-time barcode and QR code scanning, such as:

  • Elevators and access control systems
  • Terminals, kiosks
  • Warehouse and logistics systems
  • Integration into IoT or industrial control systems
  • Projects using Raspberry Pi, Arduino, or other embedded platforms
