Product description

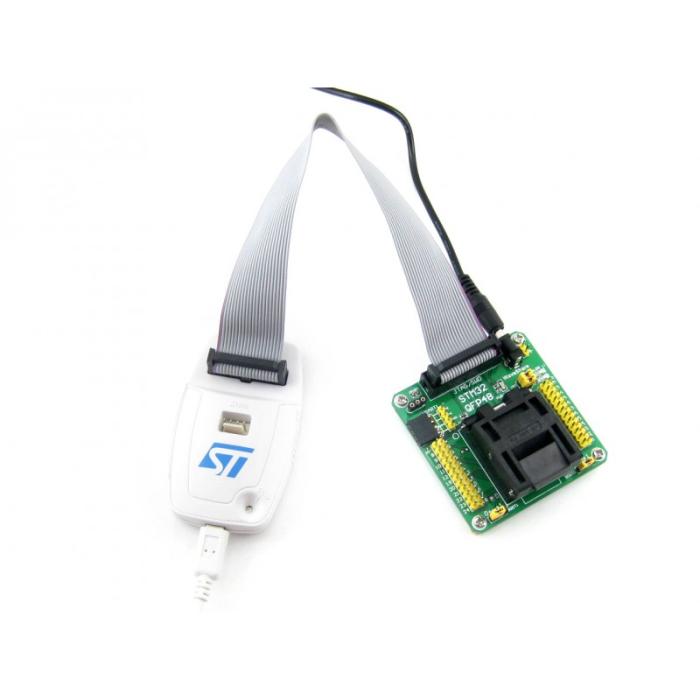

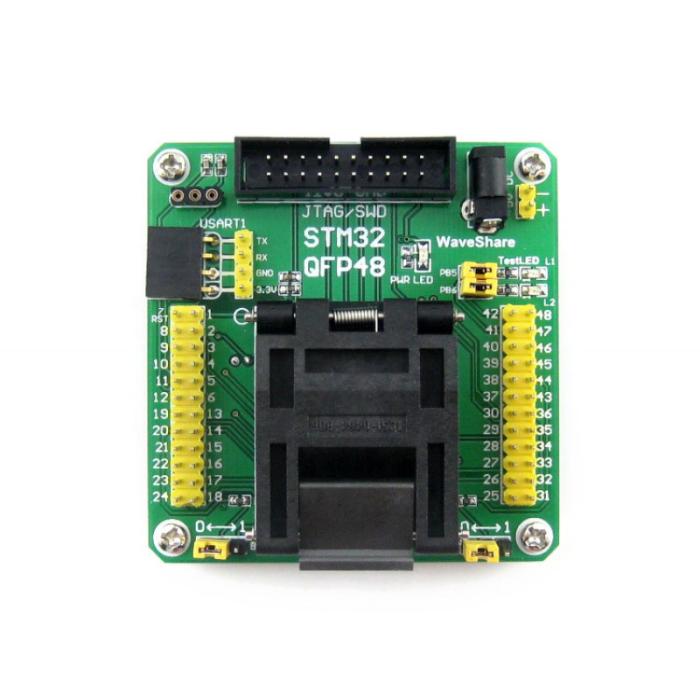

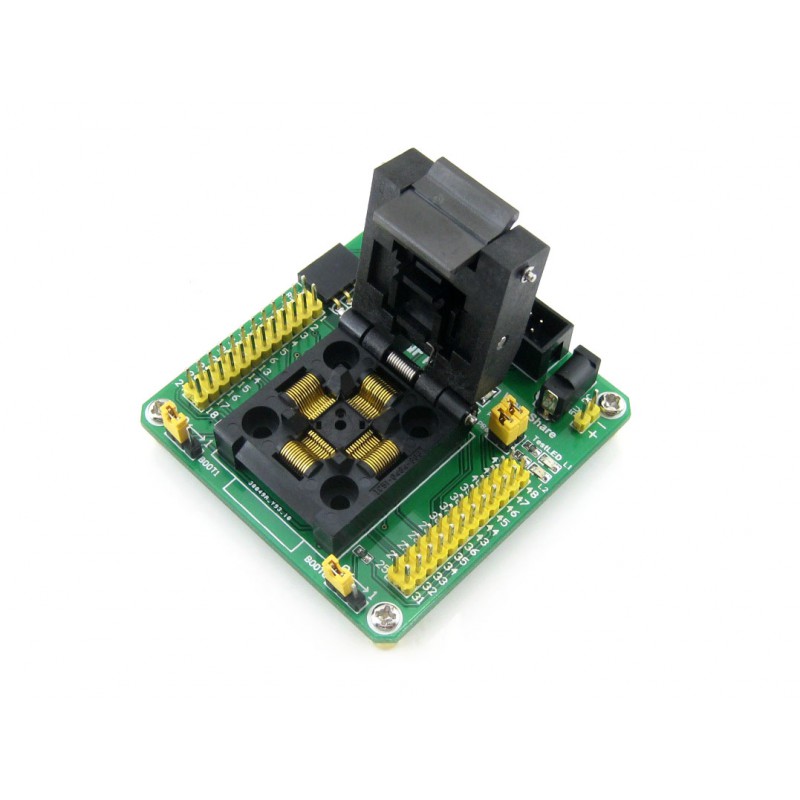

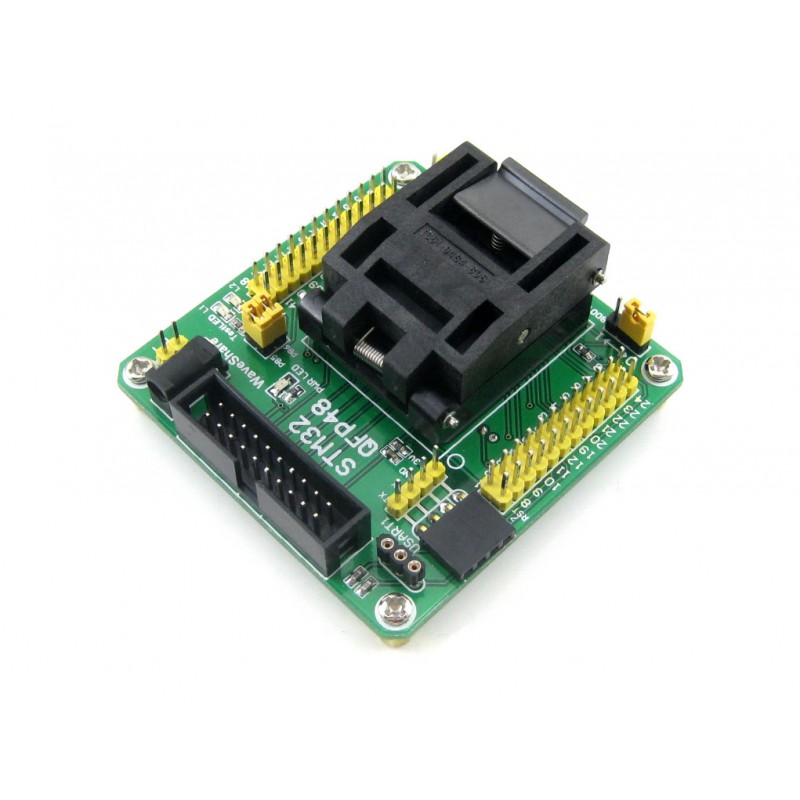

STM32 - QFP48 is an adapter board for programming and testing STM32 microcontrollers. It features a ZIF-style socket for QFP48 packages. All 48 pins are accessible via headers for easy access during development or verification. The adapter board includes a 20-pin JTAG/SWD connector and a 4-pin ISP UART interface for connection to an external programmer. An external crystal can be connected via the onboard socket for the system clock.
The adapter board is suitable for:
- STM32F10xC series (STM32F103CB, STM32F103C8, etc.)
- STM32L15xC series (STM32L151C6, STM32L152CB, etc.)
Specifications:

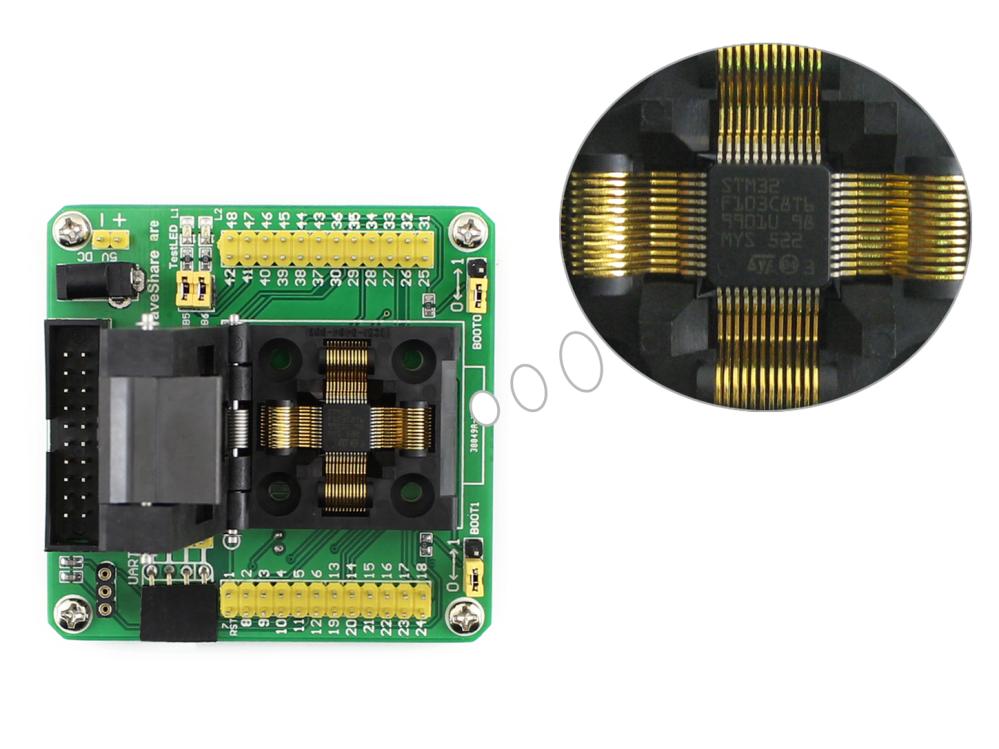

- IC socket adapter: QFP48 (0.5 mm pitch)
- JTAG/SWD connector: 20-pin

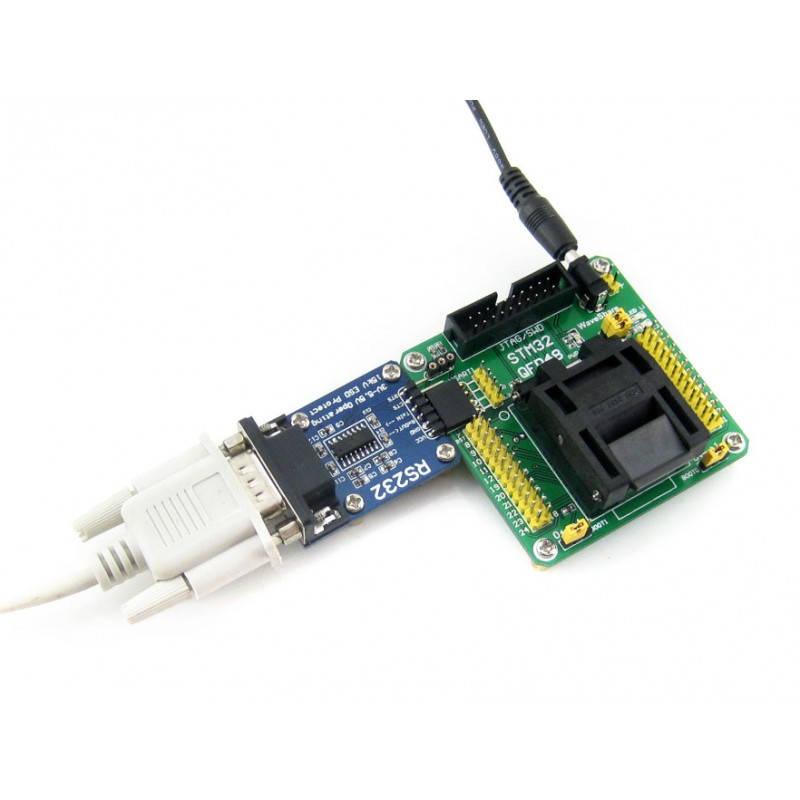

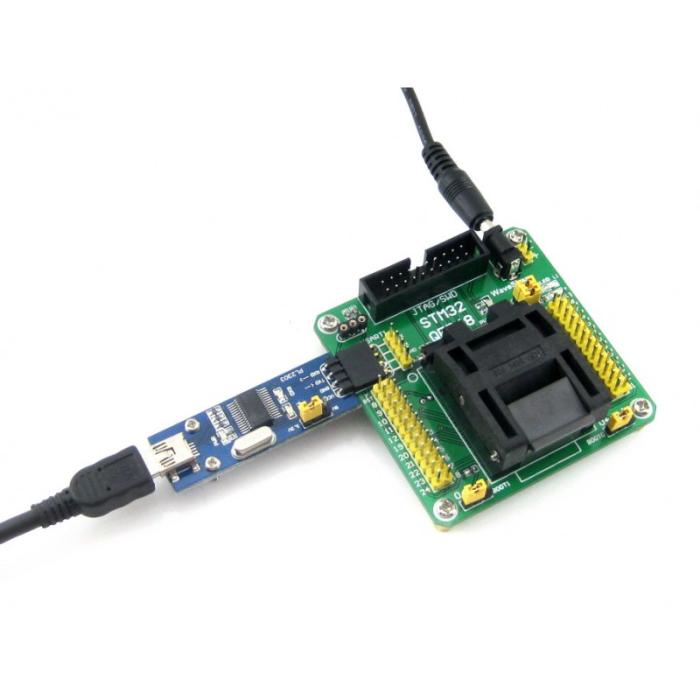

- ISP UART connector: 4-pin TX, RX, GND, 3.3 V
- Socket manufacturer and model: Yamaichi IC51-0484-806
- Onboard crystal oscillator: 32,768 kHz
- External crystal: Socket for external crystal oscillator
- Connections: All MCU pins accessible via 48 headers
- Power supply: 5 V via VIN, DC jack or included USB cable (with DC connector)
