Product description

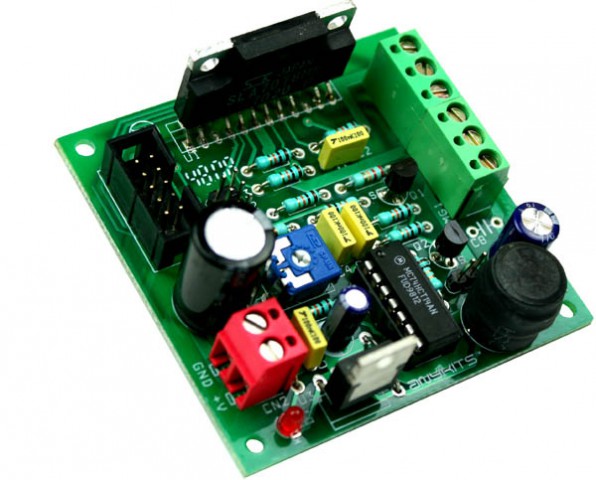

M031 is a high efficient stepper motor driver board for unipolar stepper motors. It has been design for various application like robotics, control routers, lathes, mills, PCB drillers and engravers.
Specifikations:
* SLA7078MPR motor control IC
* Step and Dir input via 10 pin box header connector
* Micro-stepping via on board jumper settings
* 1/16th Micro-stepping possible
* Supply input and stepper connection via screw terminal connector
* Inbuilt fault protections in ic for over temp and short circuit
* Supply up to 42 VDC work with single supply no logic supply required
* Minimum supply 12 VDC Max 42 VDC @ 3 A
* Onboard DC-DC step down converter for logic 5 VDC supply
Motor not included.
