Product description

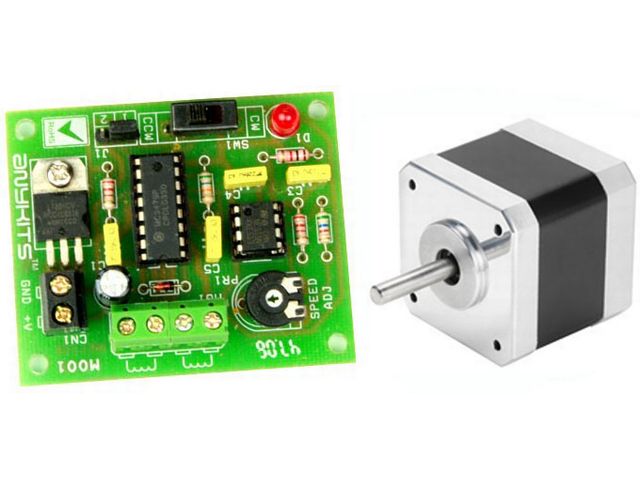

This kit is designed to drive two-phase stepper motor in bipolar mode. It is based on MC3479 IC.
* Input Supply : 12 VDC (7.5 to 16 V supply possible)
* Two-phase stepper motor in bipolar mode with up to 350 mA to each of the two coils
* Jumper selectable half or full step
* Adjustable speed with the help of onboard preset
* Direction control with help of a on board Slide switch
* Power-On LED indicator
* Power Battery Terminal (PBT) for easy input (PWR) / output (Motor) connection
* Four mounting holes of 3.2 mm each
* PCB dimensions 51 mm x 62 mm
Motor not included. / Motor ingår ej
