Product description

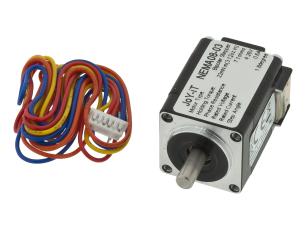

Compact NEMA 8 stepper motor with high torque and a maximum speed of up to 3000 RPM. Suitable for model building, manufacturing, and industrial applications such as optical positioning, dosing pumps, and safety interlocks. Supplied with connection cable - 6-pin JST connector with 4 connection cables (open end).
Specifications:
- Motor Type: Hybrid Motor
- Step Angle: 1.8 °
- Steps per revolution: 200
- Rated Current: 0.8 A
- Operating Voltage: 4.0 VDC
- Number of Phases: 2 (bipolar)
- Number of connections: 4
- Inductance / phase: 1.2 mH
- Resistance / phase: 5.0 Ohm
- Rotor Inertia: 3.5 gcm²
- Holding Torque: 20 mNm
- Detent Torque: 3 mNm
- Shaft Length: 18.5 mm
- Shaft Diameter: ø4 mm
- NEMA Size: NEMA 8
- Length: 22 mm
- Width: 22 mm
- Height: 41.7 mm
- Weight: 80 g
