Product description

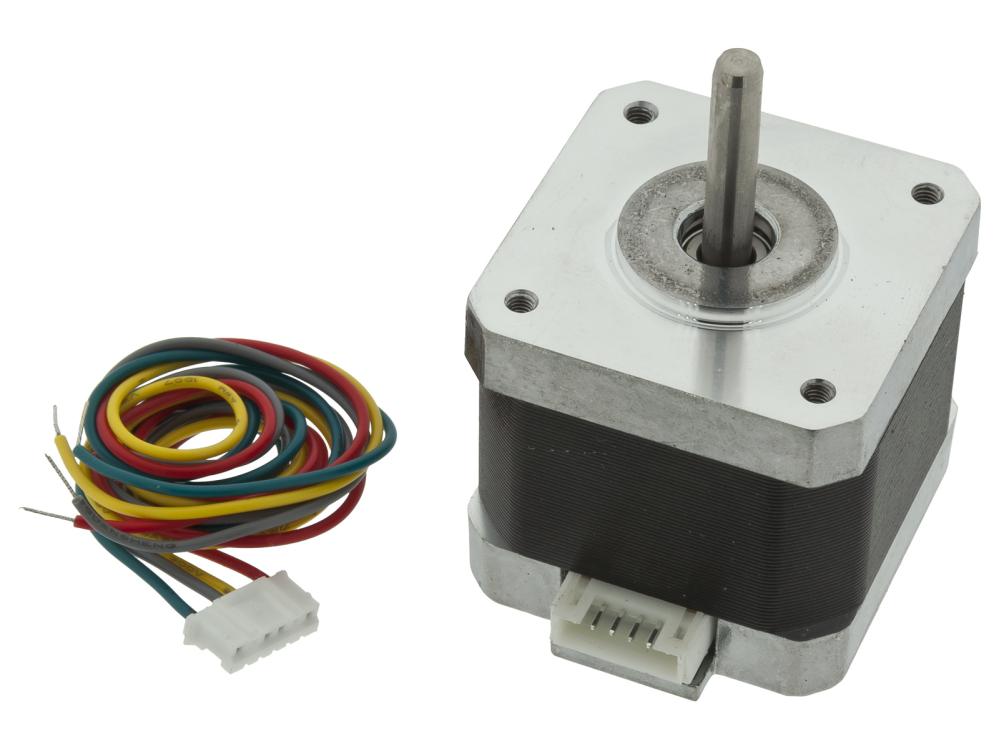

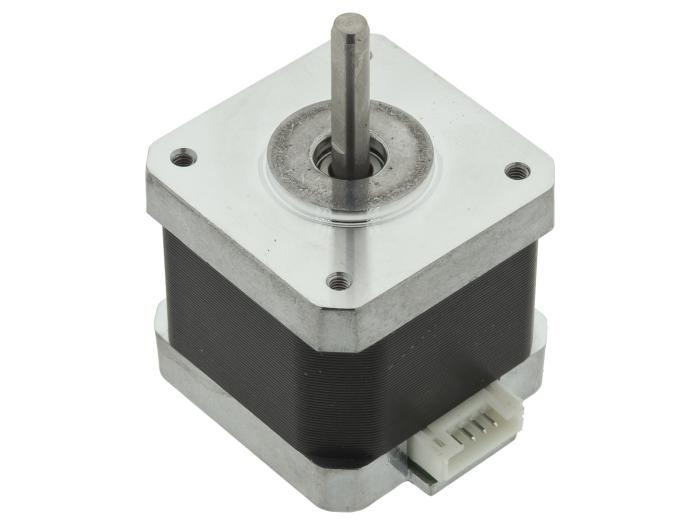

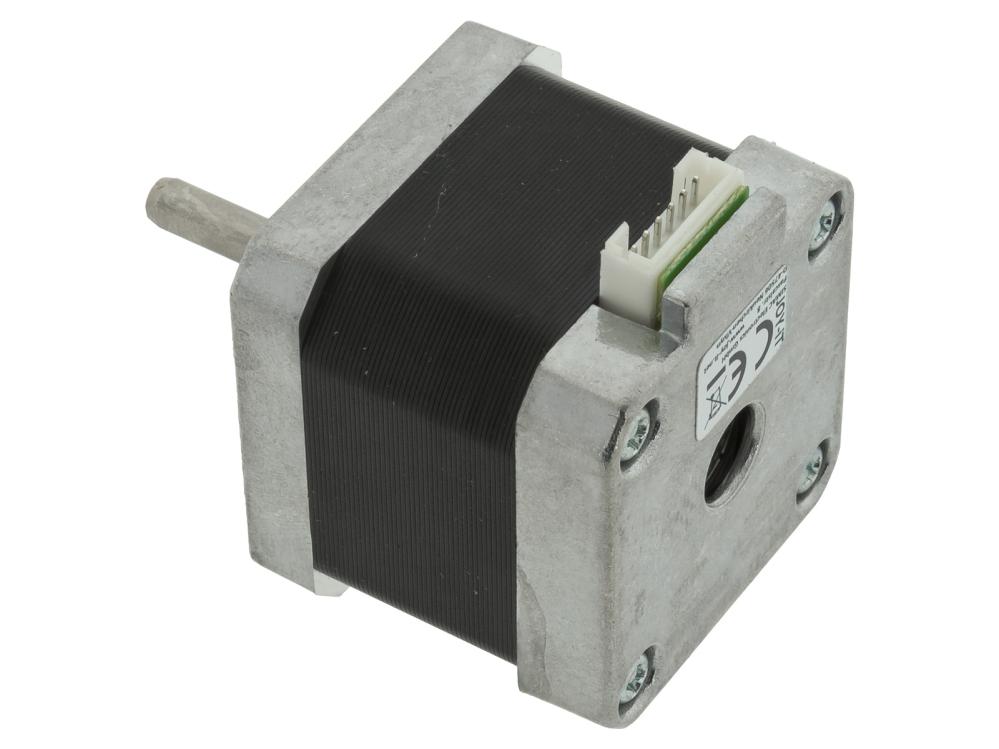

Stepper motors with small steps and high drive torque thanks to two-phase hybrid technology. Suitable for e.g. CNC, engraving lasers, 3D printers, milling machines and robotics. Supplied with connection cable - 6-pin JST connector with 4 connection cables (open end).
Specifications:
- Motor Type: Hybrid Motor
- Step Angle: 1.8 °
- Steps per revolution: 200
- Rated Current: 1.5 A
- Operating Voltage: 3.3 VDC
- Number of Phases: 2 (bipolar)
- Number of connections: 4
- Inductance / phase: 5 mH
- Resistance / phase: 2.2 Ohm
- Rotor Inertia: 57 gcm²
- Holding Torque: 0.45 Nm
- Detent Torque: 0.015 Nm
- Shaft Length: 22 mm
- Shaft Diameter: ø4.5 mm
- NEMA Size: NEMA 17
- Length: 42 mm
- Width: 42 mm
- Height: 42 mm
