Product description
Have you been searching for that perfect Internet of Things dev kit? The Spark Core is a microcontroller that will get your IoT troubles behind you.

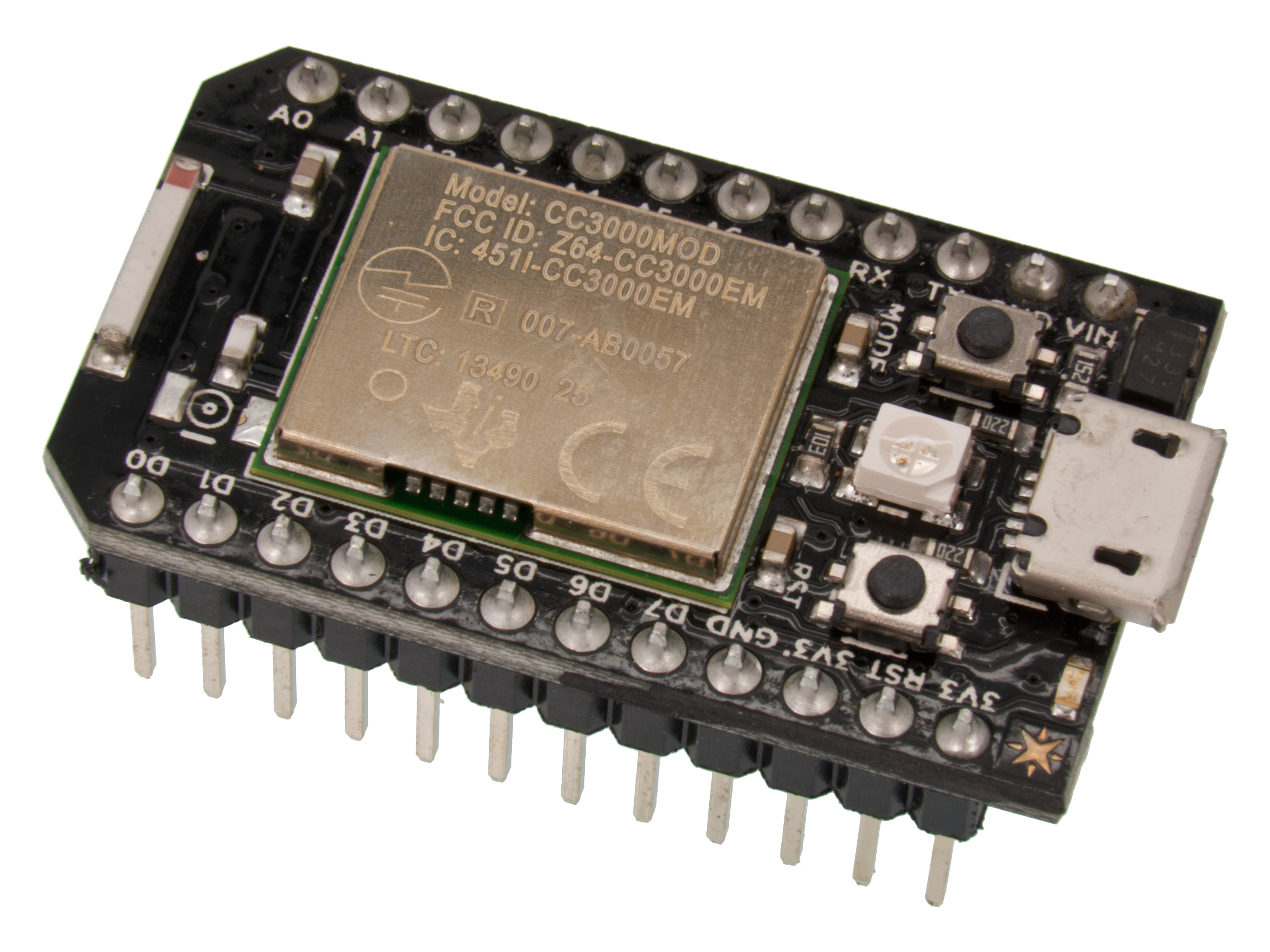

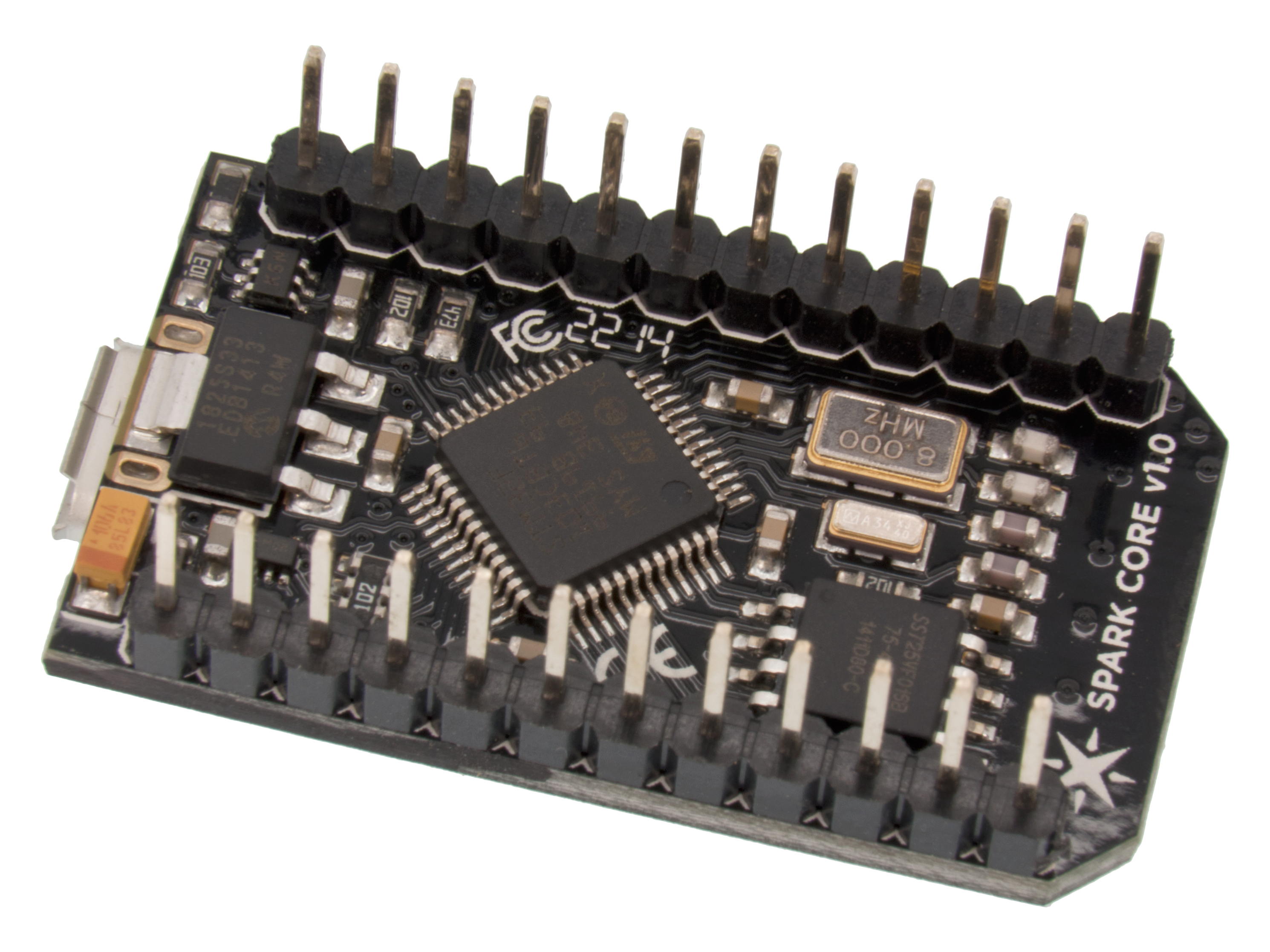

The Spark Core is a complete Wi-Fi enabled development platform for creating connected devices with ease. Please note, this is not truly Arduino-compatible - Their IDE works with many Arduino examples and there have been libraries that are ported to the STM processor on board but even though they say 'Arduino-compatible' we would classify it more like "Arduino-like programming language"
The Spark Core is small, low power, and does all the heavy WiFi lifting, but will still let you do all kinds of tinkering to get your IoT project up and running. There's a backend website platform 'cloud' that will let you send and receive data so, rather than having to access everything from your local network or trying to figure out how to tunnel into it, the Spark Core connects out to the Spark.io network for seamless connectivity. You can always set up your own protocols if you want, but you don't have to. And that's kind of the point! The Spark Core ships hooked up the cloud, so you can worry about your things and how they integrate, instead of worrying about getting the cloud to work. There's a lot more info on the Spark website.

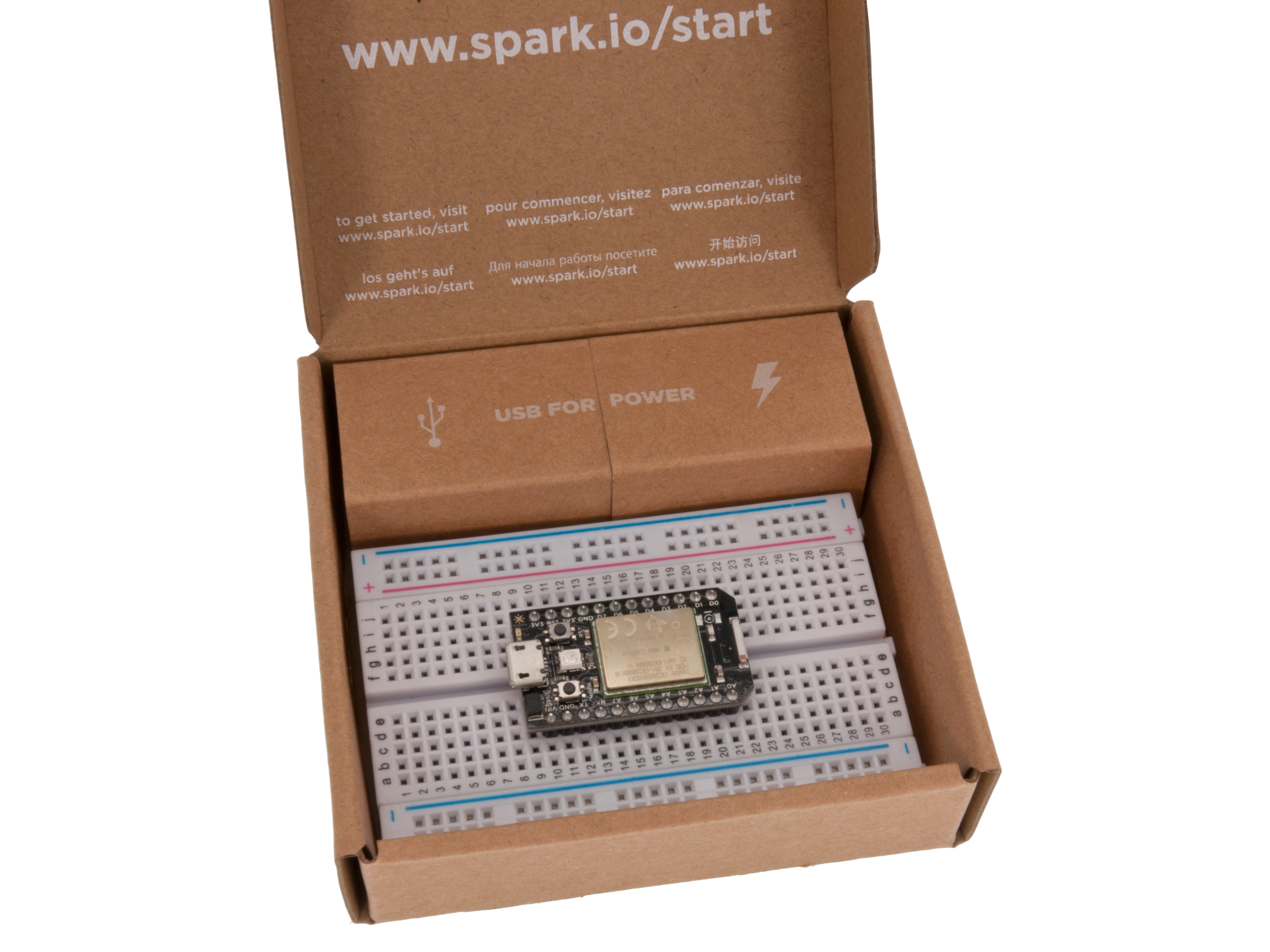

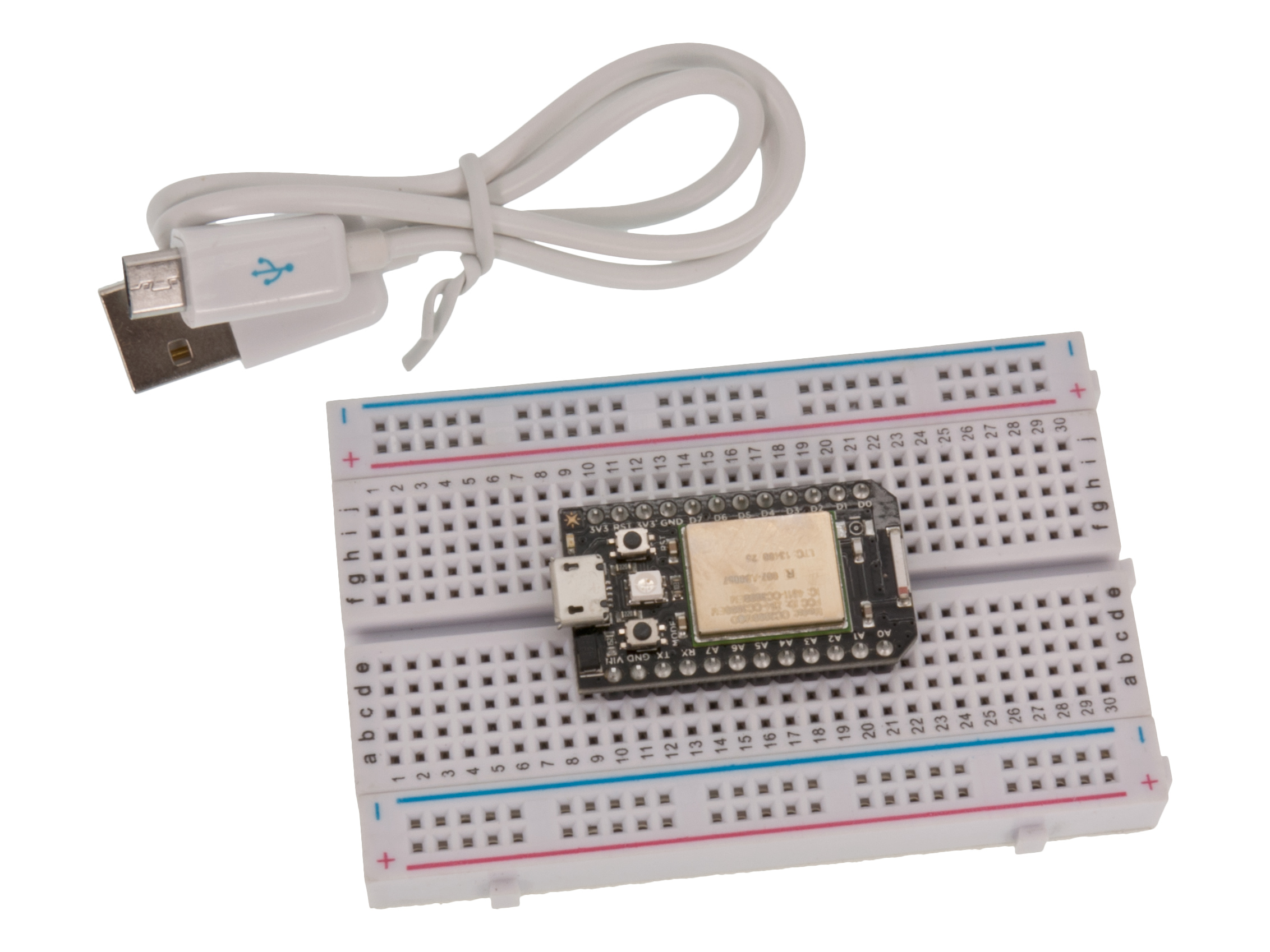

Each Spark Core comes with 1 x Core, 1 x usb cable, 1 sticker, and 1 medium sized breadboard.
ARM 32-bit Cortex-M3 CPU Core
72Mhz operating frequency, 1.25 DMIPS/MHz (Dhrystone 2.1)
128KB of Flash memory
20KB of SRAM
12 bit ADC
USB 2.0 full-speed interface
USART, SPI and I2C interfaces
JTAG Debug mode
Core Dimensions: 37mm x 20mm x 6mm / 1.5" x 0.8" x 0.2"
Height w/ Pins: 13mm / 0.5" Core Weight: 6g
Datasheet
