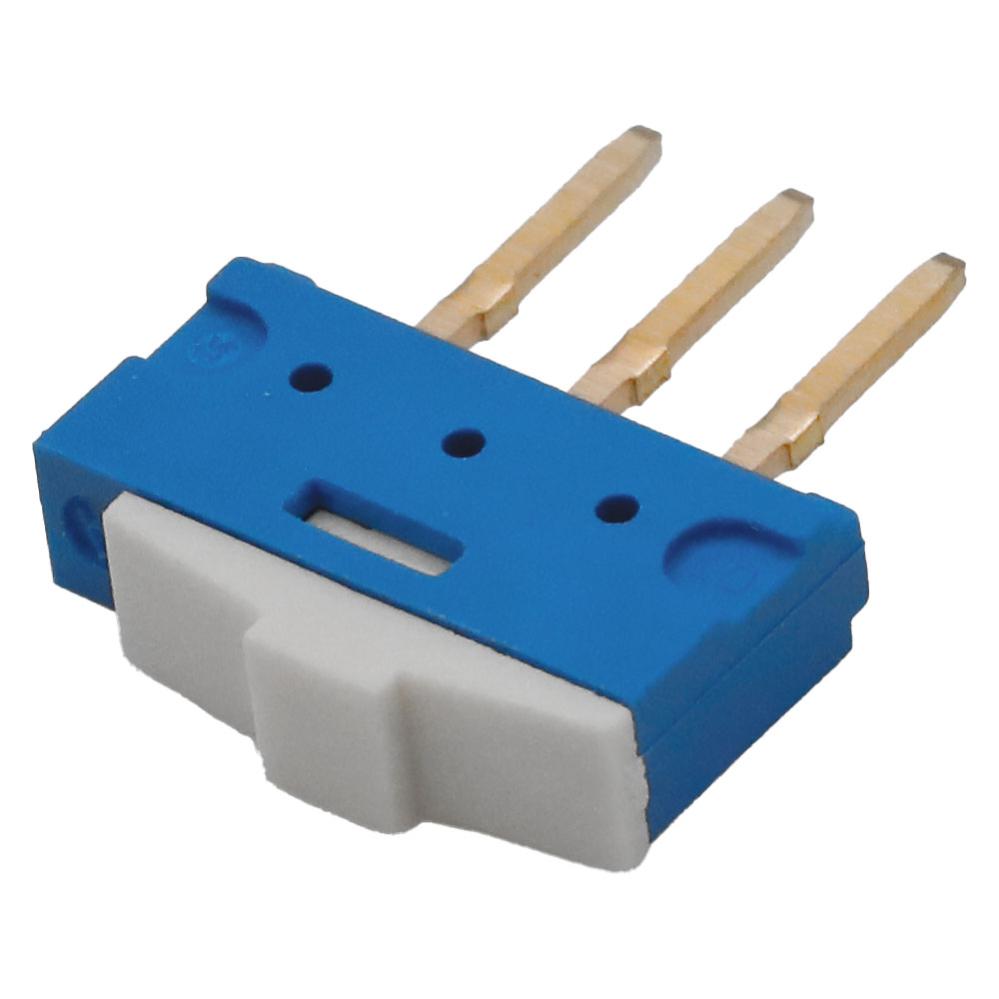

Slide switch 1-p on-on 2.54mm PCB - blue

Art no: 41024383
Shop this product, Slide switch 1-p on-on 2.54mm PCB - blue
price 11 SEK
Including 25% VAT

Mängdrabatt:
1pcs = 11:-10pcs = 99:-25pcs = 206:25

Quantity discount
QuantityPrice
1 till 9
11 SEK
10 till 24
9.90 SEK
25 till
8.25 SEK
In stock, 100 pcs
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

Miniature slide switch for breadboards or PCB mounting. A compact single-pole (ON-ON) slide switch suitable for low-voltage signals and logic circuits. Can be used on breadboards or through-hole mounted on PCBs.

Specifications:

  • Switch type: SPDT (1P2T), ON-ON
  • Mounting: Through-hole (THT)
  • Rated voltage: 12 VDC
  • Rated current: 0.5 A
  • Contact resistance: <30 mΩ
  • Insulation resistance: >10 GΩ
  • Mechanical life: > 5,000 cycles
  • Operating temperature: -20 °C to +70 °C
  • Body material: Flame-retardant plastic (UL94V-0)
  • Terminal material: Gold-plated brass
  • Dimensions: 10 x 6.5 x 2.5 mm
  • Pin pitch: 2.54 mm

Product information

  • SKU:

    41024383
