Product description

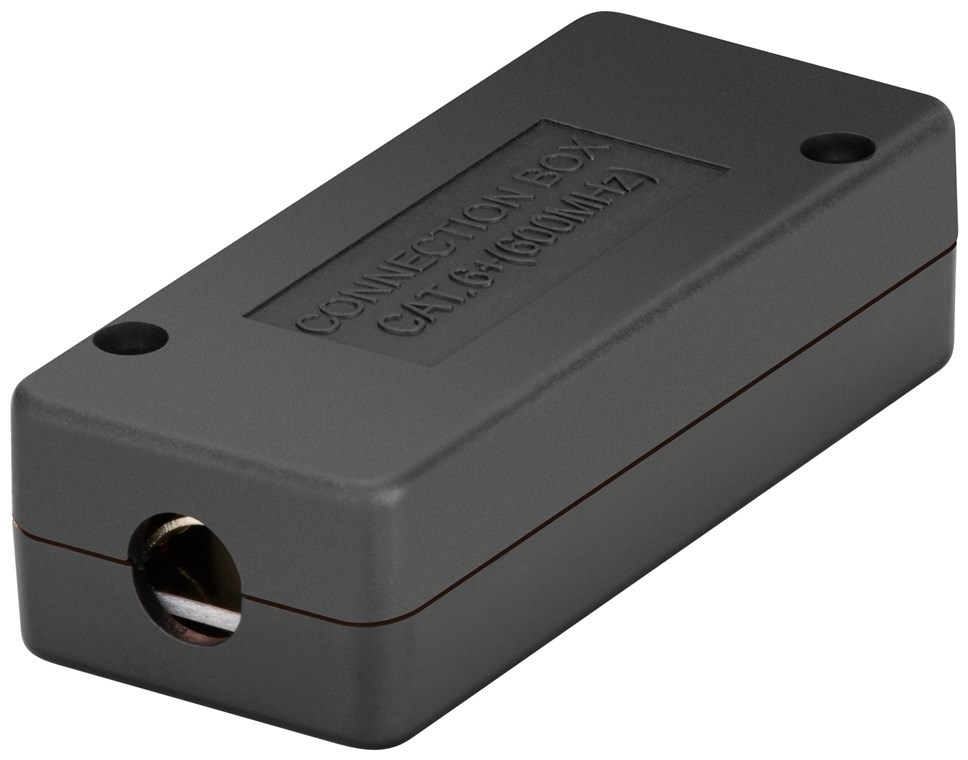

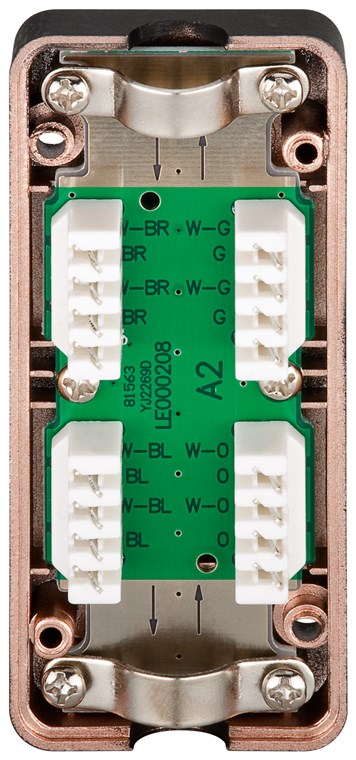

Junction box for STP (shielded) or UTP (unshielded) Cat6 / Cat6A network cable. Intended for installation cable. The joint preserves the cable’s transmission and shielding characteristics. The terminal blocks of IDC type (solderless, screwless, no stripping required). Termination is performed using a punch-down tool, for example 41010613 or 41032546.
Specifications:
- Category: CAT 6 / CAT 6A
- Type: UTP or STP (unshielded or shielded cable)
- Connection: IDC terminals
- Bandwidth: 600 MHz (suitable for up to 10 Gbps)
- Conductor size: AWG 22–24 (solid), copper or CCA
- Dimensions: 83.7 x 37 x 23 mm
