Serial display 7-seg 4-digit 74HC595
Art no: 41016224
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description

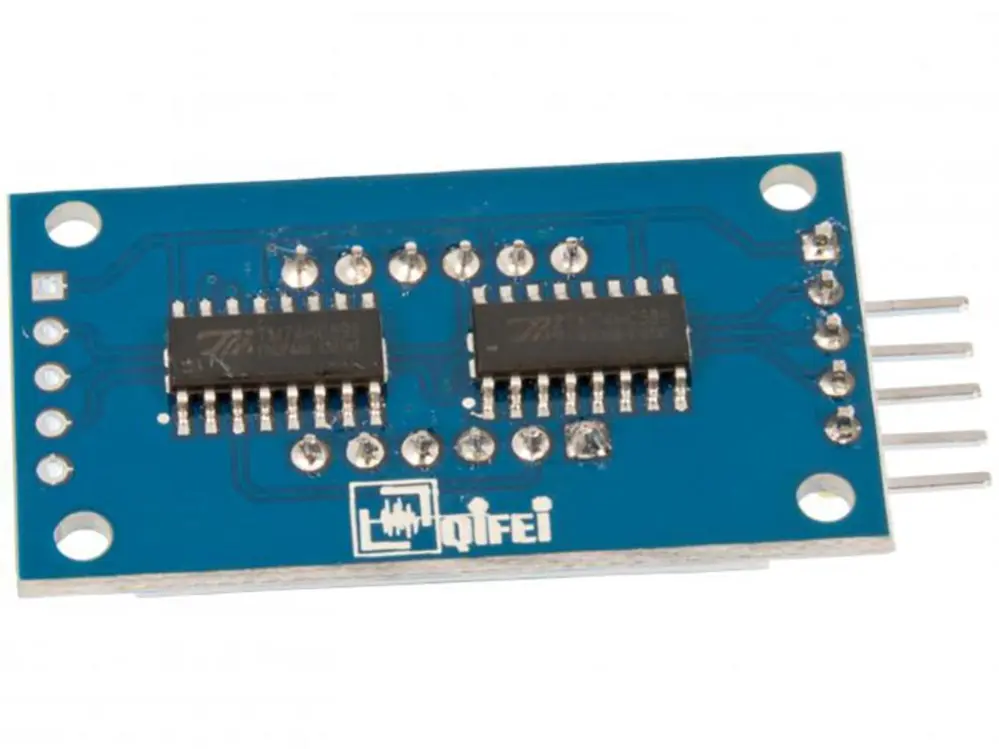

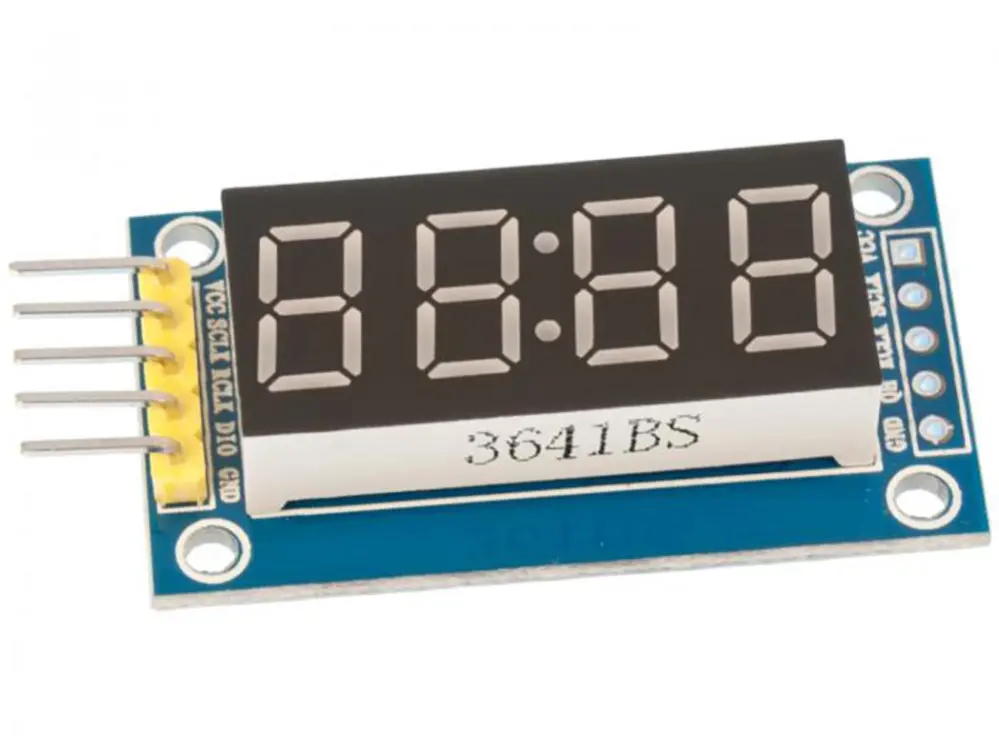

4-digit 7-segment LED module with serial interface. The module has a red 7-segment display with 4 digits and two 74HC595 shift registers on the back. The shift registers communicates via a SPI and requires only three pins to function, clock, latch and data, which makes the display very easy to use with a microcontroller.
* Dimensions: 40.0 x 22.1 x 10.6mm
* Mounting holes: ø2.5mm c-c 34.0 x 17.2mm
* Display size: 30.2 x 14.0mm
* Character height: 9.2mm
* Character color: red
* Dimensions: 40.0 x 22.1 x 10.6mm
* Mounting holes: ø2.5mm c-c 34.0 x 17.2mm
* Display size: 30.2 x 14.0mm
* Character height: 9.2mm
* Character color: red
Product information
SKU:
41016224
