Product description

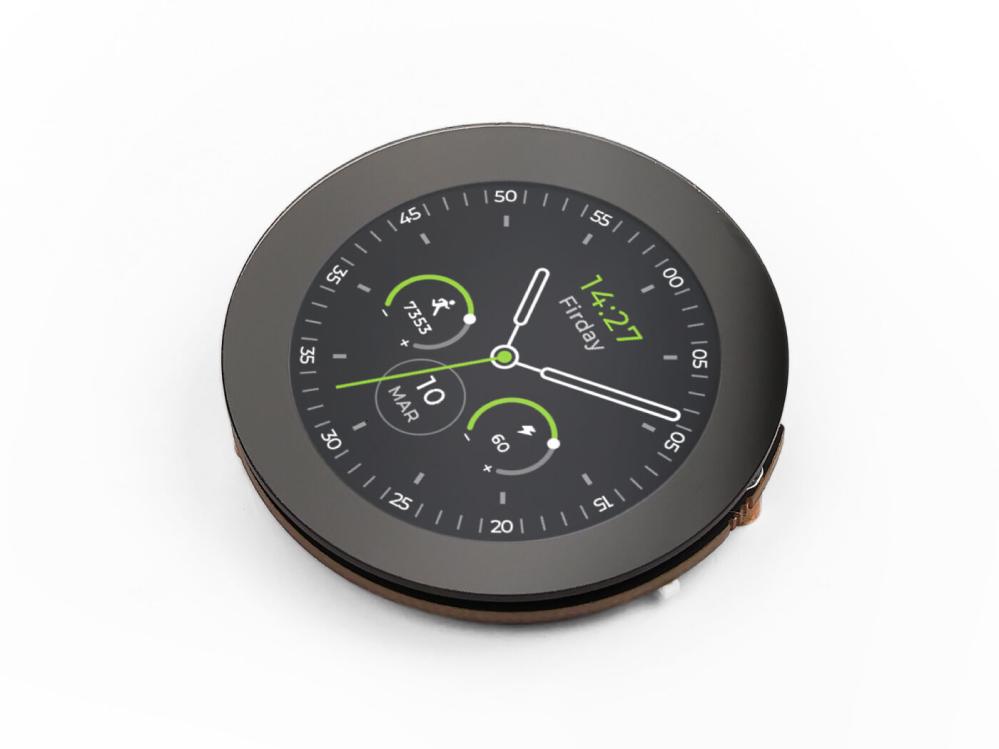

Round display for Seeed Studio XIAO development boards. Compact round touchscreen module for the Seeed Studio XIAO series. The module features a 1.28-inch round display with 240 x 240 pixel resolution and 65K colors, making it suitable for small HMI interfaces, smart home projects, and other compact builds.

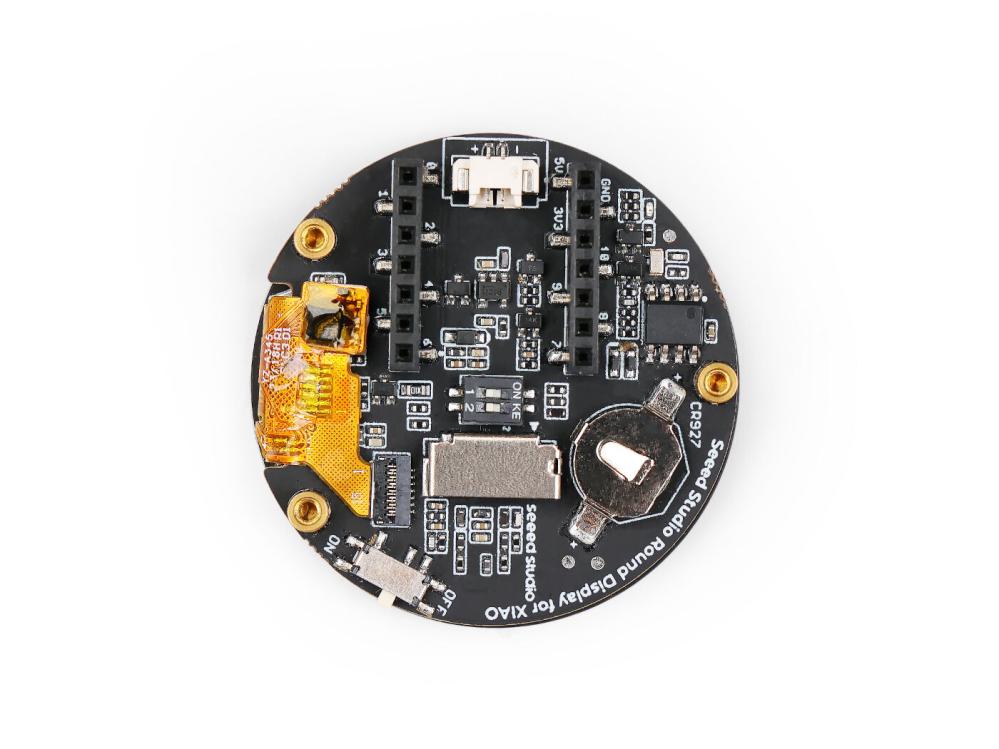

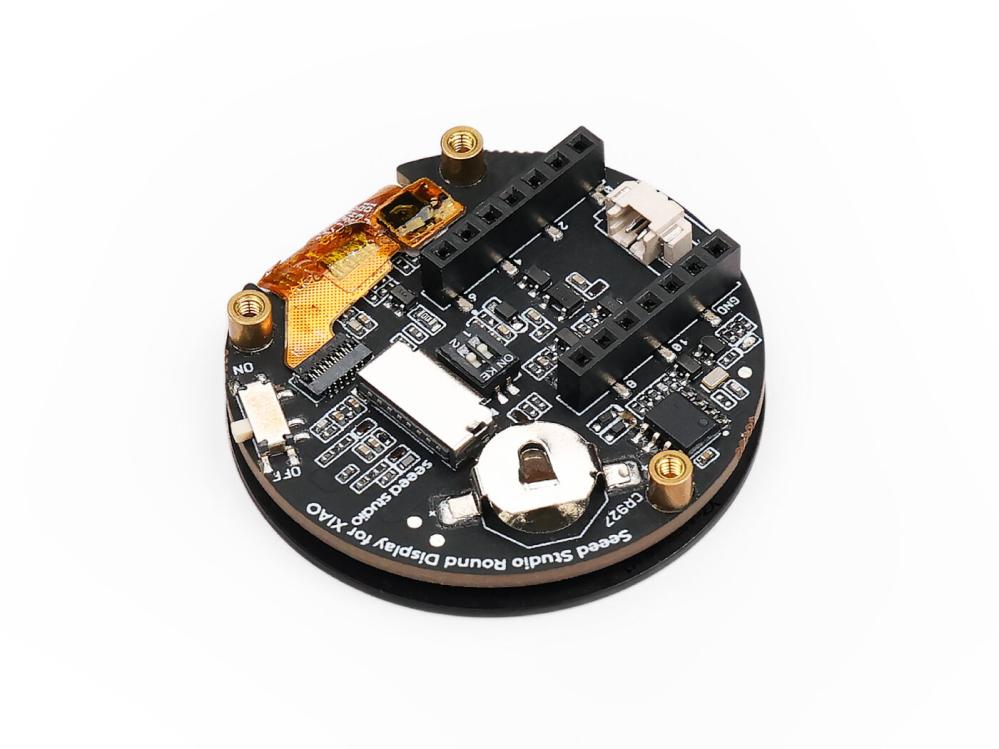

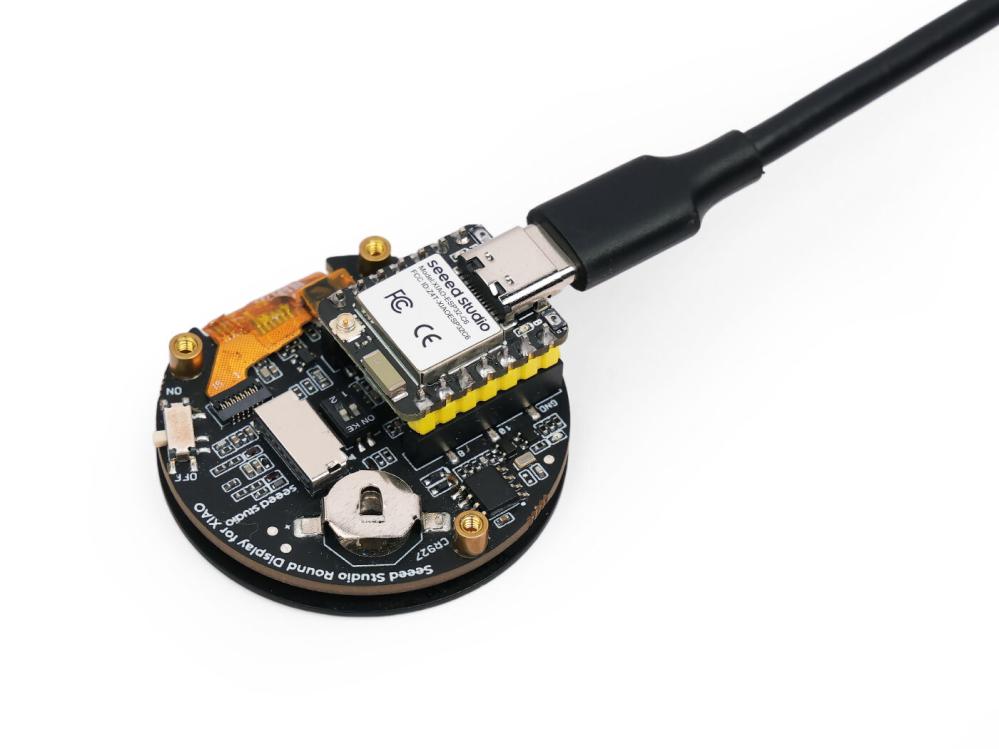

The board connects directly to the XIAO form factor and includes several integrated functions, including RTC, battery charging circuit, and MicroSD card slot.
Specifications:
- Product: Round Display for Seeed Studio XIAO
- Display size: 1.28 inch
- Display type: Round touchscreen
- Resolution: 240 x 240 pixels
- Colors: 65K
- Supply voltage via USB-C: 5V @ 35 mA
- LiPo battery connector: 3.7V (JST 1.25mm)
- Memory card: MicroSD card slot, up to 32 GB

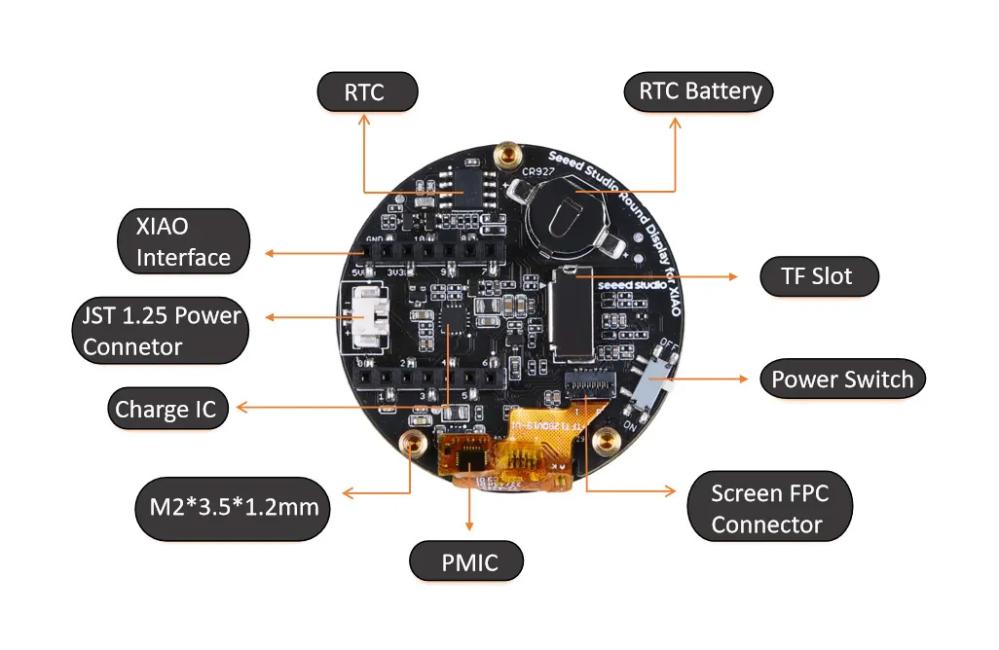

- Integrated functions: RTC, battery charging circuit, TF card slot
- Compatibility: Seeed Studio XIAO series
- Battery holder for RTC: For 3V CR927 battery (not included)
- Dimensions: ø39 mm
