Product description

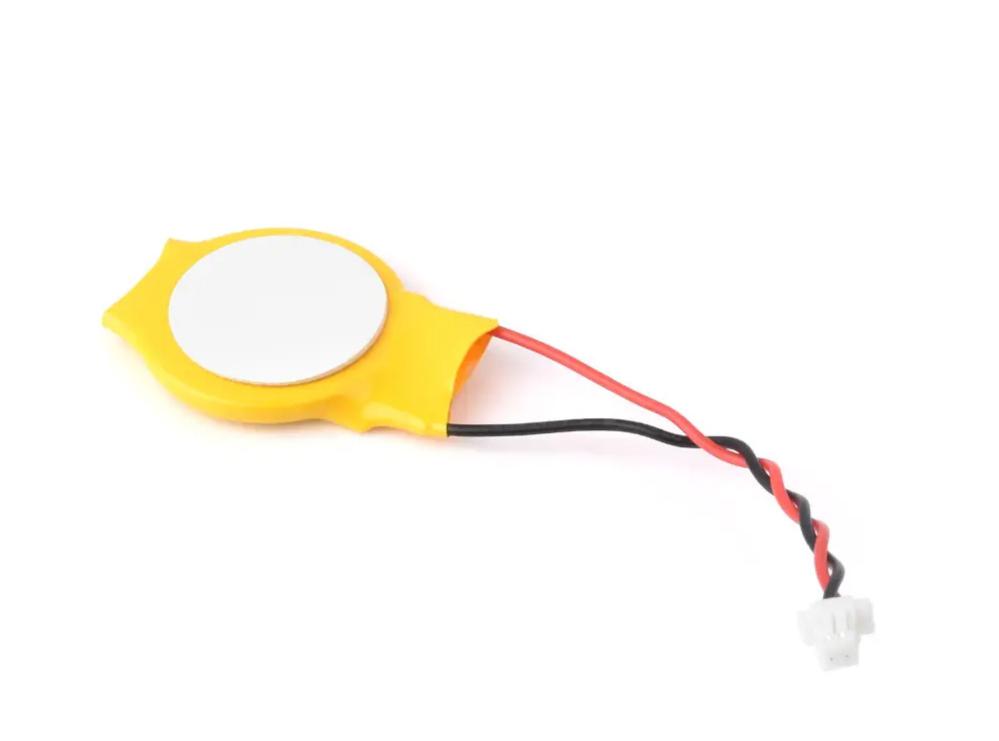

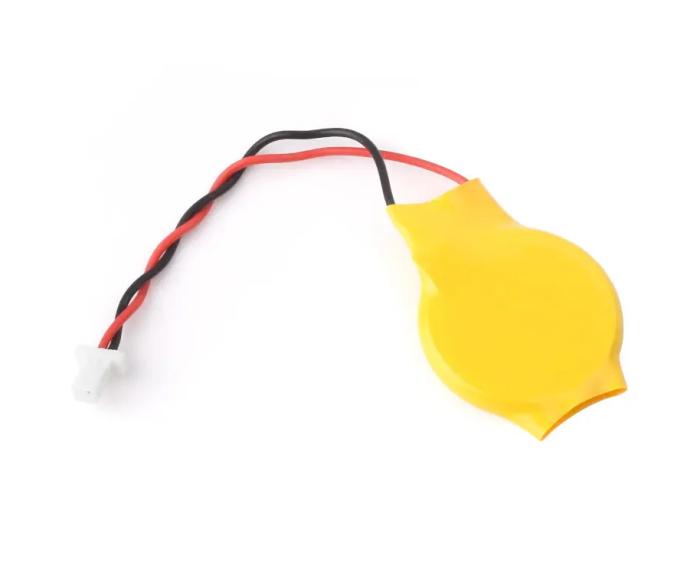

LIR2025 - Rechargeable coin cell battery for the RTC function (real-time clock) used in development boards such as Raspberry Pi 5. The battery is used together with the integrated RTC function in devices such as Raspberry Pi 5 and ensures that the system time is maintained without external power supply. This is particularly useful in applications where accurate timestamping is required, such as data logging, network applications, and embedded systems.

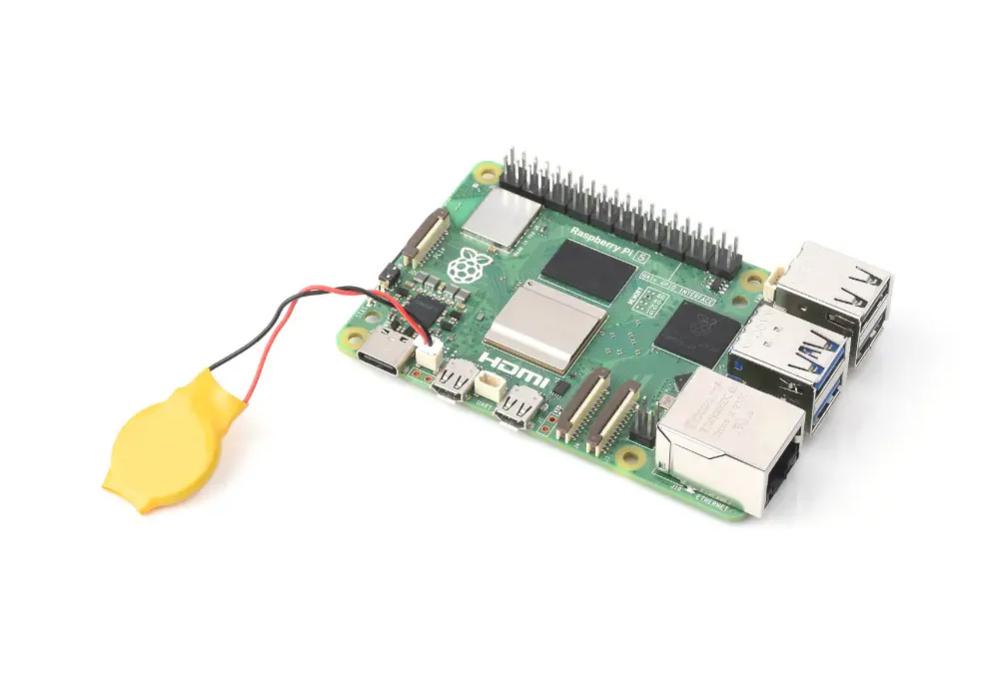

Installation is simple thanks to the pre-mounted 2-pin connector and included self-adhesive tape for flexible mounting inside an enclosure. The battery is automatically charged via Raspberry Pi 5 when the system is connected to power.
Specifications:
- Compatibility: Development boards such as Raspberry Pi 5
- Battery type: LIR-2025 Li-Ion (rechargeable)
- Dimensions: ø20x2.5mm
- Capacity: 45mAh
- Nominal voltage: 3.6V
- Max charging voltage: 4.2V
- Cutoff voltage: 2.75V
- Connection: 2-pin (1.25mm) connector (compatible with Raspberry Pi 5 BAT header)
- Cable length: 50mm
- Mounting: Self-adhesive tape
- Function: Real-time clock (RTC) backup
