Product description

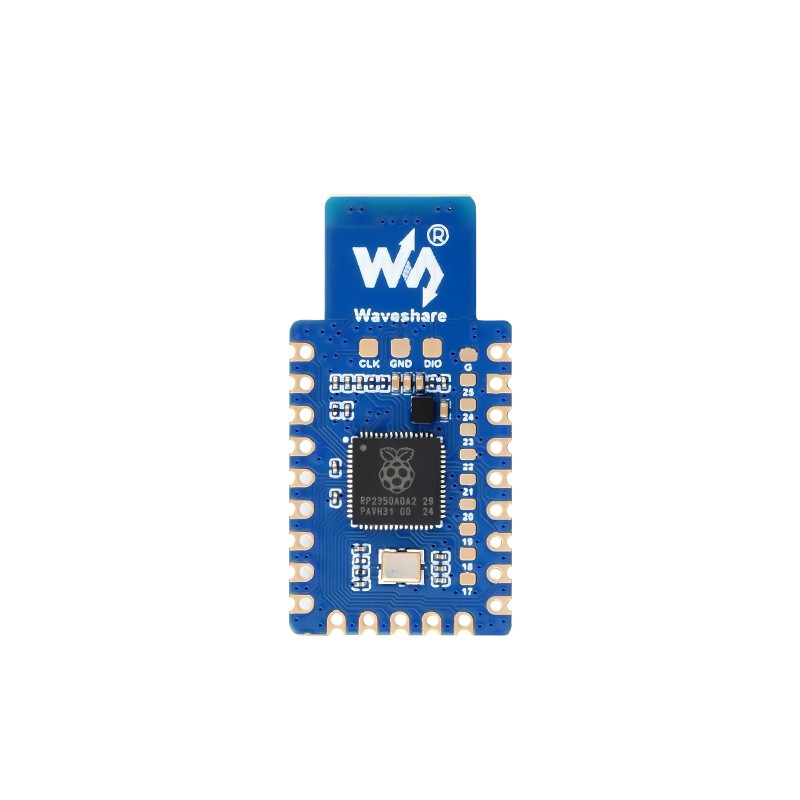

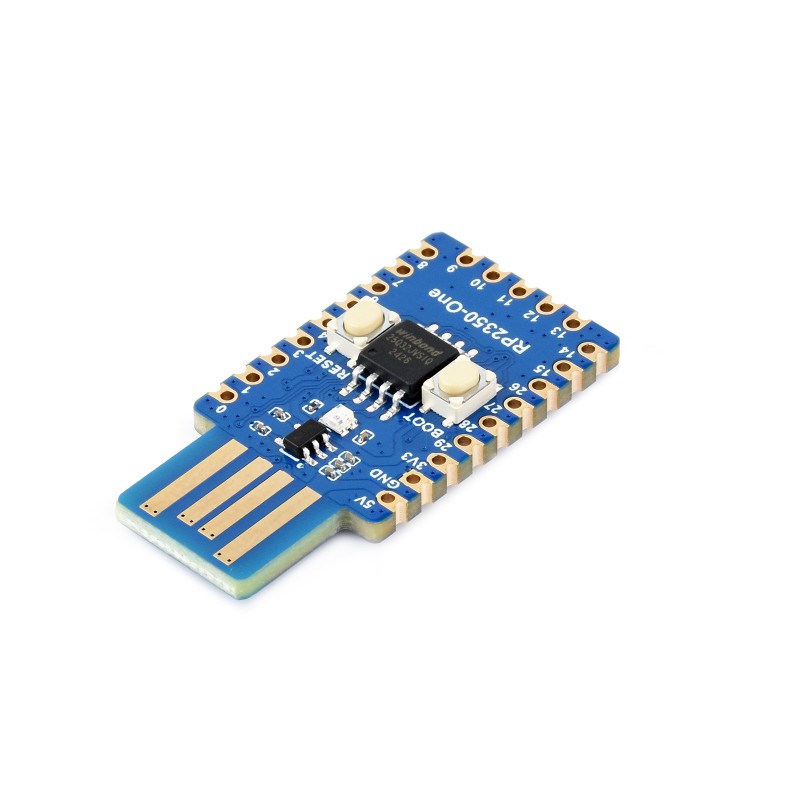

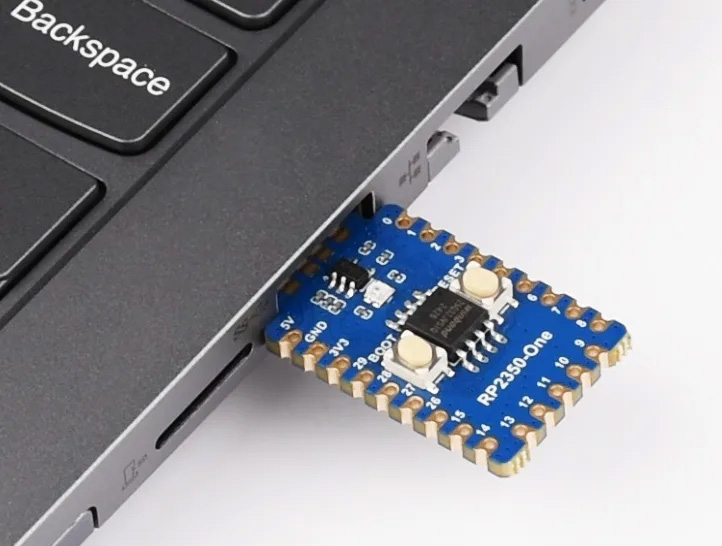

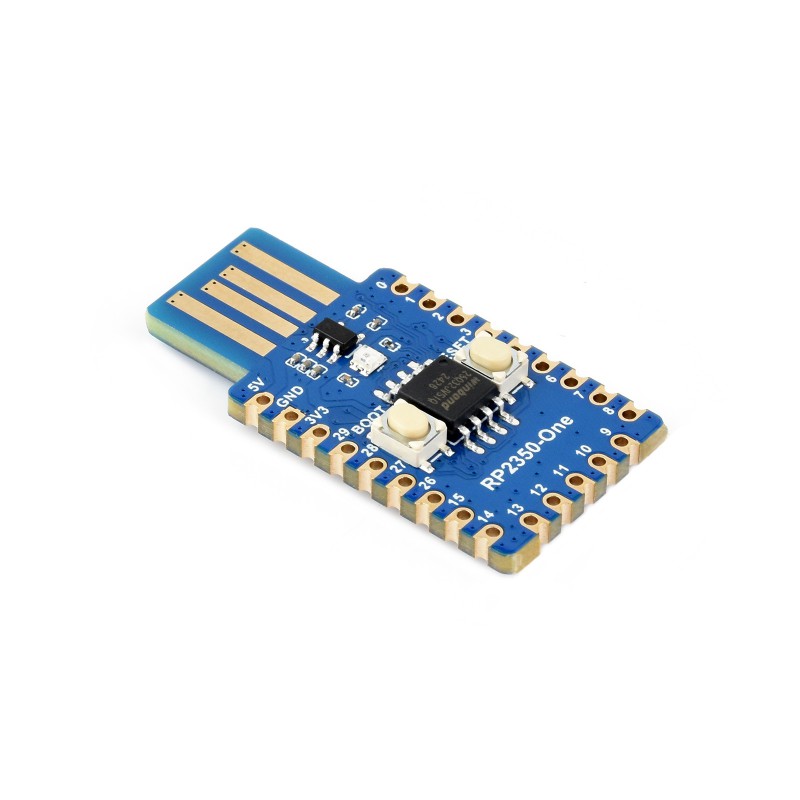

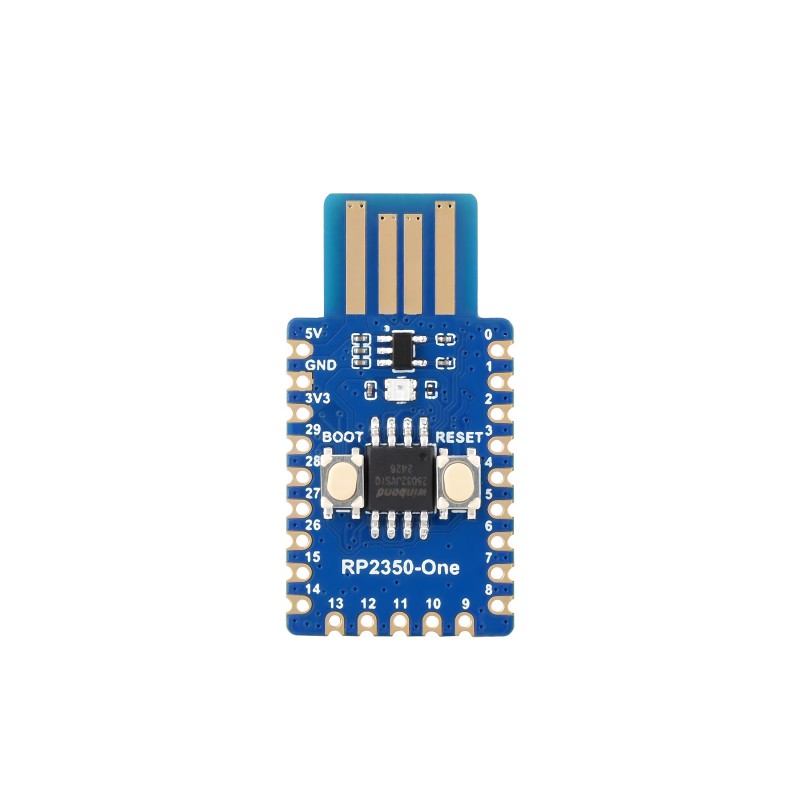

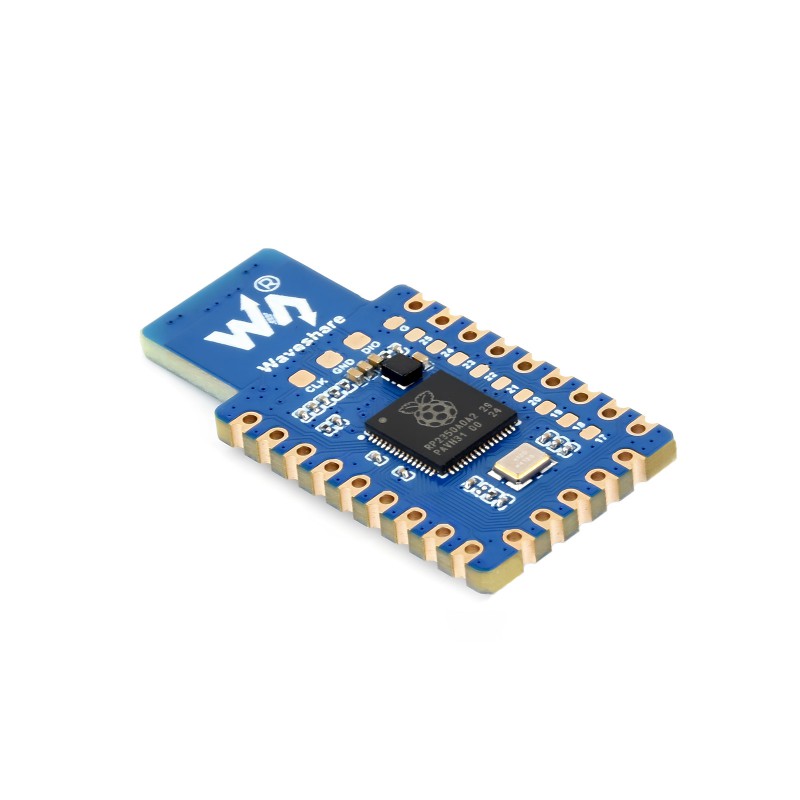

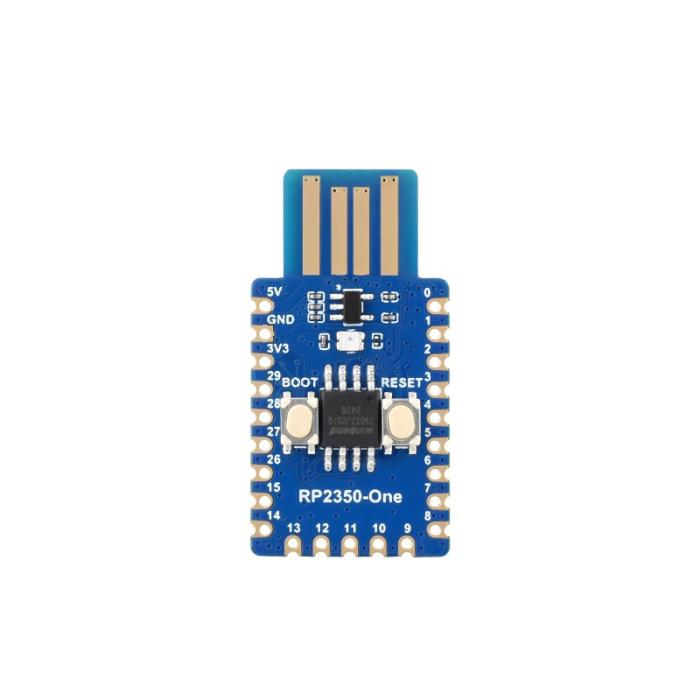

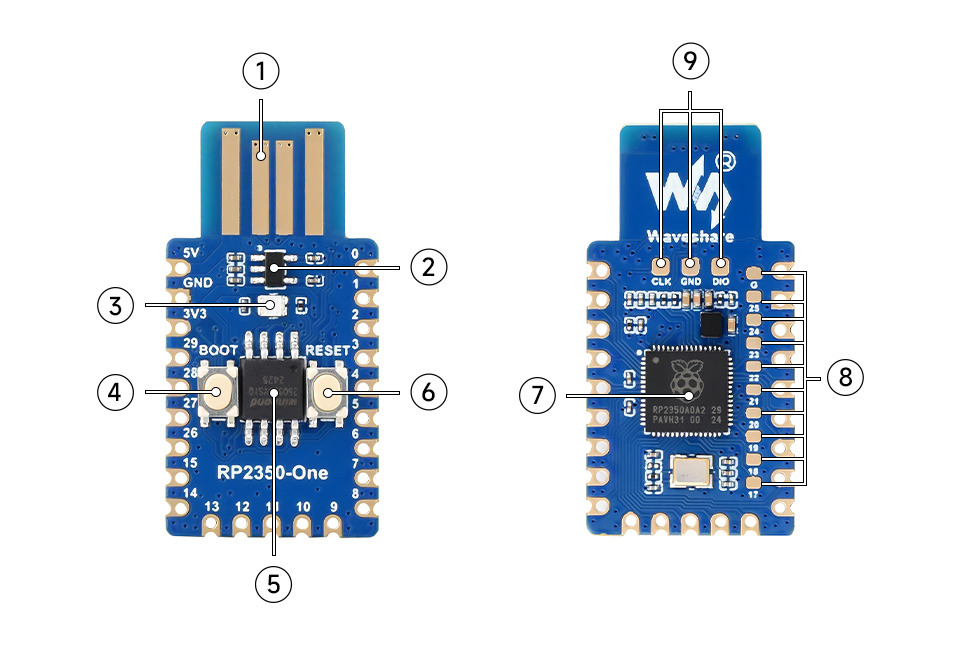

RP2350-One is a small development board designed in the form of a USB stick. The board is based on Raspberry Pi RP2350A, making it quick and easy to get started. It features an integrated USB-A connector directly on the PCB, enabling plug-and-play without the need for a cable.
The core is based on the RP2350 microcontroller with a dual-architecture design, supporting both Arm Cortex-M33 and RISC-V Hazard3. This provides flexibility during development and the ability to choose architecture depending on the application. The clock frequency can reach up to 150 MHz, with 520 KB of built-in SRAM and 4 MB of flash memory.
The board is designed to support pin header mounting (not included). RP2350-One supports USB 1.1 in both host and device modes, as well as drag-and-drop programming via USB, simplifying the development process. Low-power modes and built-in features such as a temperature sensor and PIO make the board suitable for energy-efficient and advanced applications.
Specifications:
- Microcontroller: RP2350A (Raspberry Pi)
- Processor: Dual-core Arm Cortex-M33 + dual-core Hazard3 RISC-V
- Clock frequency: up to 150 MHz
- Memory: 520 KB SRAM
- Flash memory: 4 MB
- USB: integrated USB-A (PCB), host/device

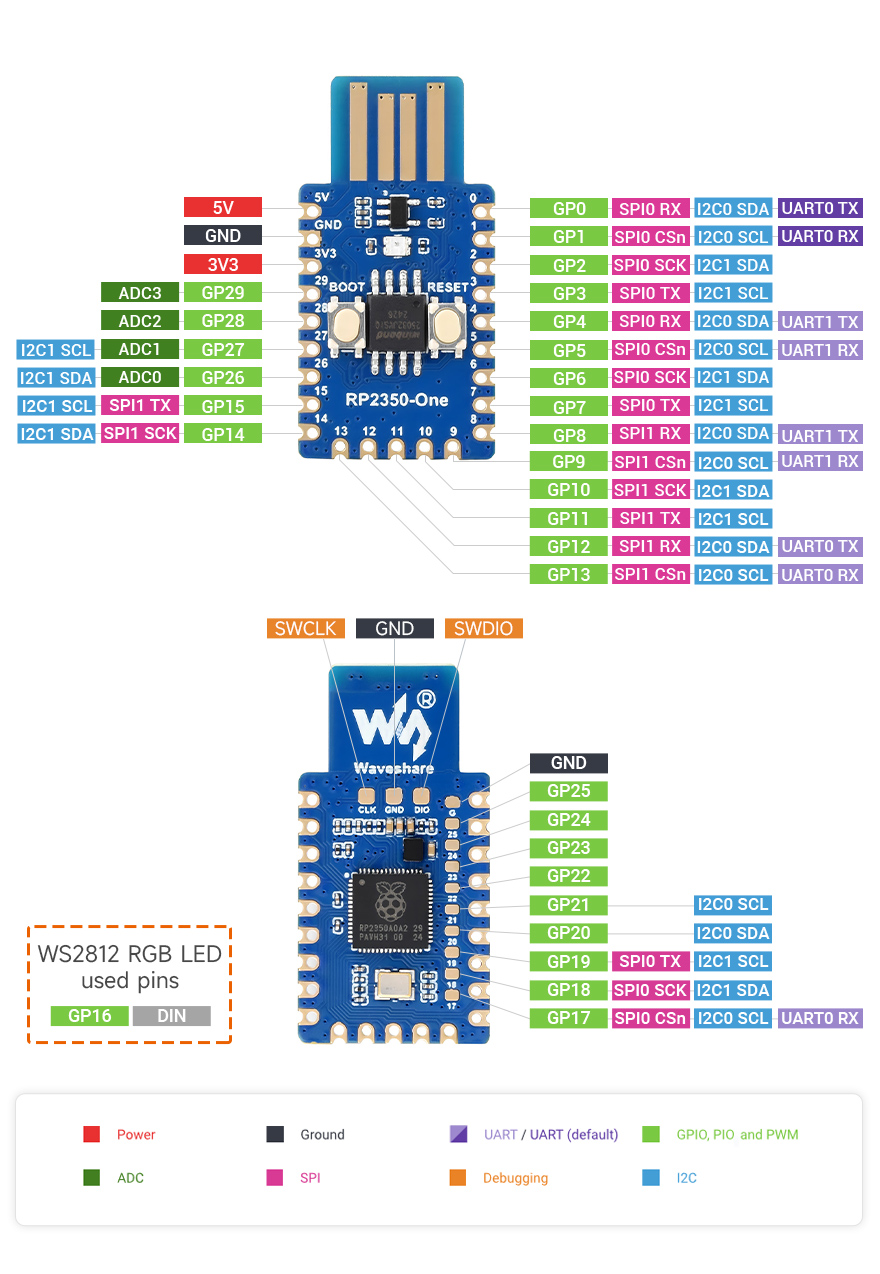

- GPIO: 20 pins via headers + 9 via solder pads
- Interfaces: SPI, I2C, UART
- ADC: 12-bit
- PWM: multiple channels
- PIO: 12 state machines
- Other: temperature sensor and low-power modes

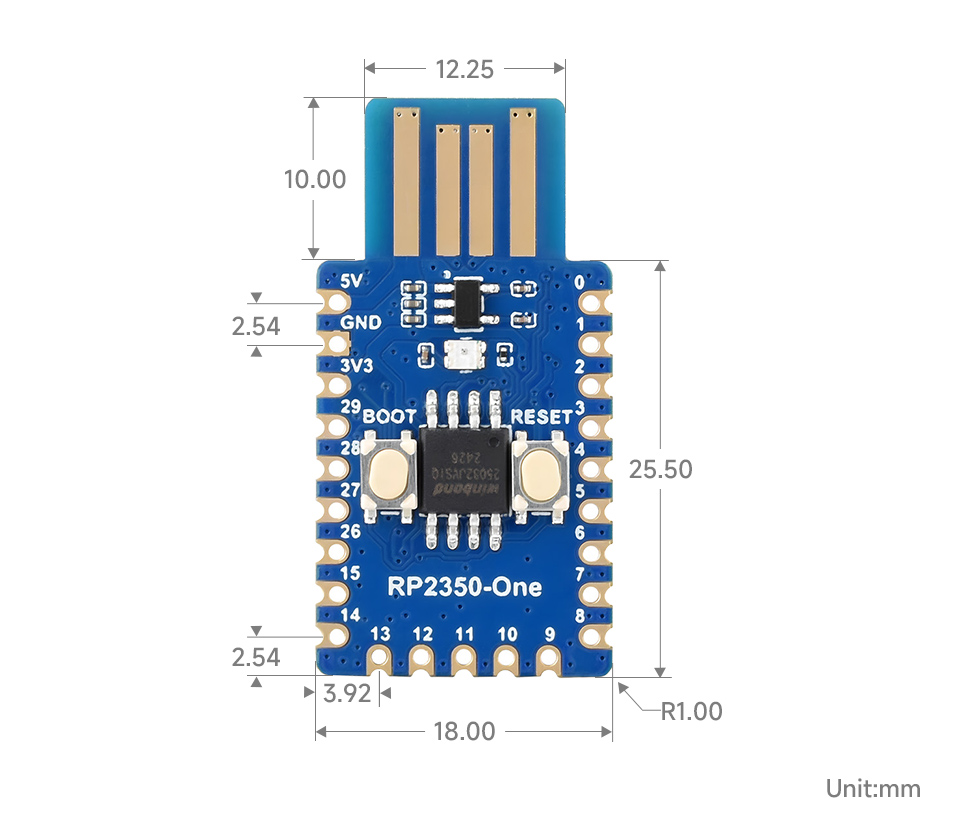

- Form factor: compact module with castellated edges and USB-A connector (PCB connector)
